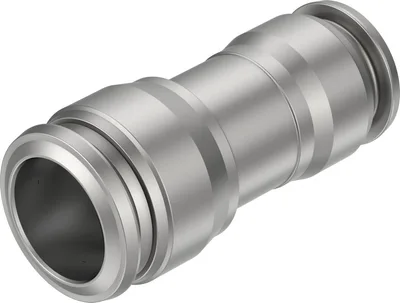

Festo NPQR-D-Q16-Q12
Plug. Very easy to clean thanks to chamfered O-ring and fewer edges where dirt can accumulate. Optimal price/performance ratio, perfect for applications from a single source. Maximum corrosion resistance (corrosion resistance class CRC 4 to Festo standard 940 070) and chemical resistance. High temperature resistance. Stainless steel. Operating media: compressed air, vacuum, (water). Straight shape, L-shape, T-shape, Y-shape, push-in bulkhead connector
SizeStandard
Nominal size11
Tubing insertion depth22.5, 23.5
Note on the tubing insertion depthØ12 depth 22.5 mm, Ø16 depth 23.5 mm
Mounting positionAny
DesignStraight design
About This Product
Plug. Very easy to clean thanks to chamfered O-ring and fewer edges where dirt can accumulate. Optimal price/performance ratio, perfect for applications from a single source. Maximum corrosion resistance (corrosion resistance class CRC 4 to Festo standard 940 070) and chemical resistance. High temperature resistance. Stainless steel. Operating media: compressed air, vacuum, (water). Straight shape, L-shape, T-shape, Y-shape, push-in bulkhead connector
Festo NPQR-D-Q16-Q12
- Genuine, certified Festo product
- Fast sourcing through a worldwide supply network
- Product selection and compatibility support from our technical team
- Equivalent and alternative product suggestions
- Quotation and lead time tailored to your request
Specifications
SizeStandard
Nominal size11
Tubing insertion depth22.5, 23.5
Note on the tubing insertion depthØ12 depth 22.5 mm, Ø16 depth 23.5 mm
Mounting positionAny
DesignStraight design
Size of pack1
DesignPush-pull principle
Symbol00997424
Operating pressure complete temperature range-0.095, 1.2
Operating pressure complete temperature range-0.95, 12
Operating pressure complete temperature range-13.775, 174
Note on operating pressureWater: max. 0.7 MPa at 0 - 80 °C
Certificate issuing authorityNSF C0556009
Operating mediumCompressed air to ISO 8573-1:2010 [7:-:-], Water (liquid, ice-free)
Note on operating and pilot mediumLubricated operation possible
Corrosion resistance class CRC4 - Very high corrosion stress
LABS (PWIS) conformityVDMA24364-B2-L
Suitability for the production of Li-ion batteriesSuitable for battery production with reduced Cu/Zn/Ni values (F1a)
Cleanroom suitability, measured according to ISO 14644-14Class 4 according to ISO 14644-1
Suitable for use with foodSee declaration of conformity, NSF/ANSI 169
Ambient temperature-5, 150
Note on ambient temperatureWith PUN-H: -10 °C - 60 °C
Product weight63.7
Pneumatic connection, port 1For tubing outer diameter of 16 mm
Pneumatic connection, port 2For tubing outer diameter of 12 mm
Colour of release ringSilver
Note on materialsRoHS compliant
Material housingHigh-alloy stainless steel
Guard ring materialHigh-alloy stainless steel
Material release ringHigh-alloy stainless steel
Material tubing sealFluoro rubber
Material tubing clamp componentHigh-alloy stainless steel
Thrust ring materialPPSU
Accessories 144
Genuine accessories that can be used with the Festo NPQR-D-Q16-Q12 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.
| Part no | Description | Compatible motors |
|---|---|---|
| PUN-CM-12-SW | Plastic tubing · Tubing | |
| PUN-12X2-SI | Plastic tubing · Tubing | |
| PUN-16X2,5-SI | Plastic tubing · Tubing | |
| PAN-12X1,75-SI | Plastic tubing · Tubing | |
| PUN-12X2-BL | Plastic tubing · Tubing | |
| PUN-12X2-SW | Plastic tubing · Tubing | |
| PUN-16X2,5-BL | Plastic tubing · Tubing | |
| PUN-16X2,5-SW | Plastic tubing · Tubing | |
| PAN-V0-12X1,5-SW | Plastic tubing · Tubing | |
| PUN-12X2-RT | Plastic tubing · Tubing | |
| PUN-16X2,5-RT | Plastic tubing · Tubing | |
| PUN-12X2-GE | Plastic tubing · Tubing | |
| PUN-16X2,5-GE | Plastic tubing · Tubing | |
| PUN-12X2-GN | Plastic tubing · Tubing | |
| PUN-16X2,5-GN | Plastic tubing · Tubing | |
| PLN-12X1,75-NT | Plastic tubing · Tubing | |
| PLN-12X1,75-SW | Plastic tubing · Tubing | |
| PFAN-12X1,75-NT | Plastic tubing · Tubing | |
| PUN-H-12X2-NT | Plastic tubing · Tubing | |
| PUN-H-16X2,5-NT | Plastic tubing · Tubing | |
| PUN-H-12X2-BL | Plastic tubing · Tubing | |
| PUN-H-16X2,5-BL | Plastic tubing · Tubing | |
| PUN-H-12X2-SW | Plastic tubing · Tubing | |
| PUN-H-16X2,5-SW | Plastic tubing · Tubing | |
| PUN-12X2-S-1-BL | Spiral plastic tubing · Tubing | |
| PUN-12X2-S-2-BL | Spiral plastic tubing · Tubing | |
| PUN-12X2-S-6-BL | Spiral plastic tubing · Tubing | |
| PUN-12X2-S-1-SW | Spiral plastic tubing · Tubing | |
| PUN-12X2-S-2-SW | Spiral plastic tubing · Tubing | |
| PUN-12X2-S-6-SW | Spiral plastic tubing · Tubing | |
| PUN-12X2-S-1-DUO-BS | DUO spiral plastic tubing · Tubing | |
| PUN-12X2-S-2-DUO-BS | DUO spiral plastic tubing · Tubing | |
| PUN-12X2-S-6-DUO-BS | DUO spiral plastic tubing · Tubing | |
| PAN-V0-12X1,5-BL | Plastic tubing · Tubing | |
| PAN-V0-12X1,5-GN | Plastic tubing · Tubing | |
| PAN-V0-12X1,5-RT | Plastic tubing · Tubing | |
| PAN-V0-12X1,5-WS | Plastic tubing · Tubing | |
| PAN-V0-12X1,5-GE | Plastic tubing · Tubing | |
| PUN-12X2-SI-200 | Plastic tubing · Tubing | |
| PUN-16X2,5-SI-100 | Plastic tubing · Tubing | |
| PUN-12X2-BL-200 | Plastic tubing · Tubing | |
| PUN-16X2,5-BL-100 | Plastic tubing · Tubing | |
| PEN-12X1,75-SW | Plastic tubing · Tubing | |
| PEN-16X2,5-SW | Plastic tubing · Tubing | |
| PEN-12X1,75-NT | Plastic tubing · Tubing | |
| PEN-16X2,5-NT | Plastic tubing · Tubing | |
| PAN-12X1,75-NT | Plastic tubing · Tubing | |
| PEN-12X1,75-SW-200 | Plastic tubing · Tubing | |
| PEN-16X2,5-SW-100 | Plastic tubing · Tubing | |
| PEN-12X1,75-BL-200 | Plastic tubing · Tubing | |
| PEN-16X2,5-BL-100 | Plastic tubing · Tubing | |
| PEN-12X1,75-SI-200 | Plastic tubing · Tubing | |
| PEN-16X2,5-SI-100 | Plastic tubing · Tubing | |
| PEN-12X1,75-BL | Plastic tubing · Tubing | |
| PEN-16X2,5-BL | Plastic tubing · Tubing | |
| PEN-12X1,75-SI | Plastic tubing · Tubing | |
| PEN-16X2,5-SI | Plastic tubing · Tubing | |
| PEN-12X1,75-GN | Plastic tubing · Tubing | |
| PEN-16X2,5-GN | Plastic tubing · Tubing | |
| PEN-12X1,75-RT | Plastic tubing · Tubing | |
| PEN-16X2,5-RT | Plastic tubing · Tubing | |
| PEN-12X1,75-GE | Plastic tubing · Tubing | |
| PEN-16X2,5-GE | Plastic tubing · Tubing | |
| PAN-12X1,75-SI-200 | Plastic tubing · Tubing | |
| PAN-12X1,75-BL-200 | Plastic tubing · Tubing | |
| PAN-12X1,75-SW-200 | Plastic tubing · Tubing | |
| PAN-12X1,75-BL | Plastic tubing · Tubing | |
| PAN-12X1,75-SW | Plastic tubing · Tubing | |
| PAN-12X1,75-GN | Plastic tubing · Tubing | |
| PAN-12X1,75-RT | Plastic tubing · Tubing | |
| PAN-12X1,75-GE | Plastic tubing · Tubing | |
| PUN-12X2-SW-200 | Plastic tubing · Tubing | |
| PUN-16X2,5-SW-100 | Plastic tubing · Tubing | |
| PLN-12X1,75-BL | Plastic tubing · Tubing | |
| PLN-12X1,75-SI | Plastic tubing · Tubing | |
| PLN-12X1,75-RT | Plastic tubing · Tubing | |
| PUN-H-12X2-SW-200 | Plastic tubing · Tubing | |
| PUN-H-16X2,5-SW-100 | Plastic tubing · Tubing | |
| PUN-H-12X2-BL-200 | Plastic tubing · Tubing | |
| PUN-H-16X2,5-BL-100 | Plastic tubing · Tubing | |
| PUN-H-12X2-NT-200 | Plastic tubing · Tubing | |
| PUN-H-16X2,5-NT-100 | Plastic tubing · Tubing | |
| PUN-H-12X2-SI-200 | Plastic tubing · Tubing | |
| PUN-H-16X2,5-SI-100 | Plastic tubing · Tubing | |
| PUN-H-12X2-SI | Plastic tubing · Tubing | |
| PUN-H-16X2,5-SI | Plastic tubing · Tubing | |
| PUN-H-12X2-RT | Plastic tubing · Tubing | |
| PUN-H-16X2,5-RT | Plastic tubing · Tubing | |
| PUN-H-12X2-GN | Plastic tubing · Tubing | |
| PUN-H-16X2,5-GN | Plastic tubing · Tubing | |
| PUN-H-12X2-GE | Plastic tubing · Tubing | |
| PUN-H-16X2,5-GE | Plastic tubing · Tubing | |
| PUN-V0-12X2-SW-C | Plastic tubing · Tubing | |
| PUN-V0-12X2-BL-C | Plastic tubing · Tubing | |
| PUN-V0-12X2-GN-C | Plastic tubing · Tubing | |
| PUN-V0-12X2-RT-C | Plastic tubing · Tubing | |
| PUN-V0-12X2-WS-C | Plastic tubing · Tubing | |
| PUN-V0-12X2-GE-C | Plastic tubing · Tubing | |
| PUN-V0-12X2-BR-C | Plastic tubing · Tubing | |
| PUN-V0-14X2-SW-C | Plastic tubing · Tubing | |
| PUN-V0-14X2-BL-C | Plastic tubing · Tubing | |
| PUN-H-14X2-BL | Plastic tubing · Tubing | |
| PUN-H-14X2-SW | Plastic tubing · Tubing | |
| PUN-H-14X2-NT | Plastic tubing · Tubing | |
| PUN-H-12X2-TBL | Plastic tubing · Tubing | |
| PUN-H-12X2-TBL-200 | Plastic tubing · Tubing | |
| PUN-H-12X2-TSW | Plastic tubing · Tubing | |
| PUN-H-12X2-TSW-200 | Plastic tubing · Tubing | |
| PUN-H-12X2-TRT | Plastic tubing · Tubing | |
| PUN-H-12X2-TRT-200 | Plastic tubing · Tubing | |
| PUN-H-12X2-TGN | Plastic tubing · Tubing | |
| PUN-H-12X2-TGN-200 | Plastic tubing · Tubing | |
| PUN-H-12X2-TGE | Plastic tubing · Tubing | |
| PUN-H-12X2-TGE-200 | Plastic tubing · Tubing | |
| PTFEN-12X2-NT | Plastic tubing · Tubing | |
| PTFEN-16X2,5-NT-25 | Plastic tubing · Tubing | |
| PUN-H-F-12X2-NT | Plastic tubing · Tubing | |
| PUN-H-F-12X2-RT | Plastic tubing · Tubing | |
| PUN-H-F-12X2-BL | Plastic tubing · Tubing | |
| PUN-H-F-12X2-TBL | Plastic tubing · Tubing | |
| PUN-H-F-12X2-GN | Plastic tubing · Tubing | |
| PUN-H-F-12X2-GE | Plastic tubing · Tubing | |
| PUN-H-F-12X2-SW | Plastic tubing · Tubing | |
| PUN-H-F-14X2-NT | Plastic tubing · Tubing | |
| PUN-H-F-14X2-RT | Plastic tubing · Tubing | |
| PUN-H-F-14X2-BL | Plastic tubing · Tubing | |
| PUN-H-F-14X2-SW | Plastic tubing · Tubing | |
| PUN-H-F-16X2,5-NT | Plastic tubing · Tubing | |
| PUN-H-F-16X2,5-RT | Plastic tubing · Tubing | |
| PUN-H-F-16X2,5-BL | Plastic tubing · Tubing | |
| PUN-H-F-16X2,5-TBL | Plastic tubing · Tubing | |
| PUN-H-F-16X2,5-GN | Plastic tubing · Tubing | |
| PUN-H-F-16X2,5-GE | Plastic tubing · Tubing | |
| PUN-H-F-16X2,5-SW | Plastic tubing · Tubing | |
| PUN-H-SF-12X2,3-SW | Plastic tubing · Tubing | |
| PUN-H-SF-12X2,3-BL | Plastic tubing · Tubing | |
| PUN-H-SF-14X2,7-SW | Plastic tubing · Tubing | |
| PUN-H-SF-14X2,7-BL | Plastic tubing · Tubing | |
| PUN-H-SF-16X3,1-SW | Plastic tubing · Tubing | |
| PUN-H-SF-16X3,1-BL | Plastic tubing · Tubing | |
| PUN-H-12X2-BL-25 | Plastic tubing · Tubing | |
| PUN-H-12X2-SW-25 | Plastic tubing · Tubing | |
| PUN-H-12X2-RT-25 | Plastic tubing · Tubing | |
| PUN-H-12X2-TBL-25 | Plastic tubing · Tubing |
