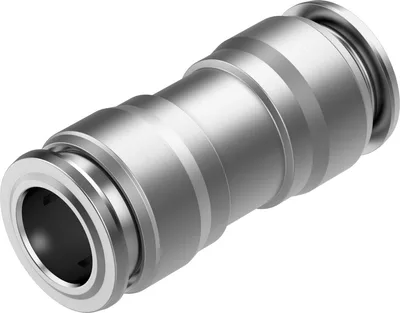

Festo NPQR-D-Q10-E

Photo may not represent actual item. Refer to name and product specs for all details.

Festo NPQR-D-Q10-E

Plug. Very easy to clean thanks to chamfered O-ring and fewer edges where dirt can accumulate. Optimal price/performance ratio, perfect for applications from a single source. Maximum corrosion resistance (corrosion resistance class CRC 4 to Festo standard 940 070) and chemical resistance. High temperature resistance. Stainless steel. Operating media: compressed air, vacuum, (water). Straight shape, L-shape, T-shape, Y-shape, push-in bulkhead connector

FestoMFR # NPQR-D-Q10-ESKU # YLS22BAW2LAA6P2
SizeStandard
Nominal size9
Tubing insertion depth19.35
Mounting positionAny
DesignStraight design
Size of pack1
Share
Have questions?Chat on WhatsApp

About This Product

Plug. Very easy to clean thanks to chamfered O-ring and fewer edges where dirt can accumulate. Optimal price/performance ratio, perfect for applications from a single source. Maximum corrosion resistance (corrosion resistance class CRC 4 to Festo standard 940 070) and chemical resistance. High temperature resistance. Stainless steel. Operating media: compressed air, vacuum, (water). Straight shape, L-shape, T-shape, Y-shape, push-in bulkhead connector

Festo NPQR-D-Q10-E

  • Genuine, certified Festo product
  • Fast sourcing through a worldwide supply network
  • Product selection and compatibility support from our technical team
  • Equivalent and alternative product suggestions
  • Quotation and lead time tailored to your request

Specifications

SizeStandard
Nominal size9
Tubing insertion depth19.35
Mounting positionAny
DesignStraight design
Size of pack1
DesignPush-pull principle
Symbol00997424
Operating pressure complete temperature range-0.095, 1.6
Operating pressure complete temperature range-0.95, 16
Operating pressure complete temperature range-13.775, 232
Note on operating pressureWater: max. 0.7 MPa at 0 - 80 °C
Certificate issuing authorityNSF C0556009
Operating mediumCompressed air to ISO 8573-1:2010 [7:-:-], Water (liquid, ice-free)
Note on operating and pilot mediumLubricated operation possible
Corrosion resistance class CRC4 - Very high corrosion stress
LABS (PWIS) conformityVDMA24364-B2-L
Suitability for the production of Li-ion batteriesSuitable for battery production with reduced Cu/Zn/Ni values (F1a)
Cleanroom suitability, measured according to ISO 14644-14Class 4 according to ISO 14644-1
Suitable for use with foodSee declaration of conformity, NSF/ANSI 169
Ambient temperature-20, 150
Product weight32.4
Pneumatic connection, port 1For tubing outer diameter of 10 mm
Pneumatic connection, port 2For tubing outside diameter of 10 mm
Colour of release ringSilver
Note on materialsRoHS compliant
Material housingHigh-alloy stainless steel
Guard ring materialHigh-alloy stainless steel
Material release ringHigh-alloy stainless steel
Material tubing sealFluoro rubber
Material tubing clamp componentHigh-alloy stainless steel
Thrust ring materialPPSU

Accessories 103

Genuine accessories that can be used with the Festo NPQR-D-Q10-E motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part noDescriptionCompatible motors
PFAN-10X1,5-NTPlastic tubing · Tubes
PUN-10X1,5-SG-2,4-BL-1/4 Spiral plastic tubing · Tubing
PUN-10X1,5-SG-4,8-BL-1/4 Spiral plastic tubing · Tubing
PUN-10X1,5-SG-6-BL-1/4 Spiral plastic tubing · Tubing
PUN-CM-10-SWPlastic tubing · Tubing
PAN-V0-10X1,25-BLPlastic tubing · Tubing
PUN-10X1,5-SIPlastic tubing · Tubing
PAN-10X1,5-SIPlastic tubing · Tubing
PUN-10X1,5-DUO-SIDUO tubing · Tubing
PUN-10X1,5-BLPlastic tubing · Tubing
PUN-10X1,5-SWPlastic tubing · Tubing
PUN-10X1,5-DUO-BSDUO tubing · Tubing
PAN-V0-10X1,25-SWPlastic tubing · Tubing
PUN-10X1,5-RTPlastic tubing · Tubing
PUN-10X1,5-GEPlastic tubing · Tubing
PUN-10X1,5-GNPlastic tubing · Tubing
PLN-10X1,5-NTPlastic tubing · Tubing
PLN-10X1,5-SWPlastic tubing · Tubing
PUN-H-10X1,5-NTPlastic tubing · Tubing
PUN-H-10X1,5-BL Plastic tubing · Tubing
PUN-H-10X1,5-SWPlastic tubing · Tubing
PUN-H-10X1,5-DUODUO tubing · Tubing
PUN-10X1,5-S-1-BLSpiral plastic tubing · Tubing
PUN-10X1,5-S-2-BLSpiral plastic tubing · Tubing
PUN-10X1,5-S-6-BLSpiral plastic tubing · Tubing
PUN-10X1,5-S-1-SWSpiral plastic tubing · Tubing
PUN-10X1,5-S-2-SWSpiral plastic tubing · Tubing
PUN-10X1,5-S-6-SWSpiral plastic tubing · Tubing
PUN-10X1,5-S-1-DUO-BSDUO spiral plastic tubing · Tubing
PUN-10X1,5-S-2-DUO-BSDUO spiral plastic tubing · Tubing
PUN-10X1,5-S-6-DUO-BS DUO spiral plastic tubing · Tubing
PUN-V0-10X1,5-SWPlastic tubing · Tubing
PUN-V0-10X1,5-BLPlastic tubing · Tubing
PUN-V0-10X1,5-GNPlastic tubing · Tubing
PUN-V0-10X1,5-RTPlastic tubing · Tubing
PUN-V0-10X1,5-WSPlastic tubing · Tubing
PUN-V0-10X1,5-GEPlastic tubing · Tubing
PUN-V0-10X1,5-BRPlastic tubing · Tubing
PAN-V0-10X1,25-GNPlastic tubing · Tubing
PAN-V0-10X1,25-RTPlastic tubing · Tubing
PAN-V0-10X1,25-WSPlastic tubing · Tubing
PAN-V0-10X1,25-GEPlastic tubing · Tubing
PUN-10X1,5-SI-300Plastic tubing · Tubing
PUN-10X1,5-BL-300Plastic tubing · Tubing
PAN-R-10X1,9-SIHeavy-duty tubing · Tubing
PEN-10X1,5-SWPlastic tubing · Tubing
PEN-10X1,5-NTPlastic tubing · Tubing
PAN-10X1,5-NTPlastic tubing · Tubing
PEN-10X1,5-SW-300Plastic tubing · Tubing
PEN-10X1,5-BL-300Plastic tubing · Tubing
PEN-10X1,5-SI-300Plastic tubing · Tubing
PEN-10X1,5-BLPlastic tubing · Tubing
PEN-10X1,5-SIPlastic tubing · Tubing
PEN-10X1,5-GNPlastic tubing · Tubing
PEN-10X1,5-RTPlastic tubing · Tubing
PEN-10X1,5-GEPlastic tubing · Tubing
PAN-10X1,5-SI-300Plastic tubing · Tubing
PAN-10X1,5-BL-300Plastic tubing · Tubing
PAN-10X1,5-SW-300Plastic tubing · Tubing
PAN-10X1,5-BLPlastic tubing · Tubing
PAN-10X1,5-SWPlastic tubing · Tubing
PAN-10X1,5-GNPlastic tubing · Tubing
PAN-10X1,5-RTPlastic tubing · Tubing
PAN-10X1,5-GEPlastic tubing · Tubing
PUN-10X1,5-SW-300Plastic tubing · Tubing
PLN-10X1,5-BLPlastic tubing · Tubing
PLN-10X1,5-SIPlastic tubing · Tubing
PLN-10X1,5-RTPlastic tubing · Tubing
PUN-H-10X1,5-SW-300Plastic tubing · Tubing
PUN-H-10X1,5-BL-300Plastic tubing · Tubing
PUN-H-10X1,5-NT-300Plastic tubing · Tubing
PUN-H-10X1,5-SI-300Plastic tubing · Tubing
PUN-H-10X1,5-SIPlastic tubing · Tubing
PUN-H-10X1,5-RTPlastic tubing · Tubing
PUN-H-10X1,5-GNPlastic tubing · Tubing
PUN-H-10X1,5-GEPlastic tubing · Tubing
PUN-V0-10X2-SW-CPlastic tubing · Tubing
PUN-V0-10X2-BL-CPlastic tubing · Tubing
PUN-V0-10X2-GN-CPlastic tubing · Tubing
PUN-V0-10X2-RT-CPlastic tubing · Tubing
PUN-V0-10X2-WS-CPlastic tubing · Tubing
PUN-V0-10X2-GE-CPlastic tubing · Tubing
PUN-V0-10X2-BR-CPlastic tubing · Tubing
PAN-MF-10X1,25-SWPlastic tubing · Tubing
PUN-H-10X1,5-TBL Plastic tubing · Tubing
PUN-H-10X1,5-TBL-300Plastic tubing · Tubing
PUN-H-10X1,5-TSWPlastic tubing · Tubing
PUN-H-10X1,5-TSW-300Plastic tubing · Tubing
PUN-H-10X1,5-TRTPlastic tubing · Tubing
PUN-H-10X1,5-TRT-300Plastic tubing · Tubing
PUN-H-10X1,5-TGNPlastic tubing · Tubing
PUN-H-10X1,5-TGN-300Plastic tubing · Tubing
PUN-H-10X1,5-TGEPlastic tubing · Tubing
PUN-H-10X1,5-TGE-300Plastic tubing · Tubing
PTFEN-10X1,5-NTPlastic tubing · Tubing
PTFEN-10X1,5-NT-300Plastic tubing · Tubing
PUN-H-F-10X1,5-RTPlastic tubing · Tubing
PUN-H-F-10X1,5-BLPlastic tubing · Tubing
PUN-H-F-10X1,5-TBLPlastic tubing · Tubing
PUN-H-F-10X1,5-GNPlastic tubing · Tubing
PUN-H-F-10X1,5-GEPlastic tubing · Tubing
PUN-H-F-10X1,5-SWPlastic tubing · Tubing
PUN-H-F-10X1,5-NTPlastic tubing · Tubing
