How can I get a price quote for Festo NPQO-T-Q6-E-P10?

You can request a fast quote for Festo NPQO-T-Q6-E-P10 from Yılsa Engineering. Reference part number YLSRIPCACJ5HUMB. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Festo NPQO-T-Q6-E-P10 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Festo NPQO-T-Q6-E-P10 genuine and new?

Yes. This Festo product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Festo NPQO-T-Q6-E-P10?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

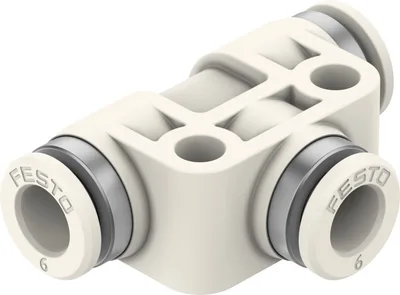

Festo NPQO-T-Q6-E-P10

Push-in T-connector. Oxygen compatibility (in accordance with ISO 15001 and ASTM G93). Biocompatibility (according to ISO 18562). FDA-listed materials. Can be used with a variety of gases (O2, CO2, N2O, NO, He, N2, Xe, Ar). Wide range from 4 mm to 12 mm in size. Push-in fittings and connections (straight, L-shaped, T-shaped)

FestoMFR # NPQO-T-Q6-E-P10SKU # YLSRIPCACJ5HUMB

Nominal size5

Tubing insertion depth15.6

Note on the tubing insertion depthVertical 19 mm

Mounting positionAny

DesignT-shape

Size of pack10

Have questions?Chat on WhatsApp

About This Product

Festo NPQO-T-Q6-E-P10

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Nominal size5

Tubing insertion depth15.6

Note on the tubing insertion depthVertical 19 mm

Mounting positionAny

DesignT-shape

Size of pack10

DesignPush-pull principle

VariantsWith mounting holes

Operating pressure complete temperature range-0.09, 0.3

Operating pressure complete temperature range-0.9, 3

Operating pressure complete temperature range-13.05, 43.5

Temperature-dependent operating pressure-0.09, 1.6

Temperature-dependent operating pressure-0.9, 16

Temperature-dependent operating pressure-13.05, 232

Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4], Inert gas, Carbon dioxide, Air, Oxygen, Nitrogen

Corrosion resistance class CRC2 - Moderate corrosion stress

LABS (PWIS) conformityVDMA24364 zone III

Suitable for use with foodSee supplementary material information

Media temperature0, 120

Ambient temperature0, 60

Biocompatibility according to standardISO 18562

Oxygen suitability according to standardASTM G 93, ISO 15001

Maximum impurity level for hydrocarbons550

Product weight11.38

Pneumatic connection, port 1For tubing outside diameter of 6 mm

Pneumatic connection, port 2For tubing outside diameter of 6 mm

Ambient temperature32, 140

Colour of release ringWhite

Note on materialsRoHS compliant

Material housingPVDF

Material release ringPVDF

Material o-ringFluoro rubber

Material tubing sealFluoro rubber

Material tubing clamp componentHigh-alloy stainless steel

Thrust ring materialPVDF

Accessories 68

Genuine accessories that can be used with the Festo NPQO-T-Q6-E-P10 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
PUN-H-F-6X1-NT	Plastic tubing · Tubes
PUN-6X1-SI	Plastic tubing · Tubing
PAN-6X1-SI	Plastic tubing · Tubing
PUN-6X1-BL	Plastic tubing · Tubing
PUN-6X1-SW	Plastic tubing · Tubing
PUN-6X1-RT	Plastic tubing · Tubing
PUN-6X1-GE	Plastic tubing · Tubing
PUN-6X1-GN	Plastic tubing · Tubing
PUN-CM-6-SW	Plastic tubing · Tubing
PUN-H-6X1-NT	Plastic tubing · Tubing
PUN-H-6X1-BL	Plastic tubing · Tubing
PUN-H-6X1-SW	Plastic tubing · Tubing
PUN-6X1-SI-500	Plastic tubing · Tubing
PUN-6X1-BL-500	Plastic tubing · Tubing
PEN-6X1-SW	Plastic tubing · Tubing
PEN-6X1-NT	Plastic tubing · Tubing
PAN-6X1-NT	Plastic tubing · Tubing
PEN-6X1-SW-500	Plastic tubing · Tubing
PEN-6X1-BL-500	Plastic tubing · Tubing
PEN-6X1-SI-500	Plastic tubing · Tubing
PEN-6X1-BL	Plastic tubing · Tubing
PEN-6X1-SI	Plastic tubing · Tubing
PEN-6X1-GN	Plastic tubing · Tubing
PEN-6X1-RT	Plastic tubing · Tubing
PEN-6X1-GE	Plastic tubing · Tubing
PUN	Plastic tubing · Tubing
PEN	Plastic tubing · Tubing
PAN-6X1-SI-500	Plastic tubing · Tubing
PAN-6X1-BL-500	Plastic tubing · Tubing
PAN-6X1-SW-500	Plastic tubing · Tubing
PAN-6X1-BL	Plastic tubing · Tubing
PAN-6X1-SW	Plastic tubing · Tubing
PAN-6X1-GN	Plastic tubing · Tubing
PAN-6X1-RT	Plastic tubing · Tubing
PAN-6X1-GE	Plastic tubing · Tubing
PUN-6X1-SW-500	Plastic tubing · Tubing
PUN-H-6X1-SW-500	Plastic tubing · Tubing
PUN-H-6X1-BL-500	Plastic tubing · Tubing
PUN-H-6X1-NT-500	Plastic tubing · Tubing
PUN-H-6X1-SI-500	Plastic tubing · Tubing
PUN-H-6X1-SI	Plastic tubing · Tubing
PUN-H-6X1-RT	Plastic tubing · Tubing
PUN-H-6X1-GN	Plastic tubing · Tubing
PUN-H-6X1-GE	Plastic tubing · Tubing
PUN-H-6X1-TBL	Plastic tubing · Tubing
PUN-H-6X1-TBL-500	Plastic tubing · Tubing
PUN-H-6X1-TSW	Plastic tubing · Tubing
PUN-H-6X1-TSW-500	Plastic tubing · Tubing
PUN-H-6X1-TRT	Plastic tubing · Tubing
PUN-H-6X1-TRT-500	Plastic tubing · Tubing
PUN-H-6X1-TGN	Plastic tubing · Tubing
PUN-H-6X1-TGN-500	Plastic tubing · Tubing
PUN-H-6X1-TGE	Plastic tubing · Tubing
PUN-H-6X1-TGE-500	Plastic tubing · Tubing
PTFEN-6X1-NT-100	Plastic tubing · Tubing
PTFEN-6X1-NT-500	Plastic tubing · Tubing
PUN-H-F-6X1-RT	Plastic tubing · Tubing
PUN-H-F-6X1-BL	Plastic tubing · Tubing
PUN-H-F-6X1-TBL	Plastic tubing · Tubing
PUN-H-F-6X1-GN	Plastic tubing · Tubing
PUN-H-F-6X1-GE	Plastic tubing · Tubing
PUN-H-F-6X1-SW	Plastic tubing · Tubing
PUN-H-6X1-RT-25	Plastic tubing · Tubing
PUN-H-6X1-BL-25	Plastic tubing · Tubing
PUN-H-6X1-SW-25	Plastic tubing · Tubing
PUN-H-6X1-TBL-25	Plastic tubing · Tubing
PUN-H-LC-6X1-BL	Plastic tubing · Tubing
PUN-H-LC-6X1-HBL	Plastic tubing · Tubing
