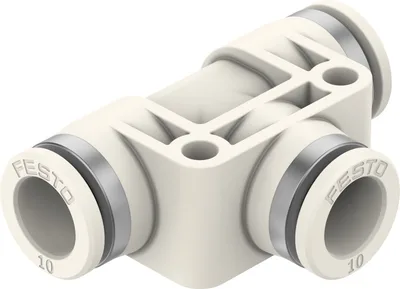

Festo NPQO-T-Q10-E-P5

Push-in T-connector. Oxygen compatibility (in accordance with ISO 15001 and ASTM G93). Biocompatibility (according to ISO 18562). FDA-listed materials. Can be used with a variety of gases (O2, CO2, N2O, NO, He, N2, Xe, Ar). Wide range from 4 mm to 12 mm in size. Push-in fittings and connections (straight, L-shaped, T-shaped)

FestoMFR # NPQO-T-Q10-E-P5SKU # YLSIZZ35KDTOKGC

Nominal size9

Tubing insertion depth20.1

Mounting positionAny

DesignT-shape

Size of pack5

DesignPush-pull principle

Have questions?Chat on WhatsApp

About This Product

Festo NPQO-T-Q10-E-P5

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Nominal size9

Tubing insertion depth20.1

Mounting positionAny

DesignT-shape

Size of pack5

DesignPush-pull principle

VariantsWith mounting holes

Operating pressure complete temperature range-0.09, 0.3

Operating pressure complete temperature range-0.9, 3

Operating pressure complete temperature range-13.05, 43.5

Temperature-dependent operating pressure-0.09, 1.2

Temperature-dependent operating pressure-0.9, 12

Temperature-dependent operating pressure-13.05, 174

Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4], Inert gas, Carbon dioxide, Air, Oxygen, Nitrogen

Corrosion resistance class CRC2 - Moderate corrosion stress

LABS (PWIS) conformityVDMA24364 zone III

Suitable for use with foodSee supplementary material information

Media temperature0, 120

Ambient temperature0, 60

Biocompatibility according to standardISO 18562

Oxygen suitability according to standardASTM G 93, ISO 15001

Maximum impurity level for hydrocarbons550

Product weight25.77

Pneumatic connection, port 1For tubing outer diameter of 10 mm

Pneumatic connection, port 2For tubing outside diameter of 10 mm

Ambient temperature32, 140

Colour of release ringWhite

Note on materialsRoHS compliant

Material housingPVDF

Material release ringPVDF

Material o-ringFluoro rubber

Material tubing sealFluoro rubber

Material tubing clamp componentHigh-alloy stainless steel

Thrust ring materialPVDF

Accessories 68

Genuine accessories that can be used with the Festo NPQO-T-Q10-E-P5 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
PUN-H-F-10X1,5-NT	Plastic tubing · Tubes
PUN-CM-10-SW	Plastic tubing · Tubing
PUN-10X1,5-SI	Plastic tubing · Tubing
PAN-10X1,5-SI	Plastic tubing · Tubing
PUN-10X1,5-BL	Plastic tubing · Tubing
PUN-10X1,5-SW	Plastic tubing · Tubing
PUN-10X1,5-RT	Plastic tubing · Tubing
PUN-10X1,5-GE	Plastic tubing · Tubing
PUN-10X1,5-GN	Plastic tubing · Tubing
PUN-H-10X1,5-NT	Plastic tubing · Tubing
PUN-H-10X1,5-BL	Plastic tubing · Tubing
PUN-H-10X1,5-SW	Plastic tubing · Tubing
PUN-10X1,5-SI-300	Plastic tubing · Tubing
PUN-10X1,5-BL-300	Plastic tubing · Tubing
PEN-10X1,5-SW	Plastic tubing · Tubing
PEN-10X1,5-NT	Plastic tubing · Tubing
PAN-10X1,5-NT	Plastic tubing · Tubing
PEN-10X1,5-SW-300	Plastic tubing · Tubing
PEN-10X1,5-BL-300	Plastic tubing · Tubing
PEN-10X1,5-SI-300	Plastic tubing · Tubing
PEN-10X1,5-BL	Plastic tubing · Tubing
PEN-10X1,5-SI	Plastic tubing · Tubing
PEN-10X1,5-GN	Plastic tubing · Tubing
PEN-10X1,5-RT	Plastic tubing · Tubing
PEN-10X1,5-GE	Plastic tubing · Tubing
PUN	Plastic tubing · Tubing
PEN	Plastic tubing · Tubing
PAN-10X1,5-SI-300	Plastic tubing · Tubing
PAN-10X1,5-BL-300	Plastic tubing · Tubing
PAN-10X1,5-SW-300	Plastic tubing · Tubing
PAN-10X1,5-BL	Plastic tubing · Tubing
PAN-10X1,5-SW	Plastic tubing · Tubing
PAN-10X1,5-GN	Plastic tubing · Tubing
PAN-10X1,5-RT	Plastic tubing · Tubing
PAN-10X1,5-GE	Plastic tubing · Tubing
PUN-10X1,5-SW-300	Plastic tubing · Tubing
PUN-H-10X1,5-SW-300	Plastic tubing · Tubing
PUN-H-10X1,5-BL-300	Plastic tubing · Tubing
PUN-H-10X1,5-NT-300	Plastic tubing · Tubing
PUN-H-10X1,5-SI-300	Plastic tubing · Tubing
PUN-H-10X1,5-SI	Plastic tubing · Tubing
PUN-H-10X1,5-RT	Plastic tubing · Tubing
PUN-H-10X1,5-GN	Plastic tubing · Tubing
PUN-H-10X1,5-GE	Plastic tubing · Tubing
PUN-H-10X1,5-TBL	Plastic tubing · Tubing
PUN-H-10X1,5-TBL-300	Plastic tubing · Tubing
PUN-H-10X1,5-TSW	Plastic tubing · Tubing
PUN-H-10X1,5-TSW-300	Plastic tubing · Tubing
PUN-H-10X1,5-TRT	Plastic tubing · Tubing
PUN-H-10X1,5-TRT-300	Plastic tubing · Tubing
PUN-H-10X1,5-TGN	Plastic tubing · Tubing
PUN-H-10X1,5-TGN-300	Plastic tubing · Tubing
PUN-H-10X1,5-TGE	Plastic tubing · Tubing
PUN-H-10X1,5-TGE-300	Plastic tubing · Tubing
PTFEN-10X1,5-NT	Plastic tubing · Tubing
PTFEN-10X1,5-NT-300	Plastic tubing · Tubing
PUN-H-F-10X1,5-RT	Plastic tubing · Tubing
PUN-H-F-10X1,5-BL	Plastic tubing · Tubing
PUN-H-F-10X1,5-TBL	Plastic tubing · Tubing
PUN-H-F-10X1,5-GN	Plastic tubing · Tubing
PUN-H-F-10X1,5-GE	Plastic tubing · Tubing
PUN-H-F-10X1,5-SW	Plastic tubing · Tubing
PUN-H-10X1,5-BL-25	Plastic tubing · Tubing
PUN-H-10X1,5-SW-25	Plastic tubing · Tubing
PUN-H-10X1,5-RT-25	Plastic tubing · Tubing
PUN-H-10X1,5-TBL-25	Plastic tubing · Tubing
PUN-H-LC-10X1,5-BL	Plastic tubing · Tubing
PUN-H-LC-10X1,5-HBL	Plastic tubing · Tubing
