How can I get a price quote for FESTO NPQM-L-Q10-E-P10?

You can request a fast quote for FESTO NPQM-L-Q10-E-P10 from Yılsa Engineering. Reference part number CEY-937FC781D61B. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is FESTO NPQM-L-Q10-E-P10 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is FESTO NPQM-L-Q10-E-P10 genuine and new?

Yes. This FESTO product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for FESTO NPQM-L-Q10-E-P10?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

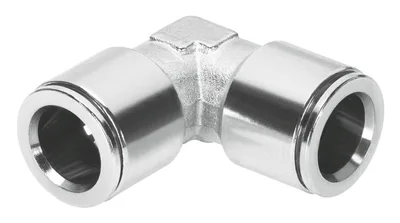

FESTO NPQM-L-Q10-E-P10

Push-in L-connector. Solid-metal brass, nickel-plated. Attractively priced metal push-in fitting. Sturdy. Operating medium: compressed air, vacuum. Straight shape, L-shape, T-shape, Y-shape, push-in bulkhead connector

FESTOMFR # NPQM-L-Q10-E-P10SKU # CEY-937FC781D61B

SizeStandard

Nominal size9

DesignL-shape

Size of pack10

DesignPush-pull principle

Note on operating and pilot mediumLubricated operation possible

Have questions?Chat on WhatsApp

About This Product

FESTO NPQM-L-Q10-E-P10

Genuine, certified FESTO product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

SizeStandard

Nominal size9

DesignL-shape

Size of pack10

DesignPush-pull principle

Operating pressure complete temperature range-0.095, 1.6

Operating pressure complete temperature range-0.95, 16

Operating pressure complete temperature range-13.775, 232

Operating mediumCompressed air to ISO 8573-1:2010 [7:-:-]

Note on operating and pilot mediumLubricated operation possible

Corrosion resistance class CRC1 - Low corrosion stress

LABS (PWIS) conformityVDMA24364-B1/B2-L

Ambient temperature-20, 70

Product weight29.5

Pneumatic connection, port 1For tubing outer diameter of 10 mm

Pneumatic connection, port 2For tubing outside diameter of 10 mm

Colour of release ringSilver

Note on materialsRoHS compliant

Material housingBrass, nickel-plated

Material tubing sealNBR

Accessories 17

Genuine accessories that can be used with the FESTO NPQM-L-Q10-E-P10 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
PUN-H-10X1,5-NT	Plastic tubing · Tubes
PUN-H-10X1,5-BL	Plastic tubing · Tubes
PUN-H-10X1,5-SW	Plastic tubing · Tubes
PUN-H-10X1,5-TBL	Plastic tubing · Tubes
PAN-10X1,5-SI	Plastic tubing · Tubing
PAN-10X1,5-NT	Plastic tubing · Tubing
PAN-10X1,5-SI-300	Plastic tubing · Tubing
PAN-10X1,5-BL-300	Plastic tubing · Tubing
PAN-10X1,5-SW-300	Plastic tubing · Tubing
PAN-10X1,5-BL	Plastic tubing · Tubing
PAN-10X1,5-SW	Plastic tubing · Tubing
PAN-10X1,5-GN	Plastic tubing · Tubing
PAN-10X1,5-RT	Plastic tubing · Tubing
PAN-10X1,5-GE	Plastic tubing · Tubing
PAN-MF-10X1,25-SW	Plastic tubing · Tubing
PTFEN-10X1,5-NT	Plastic tubing · Tubing
PTFEN-10X1,5-NT-300	Plastic tubing · Tubing
