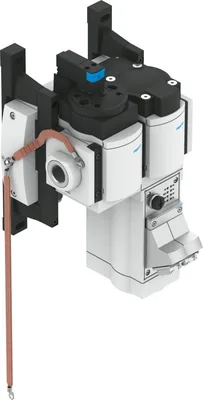

Festo MSE6-E2M-5000-FB44-AGD

Energy efficiency module. Intelligent service unit component for optimising the use of compressed air as an energy medium in industrial automation technology. Combination of flow sensor and stop valve with pressure sensor. Identification of production downtime and leakages. Equipped with measurement, control and diagnostic functions. Fieldbus connection (PROFIBUS DP, PROFINET IO, EtherNet/IP or EtherCAT®) via integrated fieldbus nodes enables connection to a higher-level controller. Sustainable operation with active air shut-off and pressure reduction

FestoMFR # MSE6-E2M-5000-FB44-AGDSKU # YLSG3FU3HYTL1O

Size6

SeriesMSE

Mounting position±5° horizontal

Valve function2/2-way, single solenoid, open

Type of resetMechanical spring

Operating pressure0.35, 1

Have questions?Chat on WhatsApp

About This Product

Festo MSE6-E2M-5000-FB44-AGD

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Size6

SeriesMSE

Mounting position±5° horizontal

Valve function2/2-way, single solenoid, open

Type of resetMechanical spring

Operating pressure0.35, 1

Operating pressure3.5, 10

Operating pressure50.75, 145

Pressure regulation range0.25, 1

Pressure regulation range2.5, 10

Pressure regulation range36.25, 145

Max. pressure hysteresis0.03

Max. pressure hysteresis0.3

Max. pressure hysteresis4.35

Standard nominal flow rate (standardised to DIN 1343)4500

Duty cycle100%

Max. current consumption, load0.1

Max. current consumption, logic0.27

ApprovalRCM

KC markKC-EMV

CE mark (see declaration of conformity)To EU EMC Directive, In accordance with EU RoHS Directive

UKCA marking (see declaration of conformity)To UK RoHS instructions

Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]

Note on operating and pilot mediumLubricated operation not possible

LABS (PWIS) conformityVDMA24364-B1/B2-L

Storage temperature-10, 60

Media temperature0, 50

Degree of protectionIP65, With plug socket

Ambient temperature0, 50

Product weight3450

Electrical connectionM18, Plug

Pneumatic connection, port 1G1/2

Pneumatic connection, port 2G1/2

Material sealsNBR

Material housingDie-cast aluminium

Material coveringReinforced PA

Material coverReinforced PA

Field bus interface2x RJ45 push-pull socket, AIDA

Operating voltage range DC electronics/sensors18, 30

Operating voltage DC load voltage18, 26.4

Reverse polarity protectionFor operating voltage connections

Displayable unitskPa, l, l/min, m3, mbar, psi, scf, scfm

Start value for flow rate measuring range50

End value for flow rate measuring range5000

Accuracy of flow rate± (3% o.m.v. + 0.3% FS)

Start value for pressure measuring range0

End value for pressure measuring range1.4

End value for pressure measuring range14

End value for pressure measuring range203

Accuracy in ± % FS3

Accessories 144

Genuine accessories that can be used with the Festo MSE6-E2M-5000-FB44-AGD motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
MS6-AGF	Connecting plate SET · Mounting accessories
NEAC-M-S-BD-R3SCPP	Dummy plug · Electrical accessories
U-1/4-B	Silencer · Silencer
NTSD-GD-9	Plug socket · Electrical accessories
NTSD-GD-13,5	Power supply socket · Electrical accessories
NTSD-WD-9	Plug socket · Electrical accessories
QSW-1/2-12	Push-in fitting · Push-in fittings
QSW-1/2-16	Push-in fitting · Push-in fittings
QS-1/2-12-20	Push-in fitting · Push-in fittings
QS-1/2-16-20	Push-in fitting · Push-in fittings
QSL-1/2-12-20	Push-in L-fitting · Push-in fittings
QSL-1/2-16-20	Push-in L-fitting · Push-in fittings
QS-G1/2-12-20	Push-in fitting · Push-in fittings
QS-G1/2-16-20	Push-in fitting · Push-in fittings
QSL-G1/2-12-20	Push-in L-fitting · Push-in fittings
QSL-G1/2-16-20	Push-in L-fitting · Push-in fittings
QS-1/2-10-50	Push-in fitting · Push-in fittings
QSL-1/2-10-50	Push-in L-fitting · Push-in fittings
QSY-1/2-10	Push-in Y-fitting · Push-in fittings
QS-1/2-12	Push-in fitting · Push-in fittings
QS-1/2-16	Push-in fitting · Push-in fittings
QS-1/2-12-I	Push-in fitting · Push-in fittings
QSL-1/2-12	Push-in L-fitting · Push-in fittings
QSL-1/2-16	Push-in L-fitting · Push-in fittings
QSLL-1/2-12	Push-in L-fitting, long · Push-in fittings
QSLV-1/2-12	Push-in L-fitting · Push-in fittings
QSLV-1/2-16	Push-in L-fitting · Push-in fittings
QSLV-1/2-12-I	Push-in L-fitting · Push-in fittings
QST-1/2-12	Push-in T-fitting · Push-in fittings
QST-1/2-16	Push-in T-fitting · Push-in fittings
QSTL-1/2-12	Push-in T-fitting · Push-in fittings
QSTL-1/2-16	Push-in T-fitting · Push-in fittings
QSY-1/2-12	Push-in Y-fitting · Push-in fittings
QSYL-1/2-12	Push-in Y-fitting · Push-in fittings
QSTF-1/2-12-B	Push-in T-fitting · Push-in fittings
QSYLV-1/2-12	Push-in Y-fitting · Push-in fittings
QSYTF-1/2-12-B	Multiple distributor · Push-in fittings
QSLV2-1/2-12	Multiple distributor · Push-in fittings
QSLV3-1/2-12	Multiple distributor · Push-in fittings
QSLV4-1/2-12	Multiple distributor · Push-in fittings
QSLV6-1/2-12	Multiple distributor · Push-in fittings
QSR-1/2-12	Push-in fitting, rotatable · Push-in fittings
QSRL-1/2-12	Push-in L-fitting, rotatable · Push-in fittings
QSK-1/2-12	Push-in fitting, self-sealing · Push-in fittings
QSKL-1/2-12	Push-in L-fitting,self-sealing · Push-in fittings
QS-V0-1/2-10	Push-in fitting · Push-in fittings
QS-V0-1/2-12	Push-in fitting · Push-in fittings
QST-V0-1/2-10	Push-in T-fitting · Push-in fittings
QST-V0-1/2-12	Push-in T-fitting · Push-in fittings
CQ-1/2-12	Push-in fitting · Connection accessories
CQ-1/2-15	Push-in fitting · Connection accessories
CQ-1/2-18	Push-in fitting · Connection accessories
QS-1/2-3/8-I-U-M	Push-in fitting · Push-in fittings
QS-1/2-1/2-I-U-M	Push-in fitting · Push-in fittings
QS-G1/2-12	Push-in fitting · Push-in fittings
QS-G1/2-16	Push-in fitting · Push-in fittings
QS-G1/2-12-I	Push-in fitting · Push-in fittings
QSL-G1/2-12	Push-in L-fitting · Push-in fittings
QSL-G1/2-16	Push-in L-fitting · Push-in fittings
QSLL-G1/2-12	Push-in L-fitting, long · Push-in fittings
QSLV-G1/2-12	Push-in L-fitting · Push-in fittings
QSLV-G1/2-16	Push-in L-fitting · Push-in fittings
QSLV-G1/2-12-I	Push-in L-fitting · Push-in fittings
QST-G1/2-12	Push-in T-fitting · Push-in fittings
QST-G1/2-16	Push-in T-fitting · Push-in fittings
QSTL-G1/2-12	Push-in T-fitting · Push-in fittings
QSTL-G1/2-16	Push-in T-fitting · Push-in fittings
QSY-G1/2-12	Push-in Y-fitting · Push-in fittings
QSYL-G1/2-12	Push-in Y-fitting · Push-in fittings
QSTF-G1/2-12	Push-in T-fitting · Push-in fittings
QSYLV-G1/2-12	Push-in Y-fitting · Push-in fittings
QSYTF-G1/2-12	Multiple distributor · Push-in fittings
QSLV2-G1/2-12	Multiple distributor · Push-in fittings
QSLV3-G1/2-12	Multiple distributor · Push-in fittings
QSLV4-G1/2-12	Multiple distributor · Push-in fittings
QSLV6-G1/2-12	Multiple distributor · Push-in fittings
QSR-G1/2-12	Push-in fitting, rotatable · Push-in fittings
QSRL-G1/2-12	Push-in L-fitting, rotatable · Push-in fittings
QSK-G1/2-12	Push-in fitting, self-sealing · Push-in fittings
QSKL-G1/2-12	Push-in L-fitting,self-sealing · Push-in fittings
QS-V0-G1/2-10	Push-in fitting · Push-in fittings
QS-V0-G1/2-12	Push-in fitting · Push-in fittings
QST-V0-G1/2-10	Push-in T-fitting · Push-in fittings
QST-V0-G1/2-12	Push-in T-fitting · Push-in fittings
QS-1/2-10	Push-in fitting · Push-in fittings
QS-1/2-10-I	Push-in fitting · Push-in fittings
QSL-1/2-10	Push-in L-fitting · Push-in fittings
QSLL-1/2-10	Push-in L-fitting, long · Push-in fittings
QSLL-G1/2-16	Push-in L-fitting, long · Push-in fittings
QST-1/2-10	Push-in T-fitting · Push-in fittings
MS6-WPM-D	Mounting bracket · Mounting accessories
MS6-WPB	Mounting bracket · Mounting accessories
MS6-AGB	Sub-base-SET · Mounting accessories
MS6-AGC	Sub-base-SET · Mounting accessories
MS6-AGD	Sub-base-SET · Mounting accessories
MS6-AGE	Sub-base-SET · Mounting accessories
MS6-WPM-2D	Mounting bracket · Mounting accessories
MS6-WP	Mounting bracket · Mounting accessories
MS6-WB	Mounting bracket · Mounting accessories
FBS-SUB-9-GS-DP-B	Plug · Electrical accessories
MS6-MVM	Module connector · Mounting accessories
MS6-AEND1	Mounting plate · Mounting accessories
MS6-END	Cover cap · Mounting accessories
MS6-MV-EX	Module connector · Mounting accessories
MS6-WP-EX	Mounting bracket · Mounting accessories
MS6-RMV	Module connector · Mounting accessories
MS6-E-IPM-40-80	Power supply module · Mounting accessories
MS6-E-IPM-80-80	Power supply module · Mounting accessories
MS6-A-IPM-80	Branching module · Mounting accessories
MS6-A-RMV-IPM-80	Branching module · Mounting accessories
MS6-9-ARMV	Module connector · Mounting accessories
MS6-RMV-EX	Module connector · Mounting accessories
MS6-9-ARMV-EX	Module connector · Mounting accessories
MS6-9-AMV	Module connector · Mounting accessories
MS6-9-AMV-EX	Module connector · Mounting accessories
NECC-M-S-R3G8PP-HX-PN	Plug · Electrical accessories
NPFC-L-2G12-F	Elbow fitting · Push-in fittings
NPFC-Y-3G12-F	Y-fitting · Push-in fittings
NPFC-T-3G12-F	T-fitting · Push-in fittings
NPFC-T-2G12-R12-FMF	T-fitting · Push-in fittings
NPFC-T-G12-2R12-FMM	T-fitting · Push-in fittings
NPFC-X-4G12-F	X-fitting · Push-in fittings
NPFC-D-2G12-M	Double nipple · Push-in fittings
NPFC-S-2G12-F	Coupling sleeve · Push-in fittings
NPFC-E1-2G12-FM	Extension · Push-in fittings
NPFC-R-G12-G14-MF	Reducing nipple · Push-in fittings
NPFC-R-G12-G38-MF	Reducing nipple · Push-in fittings
NPFC-R-G12-G38-FM	Reducing nipple · Push-in fittings
NPFC-D-2G12-M-P50	Double nipple · Push-in fittings
NPFC-D-G12-G34-M	Double nipple · Push-in fittings
NPFC-R-G12-G18-F	Reducing coupling · Push-in fittings
NPFC-R-G12-G14-F	Reducing coupling · Push-in fittings
NPFC-R-G12-G38-F	Reducing coupling · Push-in fittings
NPFC-R-G12-G14-MF-P50	Reducing nipple · Push-in fittings
NPFC-R-G12-G38-MF-P50	Reducing nipple · Push-in fittings
NPFC-H-G12-F	Bulkhead fitting · Push-in fittings
MS6-WPG	Wall mounting-SET · Mounting accessories
MS6-MV1	Module connector · Mounting accessories
NPFC-DS-G14-G12-M	Double nipple · Push-in fittings
NPFC-DS-G38-G12-M	Double nipple · Push-in fittings
NPFC-DS-G12-G12-M	Double nipple · Push-in fittings
NPFC-RS-G12-G14-MF	Reducing nipple · Push-in fittings
NPFC-RS-G12-G38-MF	Reducing nipple · Push-in fittings
MS6-WP-F1A	Mounting bracket · Mounting accessories
