How can I get a price quote for FESTO MS6-SV-1/2-E-10V24-AG?

You can request a fast quote for FESTO MS6-SV-1/2-E-10V24-AG from Yılsa Engineering. Reference part number CEY-937FC781EB53. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is FESTO MS6-SV-1/2-E-10V24-AG in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is FESTO MS6-SV-1/2-E-10V24-AG genuine and new?

Yes. This FESTO product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for FESTO MS6-SV-1/2-E-10V24-AG?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

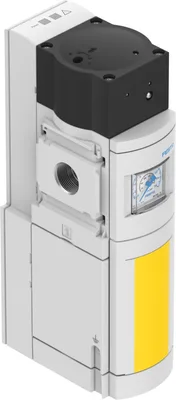

FESTO MS6-SV-1/2-E-10V24-AG

Soft start/quick exhaust valve. With safety functions. For reducing pressure quickly and reliably and for building up pressure gradually. Adjustable pressure build-up time. Adjustable switch-through pressure. Supply voltage 24 V DC. Standard nominal flow rate <=6.500 l/min with grid dimension 62 mm

FESTOMFR # MS6-SV-1/2-E-10V24-AGSKU # CEY-937FC781EB53

SeriesMS

Size6

Grid dimension62

Note on forced dynamizationSwitching frequency min. 1/month

DesignPiston seat

lapUnderlap

Have questions?Chat on WhatsApp

About This Product

FESTO MS6-SV-1/2-E-10V24-AG

Genuine, certified FESTO product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

SeriesMS

Size6

Grid dimension62

Safety functionExhaust, Prevention of unexpected start-up (pressurisation)

Safety Integrity Level (SIL)Exhaust/SIL 3, Prevention of unexpected start-up (pressurisation)/SIL 3

Performance Level (PL)Exhausting/up to category 4, performance level e, Prevention of unexpected start-up (pressurisation)/up to category 4, performance level e

Note on forced dynamizationSwitching frequency min. 1/month

DesignPiston seat

lapUnderlap

Type of actuationElectrical

Pilot air supplyInternal

Sealing principleSoft

Exhaust-air functionCannot be throttled

Position detection principleMagnetic piston principle

Conforms to standardDIN EN ISO 13849-1, EN 61508-1-3

Manual overrideNone

Type of resetMechanical spring

Type of pilotingPiloted

Symbol00995704

Valve function3/2-way, single solenoid, closed, Soft-start function

Operating pressure0.35, 1

Operating pressure3.5, 10

Pressure gauge (ANALOG) or Pressure display (DIGITAL)With pressure gauge

C value19.3

b value0.21

Standard nominal flow rate (standardised to DIN 1343)4300

Standard nominal flow rate, exhaust 0.6->0 MPa (6->0 bar, 87->0 psi)9000

Max. switching frequency0.5

Switching time off40

Switching time on130

Duty cycle100%

Signal status displayLED, Potential-free contact

Nominal operating voltage DC24

Permissible voltage fluctuations+/-10%

Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]

Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)

Corrosion resistance class CRC2 - Moderate corrosion stress

Note on materialsRoHS compliant

LABS (PWIS) conformityVDMA24364-B1/B2-L

Degree of protectionIP65, With plug socket

Media temperature-10, 50

Ambient temperature-10, 50

Storage temperature-10, 50

Shock resistanceShock test with severity level 2 to FN 942017-5 and EN 60068-2-27

Vibration resistanceTransport application test with severity level 2 to FN 942017-4 and EN 60068-2-6

ApprovalRCM

KC markKC-EMV

CE mark (see declaration of conformity)To EU EMC Directive, To EC Machinery Directive, In accordance with EU RoHS Directive

UKCA marking (see declaration of conformity)To UK regulations for machines, To UK RoHS instructions

Certificate issuing authority01/205/5999.06/26

Suitable for use with foodSee supplementary material information

Type of mountingEither:, Inline installation, With accessories

Mounting positionAny

Product weight2000

Pneumatic connection, port 1G1/2

Pneumatic connection, port 2G1/2

Pneumatic connection, port 3G1

Electrical connection9-pin, Sub-D

Material housingDie-cast aluminium

Material sealsNBR

Material piston rodHigh-alloy stainless steel

Accessories 46

Genuine accessories that can be used with the FESTO MS6-SV-1/2-E-10V24-AG motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
MS6-9-AMV	Module connector · Mounting accessories
UOS-1	Silencer · Silencer
NECA-S1G9-P9-MP5	Multi-pin plug socket · Electrical accessories
QS-G1/2-12	Push-in fitting · Fittings
NECA-S1G9-P9-MP1	Multi-pin plug socket · Electrical accessories
QS-G1/2-12-I	Push-in fitting · Fittings
NECA-S1G9-P9-MP3	Multi-pin plug socket · Electrical accessories
QSL-G1/2-12	Push-in L-fitting · Fittings
MS6-WPB	Mounting bracket · Mounting accessories
MS6-AGF	Connecting plate SET · Mounting accessories
CK-1/2-PK-13	Quick connector · Quick connectors
LCK-1/2-PK-13	Elbow quick connector · Quick connectors
TCK-1/2-PK-13	T quick connector · Quick connectors
CQ-1/2-12	Push-in fitting · Connection accessories
CQ-1/2-15	Push-in fitting · Connection accessories
CQ-1/2-18	Push-in fitting · Connection accessories
CQ-1/2-12H	Push-in fitting · Connection accessories
CQ-1/2-15H	Push-in fitting · Connection accessories
CQ-1/2-18H	Push-in fitting · Connection accessories
CQ-1/2-22H	Push-in fitting · Connection accessories
MS6-AGB	Sub-base-SET · Mounting accessories
MS6-AGC	Sub-base-SET · Mounting accessories
MS6-AGD	Sub-base-SET · Mounting accessories
MS6-AGE	Sub-base-SET · Mounting accessories
MS6-MVM	Module connector · Mounting accessories
MS6-AEND1	Mounting plate · Mounting accessories
MS6-END	Cover cap · Mounting accessories
MS6-RMV	Module connector · Mounting accessories
MS6-E-IPM-40-80	Power supply module · Mounting accessories
MS6-E-IPM-80-80	Power supply module · Mounting accessories
MS6-A-IPM-80	Branching module · Mounting accessories
MS6-A-RMV-IPM-80	Branching module · Mounting accessories
CK-1/2-PK-9	Quick connector · Quick connectors
MS6-9-ARMV	Module connector · Mounting accessories
MS6-RMV-EX	Module connector · Mounting accessories
MS6-9-ARMV-EX	Module connector · Mounting accessories
MS6-9-AMV-EX	Module connector · Mounting accessories
NPFC-R-G12-G14-MF	Reducing nipple · Other connectors
NPFC-R-G12-G18-F	Reducing sleeve · Other connectors
NPFC-R-G12-G14-F	Reducing sleeve · Other connectors
NPFC-R-G12-G14-MF-P50	Reducing nipple · Other connectors
MS6-MV1	Module connector · Mounting accessories
NPFC-DS-G14-G12-M	Double nipple · Other connectors
NPFC-RS-G12-G14-MF	Reducing nipple · Other connectors
MS6-RB-10	Covering kit · Mounting accessories
MS6-MV1-F1A	Module connector · Mounting accessories
