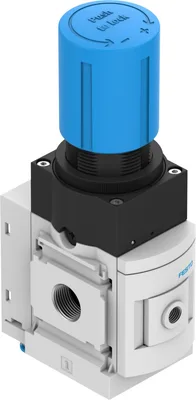

FESTO MS6-LRPB-1/2-D2-A8-BD
Precision pressure regulator. Grid dimension 62 mm. As individual device and for manifold assembly. Manifold assembly with through air supply. Good control characteristics with minimal pressure hysteresis and primary pressure compensation. High secondary exhausting. Lockable rotary knob. Optionally with pressure sensor with display
Size6
SeriesMS
Actuator lockRotary knob with detent
Mounting positionAny
Symbol00991973
Operating pressure0.1, 1.4
About This Product
Precision pressure regulator. Grid dimension 62 mm. As individual device and for manifold assembly. Manifold assembly with through air supply. Good control characteristics with minimal pressure hysteresis and primary pressure compensation. High secondary exhausting. Lockable rotary knob. Optionally with pressure sensor with display
FESTO MS6-LRPB-1/2-D2-A8-BD
- Genuine, certified FESTO product
- Fast sourcing through a worldwide supply network
- Product selection and compatibility support from our technical team
- Equivalent and alternative product suggestions
- Quotation and lead time tailored to your request
Specifications
Size6
SeriesMS
Actuator lockRotary knob with detent
Mounting positionAny
DesignPiloted precision diaphragm control valve
Controller functionOutput pressure constant, With secondary exhausting
Symbol00991973
Pressure gauge (ANALOG) or Pressure display (DIGITAL)Prepared for G1/8
Operating pressure0.1, 1.4
Operating pressure1, 14
Pressure regulation range0.05, 0.7
Max. pressure hysteresis0.02
Flow rate of secondary exhaust220
Standard nominal flow rate (standardised to DIN 1343)1600
Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4], Inert gas
Note on operating and pilot mediumLubricated operation not possible
Corrosion resistance class CRC2 - Moderate corrosion stress
LABS (PWIS) conformityVDMA24364-B1/B2-L
Storage temperature-10, 60
Media temperature-10, 60
Ambient temperature-10, 60
Product weight850
Type of mountingWith accessories
Pneumatic connection, port 1G1/2
Pneumatic connection, port 2G1/2
Pneumatic connection, port 3G1/4
Note on materialsRoHS compliant
Material sealsNBR
Material housingAluminium
Accessories 148
Genuine accessories that can be used with the FESTO MS6-LRPB-1/2-D2-A8-BD motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.
| Part no | Description | Compatible motors |
|---|---|---|
| MS6-E-IPM-80-80 | Power supply module · Mounting accessories | |
| MS6-9-AMV | Module connector · Mounting accessories | |
| MS6-WP | Mounting bracket · Mounting accessories | |
| MAP-40-1-1/8-EN | Precision pressure gauge · General accessories | |
| MS6-AGD | Sub-base-SET · Mounting accessories | |
| MS6-9-ARMV | Module connector · Mounting accessories | |
| MS6-WP-EX | Mounting bracket · Mounting accessories | |
| MS6-MVM | Module connector · Mounting accessories | |
| MS6-WR | Mounting bracket · Mounting accessories | |
| MS6-AGE | Sub-base-SET · Mounting accessories | |
| MS6-AEND1 | Mounting plate · Mounting accessories | |
| MS6-RMV-EX | Module connector · Mounting accessories | |
| MS6-WB | Mounting bracket · Mounting accessories | |
| MS6-9-AMV-EX | Module connector · Mounting accessories | |
| MS6-A-IPM-80 | Branching module · Mounting accessories | |
| MS6-RMV | Module connector · Mounting accessories | |
| MS6-MV1 | Module connector · Mounting accessories | |
| MS6-AGB | Sub-base-SET · Mounting accessories | |
| MS6-WRS | Hex nut · Mounting accessories | |
| MS6-9-ARMV-EX | Module connector · Mounting accessories | |
| MS6-WPB | Mounting bracket · Mounting accessories | |
| MS6-AGC | Sub-base-SET · Mounting accessories | |
| MS6-E-IPM-40-80 | Power supply module · Mounting accessories | |
| MS6-END | Cover cap · Mounting accessories | |
| MS6-A-RMV-IPM-80 | Branching module · Mounting accessories | |
| QS-G1/2-12 | Push-in fitting · Fittings | |
| U-1/8 | Silencer · Silencer | |
| QS-G1/2-12-I | Push-in fitting · Fittings | |
| QSL-G1/2-12 | Push-in L-fitting · Fittings | |
| U-1/8-B | Silencer · Silencer | |
| QSW-1/2-12 | Push-in fitting · Push-in fittings | |
| QSW-1/2-16 | Push-in fitting · Push-in fittings | |
| QS-1/2-12-20 | Push-in fitting · Push-in fittings | |
| QS-1/2-16-20 | Push-in fitting · Push-in fittings | |
| QSL-1/2-12-20 | Push-in L-fitting · Push-in fittings | |
| QSL-1/2-16-20 | Push-in L-fitting · Push-in fittings | |
| QS-G1/2-12-20 | Push-in fitting · Push-in fittings | |
| QS-G1/2-16-20 | Push-in fitting · Push-in fittings | |
| QSL-G1/2-12-20 | Push-in L-fitting · Push-in fittings | |
| QSL-G1/2-16-20 | Push-in L-fitting · Push-in fittings | |
| QS-1/2-10-50 | Push-in fitting · Push-in fittings | |
| QSL-1/2-10-50 | Push-in L-fitting · Push-in fittings | |
| QSY-1/2-10 | Push-in Y-fitting · Push-in fittings | |
| QS-1/2-12 | Push-in fitting · Push-in fittings | |
| QS-1/2-16 | Push-in fitting · Push-in fittings | |
| QS-1/2-12-I | Push-in fitting · Push-in fittings | |
| QSL-1/2-12 | Push-in L-fitting · Push-in fittings | |
| QSL-1/2-16 | Push-in L-fitting · Push-in fittings | |
| QSLL-1/2-12 | Push-in L-fitting, long · Push-in fittings | |
| QSLV-1/2-12 | Push-in L-fitting · Push-in fittings | |
| QSLV-1/2-16 | Push-in L-fitting · Push-in fittings | |
| QSLV-1/2-12-I | Push-in L-fitting · Push-in fittings | |
| QST-1/2-12 | Push-in T-fitting · Push-in fittings | |
| QST-1/2-16 | Push-in T-fitting · Push-in fittings | |
| QSTL-1/2-12 | Push-in T-fitting · Push-in fittings | |
| QSTL-1/2-16 | Push-in T-fitting · Push-in fittings | |
| QSY-1/2-12 | Push-in Y-fitting · Push-in fittings | |
| QSYL-1/2-12 | Push-in Y-fitting · Push-in fittings | |
| QSTF-1/2-12-B | Push-in T-fitting · Push-in fittings | |
| QSYLV-1/2-12 | Push-in Y-fitting · Push-in fittings | |
| QSYTF-1/2-12-B | Multiple distributor · Push-in fittings | |
| QSLV2-1/2-12 | Multiple distributor · Push-in fittings | |
| QSLV3-1/2-12 | Multiple distributor · Push-in fittings | |
| QSLV4-1/2-12 | Multiple distributor · Push-in fittings | |
| QSLV6-1/2-12 | Multiple distributor · Push-in fittings | |
| QSR-1/2-12 | Push-in fitting, rotatable · Push-in fittings | |
| QSRL-1/2-12 | Push-in L-fitting, rotatable · Push-in fittings | |
| QSK-1/2-12 | Push-in fitting, self-sealing · Push-in fittings | |
| QSKL-1/2-12 | Push-in L-fitting,self-sealing · Push-in fittings | |
| QS-V0-1/2-10 | Push-in fitting · Push-in fittings | |
| QS-V0-1/2-12 | Push-in fitting · Push-in fittings | |
| QST-V0-1/2-10 | Push-in T-fitting · Push-in fittings | |
| QST-V0-1/2-12 | Push-in T-fitting · Push-in fittings | |
| UC-1/8 | Silencer · Silencer | |
| CQ-1/2-12 | Push-in fitting · Connection accessories | |
| CQ-1/2-15 | Push-in fitting · Connection accessories | |
| CQ-1/2-18 | Push-in fitting · Connection accessories | |
| QS-1/2-3/8-I-U-M | Push-in fitting · Push-in fittings | |
| QS-1/2-1/2-I-U-M | Push-in fitting · Push-in fittings | |
| QS-G1/2-16 | Push-in fitting · Push-in fittings | |
| QSL-G1/2-16 | Push-in L-fitting · Push-in fittings | |
| QSLL-G1/2-12 | Push-in L-fitting, long · Push-in fittings | |
| QSLV-G1/2-12 | Push-in L-fitting · Push-in fittings | |
| QSLV-G1/2-16 | Push-in L-fitting · Push-in fittings | |
| QSLV-G1/2-12-I | Push-in L-fitting · Push-in fittings | |
| QST-G1/2-12 | Push-in T-fitting · Push-in fittings | |
| QST-G1/2-16 | Push-in T-fitting · Push-in fittings | |
| QSTL-G1/2-12 | Push-in T-fitting · Push-in fittings | |
| QSTL-G1/2-16 | Push-in T-fitting · Push-in fittings | |
| QSY-G1/2-12 | Push-in Y-fitting · Push-in fittings | |
| QSYL-G1/2-12 | Push-in Y-fitting · Push-in fittings | |
| QSTF-G1/2-12 | Push-in T-fitting · Push-in fittings | |
| QSYLV-G1/2-12 | Push-in Y-fitting · Push-in fittings | |
| QSYTF-G1/2-12 | Multiple distributor · Push-in fittings | |
| QSLV2-G1/2-12 | Multiple distributor · Push-in fittings | |
| QSLV3-G1/2-12 | Multiple distributor · Push-in fittings | |
| QSLV4-G1/2-12 | Multiple distributor · Push-in fittings | |
| QSLV6-G1/2-12 | Multiple distributor · Push-in fittings | |
| QSR-G1/2-12 | Push-in fitting, rotatable · Push-in fittings | |
| QSRL-G1/2-12 | Push-in L-fitting, rotatable · Push-in fittings | |
| QSK-G1/2-12 | Push-in fitting, self-sealing · Push-in fittings | |
| QSKL-G1/2-12 | Push-in L-fitting,self-sealing · Push-in fittings | |
| QS-V0-G1/2-10 | Push-in fitting · Push-in fittings | |
| QS-V0-G1/2-12 | Push-in fitting · Push-in fittings | |
| QST-V0-G1/2-10 | Push-in T-fitting · Push-in fittings | |
| QST-V0-G1/2-12 | Push-in T-fitting · Push-in fittings | |
| QS-1/2-10 | Push-in fitting · Push-in fittings | |
| QS-1/2-10-I | Push-in fitting · Push-in fittings | |
| QSL-1/2-10 | Push-in L-fitting · Push-in fittings | |
| QSLL-1/2-10 | Push-in L-fitting, long · Push-in fittings | |
| QSLL-G1/2-16 | Push-in L-fitting, long · Push-in fittings | |
| QST-1/2-10 | Push-in T-fitting · Push-in fittings | |
| MS6-WPM-D | Mounting bracket · Mounting accessories | |
| MS6-WPM-2D | Mounting bracket · Mounting accessories | |
| UC-1/8-50 | Silencer · Silencer | |
| U-1/8-50 | Silencer · Silencer | |
| AMTE-M-LH-G18 | Silencer · Silencer | |
| AMTE-M-H-G18 | Silencer · Silencer | |
| NPFC-L-2G12-F | Elbow fitting · Push-in fittings | |
| NPFC-Y-3G12-F | Y-fitting · Push-in fittings | |
| NPFC-T-3G12-F | T-fitting · Push-in fittings | |
| NPFC-T-2G12-R12-FMF | T-fitting · Push-in fittings | |
| NPFC-T-G12-2R12-FMM | T-fitting · Push-in fittings | |
| NPFC-X-4G12-F | X-fitting · Push-in fittings | |
| NPFC-D-2G12-M | Double nipple · Push-in fittings | |
| NPFC-S-2G12-F | Sleeve · Push-in fittings | |
| NPFC-E1-2G12-FM | Extension · Push-in fittings | |
| NPFC-R-G12-G14-MF | Reducing nipple · Push-in fittings | |
| NPFC-R-G12-G38-MF | Reducing nipple · Push-in fittings | |
| NPFC-R-G12-G38-FM | Reducing nipple · Push-in fittings | |
| NPFC-D-2G12-M-P50 | Double nipple · Push-in fittings | |
| NPFC-D-G12-G34-M | Double nipple · Push-in fittings | |
| NPFC-R-G12-G18-F | Reducing sleeve · Push-in fittings | |
| NPFC-R-G12-G14-F | Reducing sleeve · Push-in fittings | |
| NPFC-R-G12-G38-F | Reducing sleeve · Push-in fittings | |
| NPFC-R-G12-G14-MF-P50 | Reducing nipple · Push-in fittings | |
| NPFC-R-G12-G38-MF-P50 | Reducing nipple · Push-in fittings | |
| NPFC-H-G12-F | Bulkhead fitting · Push-in fittings | |
| MS6-WPG | Wall mounting-SET · Mounting accessories | |
| PAGN-26-10-G18S | Pressure gauge · Connection accessories | |
| PAGN-26-1M-G18S | Pressure gauge · Connection accessories | |
| NPFC-DS-G14-G12-M | Double nipple · Push-in fittings | |
| NPFC-DS-G38-G12-M | Double nipple · Push-in fittings | |
| NPFC-DS-G12-G12-M | Double nipple · Push-in fittings | |
| NPFC-RS-G12-G14-MF | Reducing nipple · Push-in fittings | |
| NPFC-RS-G12-G38-MF | Reducing nipple · Push-in fittings | |
| MS6-RB-10 | Covering kit · Mounting accessories | |
| MS6-WP-F1A | Mounting bracket · Mounting accessories |
Related Products
View Details
Festo
MS6-LR-AGE-D6-MPA
MFR #MS6-LR-AGE-D6-MPA
SKU #YLS7GBDRWAUOEU
View Details
Festo
MS6-LR-AGE-D7-MPA
MFR #MS6-LR-AGE-D7-MPA
SKU #YLS6GMGQZV35JM
View Details
Festo
MS6-LR-AGE-D7
MFR #MS6-LR-AGE-D7
SKU #YLS1VHVIITI2ZDI
View Details
Festo
MS6-LR-AGE-D7-VS
MFR #MS6-LR-AGE-D7-VS
SKU #YLSCFNWL1S9FBZY
View Details
Festo
MS6-LR-AGF-D6
MFR #MS6-LR-AGF-D6
SKU #YLSFZ9TPKVGJDA
View Details
Festo
MS6-LR-AGF-D7-MPA
MFR #MS6-LR-AGF-D7-MPA
SKU #YLSTSSXOBXYN3AF
View Details
Festo
MS6-LR-AGF-D6-MPA
MFR #MS6-LR-AGF-D6-MPA
SKU #YLSC0MYH5RHBN7Q
View Details
Festo
MS6-LR-AGF-D7-VS
MFR #MS6-LR-AGF-D7-VS
SKU #YLSRCAJH3CMMRAM
View Details
Festo
MS6-LR-AGF-D7
MFR #MS6-LR-AGF-D7
SKU #YLS9ACTBV27WRQ
Featured Products
View Details
SMC
AC40B-N04G-RZ-B F/R COMBO MODULAR
MFR #AC40B-N04G-RZ-B F/R COMBO MODULAR
SKU #YLS1HII4JHHH09L
View Details
SMC
CM2B40-75Z
MFR #CM2B40-75Z
SKU #YLSOGLJ512KWTEJ
View Details
SMC
VQC2101R-51
MFR #VQC2101R-51
SKU #YLSSEY6NT0YLZ8G
View Details
SMC
SY5420-5DZ-01
MFR #SY5420-5DZ-01
SKU #YLSQW9MERWL033X
View Details
SMC
AL30-03-8-A
MFR #AL30-03-8-A
SKU #YLS6GDABZE4BN7A
View Details
SMC
MGPM25-100Z-XC4
MFR #MGPM25-100Z-XC4
SKU #YLSH71U0VZZBO5I
View Details
SMC
VQZ2121-5LO1-N3T
MFR #VQZ2121-5LO1-N3T
SKU #YLSEL35MGGQ9FOL
View Details
SMC
CG5EN50SV-150
MFR #CG5EN50SV-150
SKU #YLST11TLVYPVP7H
View Details
SMC
AR30-N02E-1Z-B
MFR #AR30-N02E-1Z-B
SKU #YLSYFNHADE6GRKV
View Details
SMC
NCDGFN25-0100
MFR #NCDGFN25-0100
SKU #YLST0TDV975HLIN
Related Searches
FESTO MS6-LRPB-1/2-D2-A8-BD priceFESTO MS6-LRPB-1/2-D2-A8-BD quotebuy FESTO MS6-LRPB-1/2-D2-A8-BDMS6-LRPB-1/2-D2-A8-BD priceMS6-LRPB-1/2-D2-A8-BD stock availabilityFESTO spare partsFESTO MS6-LRPB-1/2-D2-A8-BD equivalentFESTO MS6-LRPB-1/2-D2-A8-BD specifications
