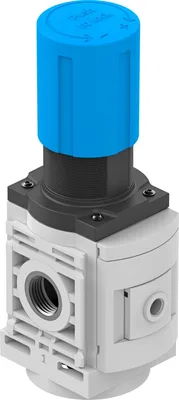

Photo may not represent actual item. Refer to name and product specs for all details.
Festo MS6-LR-1/2-D6-A8-B
Pressure regulator. Grid dimension 25, 40, 62 mm. Competitively priced basic component focused on the most important technical functions. Lightweight and sturdy thanks to modern polymer materials. Compatible with the MS series for the ideal combination of low-cost basic functionality and high-end functional requirements. Stabile control response. With or without pressure gauge. Rotary knob with latch. With integrated secondary exhausting and primary exhausting with return flow function. MS2: Directly operated diaphragm regulator. MS4, MS6: directly actuated piston regulator. Sustainable operation thanks to reduced pressure level
Size6
SeriesMS
Actuator lockRotary knob with detent
Mounting positionAny
DesignDirectly actuated piston regulator
Symbol00991559
About This Product
Pressure regulator. Grid dimension 25, 40, 62 mm. Competitively priced basic component focused on the most important technical functions. Lightweight and sturdy thanks to modern polymer materials. Compatible with the MS series for the ideal combination of low-cost basic functionality and high-end functional requirements. Stabile control response. With or without pressure gauge. Rotary knob with latch. With integrated secondary exhausting and primary exhausting with return flow function. MS2: Directly operated diaphragm regulator. MS4, MS6: directly actuated piston regulator. Sustainable operation thanks to reduced pressure level
Festo MS6-LR-1/2-D6-A8-B
- Genuine, certified Festo product
- Fast sourcing through a worldwide supply network
- Product selection and compatibility support from our technical team
- Equivalent and alternative product suggestions
- Quotation and lead time tailored to your request
Specifications
Size6
SeriesMS
Actuator lockRotary knob with detent
Mounting positionAny
DesignDirectly actuated piston regulator
Controller functionOutput pressure constant, With secondary exhausting, With return flow function
Symbol00991559
Pressure gauge (ANALOG) or Pressure display (DIGITAL)Prepared for G1/8
Operating pressure0.1, 1
Operating pressure1, 10
Pressure regulation range0.3, 7
Max. pressure hysteresis0.035
Max. pressure hysteresis0.35
Max. pressure hysteresis5.075
Standard nominal flow rate (standardised to DIN 1343)6000
Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4], Inert gas
Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)
Corrosion resistance class CRC1 - Low corrosion stress
LABS (PWIS) conformityVDMA24364-B1/B2-L
Cleanroom suitability, measured according to ISO 14644-14Class 7 according to ISO 14644-1
Storage temperature-5, 50
Media temperature-5, 50
Ambient temperature-5, 50
Product weight479
Type of mountingWith accessories
Pneumatic connection, port 1G1/2
Pneumatic connection, port 2G1/2
Note on materialsRoHS compliant
Material underneath coverProcess automation
Material sealsNBR
Material rotary knobPOM
Material springHigh-alloy steel, Galvanised steel
Material housingReinforced PA
Material valve stemPOM
Accessories 123
Genuine accessories that can be used with the Festo MS6-LR-1/2-D6-A8-B motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.
| Part no | Description | Compatible motors |
|---|---|---|
| MS6-WRS | Hex nut · Mounting accessories | |
| MS6-WPE-B | Wall mounting kit · Mounting accessories | |
| MS6-MV1 | Module connector · Mounting accessories | |
| MS6-WR-B | Mounting bracket · Mounting accessories | |
| QS-G1/2-16 | Push-in fitting · Fittings | |
| QSL-G1/2-16 | Push-in L-fitting · Fittings | |
| PUN-H-16X2,5-NT | Plastic tubing · Tubes | |
| PUN-H-16X2,5-BL | Plastic tubing · Tubes | |
| PUN-H-16X2,5-SW | Plastic tubing · Tubes | |
| MA-40-10-1/8-EN | Pressure gauge · Connection accessories | |
| CK-1/2-PK-13 | Quick connector · Quick connectors | |
| LCK-1/2-PK-13 | Elbow quick connector · Quick connectors | |
| TCK-1/2-PK-13 | T quick connector · Quick connectors | |
| QSW-1/2-12 | Push-in fitting · Push-in fittings | |
| QSW-1/2-16 | Push-in fitting · Push-in fittings | |
| QS-1/2-12-20 | Push-in fitting · Push-in fittings | |
| QS-1/2-16-20 | Push-in fitting · Push-in fittings | |
| QSL-1/2-12-20 | Push-in L-fitting · Push-in fittings | |
| QSL-1/2-16-20 | Push-in L-fitting · Push-in fittings | |
| QS-G1/2-12-20 | Push-in fitting · Push-in fittings | |
| QS-G1/2-16-20 | Push-in fitting · Push-in fittings | |
| QSL-G1/2-12-20 | Push-in L-fitting · Push-in fittings | |
| QSL-G1/2-16-20 | Push-in L-fitting · Push-in fittings | |
| QS-1/2-10-50 | Push-in fitting · Push-in fittings | |
| QSL-1/2-10-50 | Push-in L-fitting · Push-in fittings | |
| QSY-1/2-10 | Push-in Y-fitting · Push-in fittings | |
| QS-1/2-12 | Push-in fitting · Push-in fittings | |
| QS-1/2-16 | Push-in fitting · Push-in fittings | |
| QS-1/2-12-I | Push-in fitting · Push-in fittings | |
| QSL-1/2-12 | Push-in L-fitting · Push-in fittings | |
| QSL-1/2-16 | Push-in L-fitting · Push-in fittings | |
| QSLL-1/2-12 | Push-in L-fitting, long · Push-in fittings | |
| QSLV-1/2-12 | Push-in L-fitting · Push-in fittings | |
| QSLV-1/2-16 | Push-in L-fitting · Push-in fittings | |
| QSLV-1/2-12-I | Push-in L-fitting · Push-in fittings | |
| QST-1/2-12 | Push-in T-fitting · Push-in fittings | |
| QST-1/2-16 | Push-in T-fitting · Push-in fittings | |
| QSTL-1/2-12 | Push-in T-fitting · Push-in fittings | |
| QSTL-1/2-16 | Push-in T-fitting · Push-in fittings | |
| QSY-1/2-12 | Push-in Y-fitting · Push-in fittings | |
| QSYL-1/2-12 | Push-in Y-fitting · Push-in fittings | |
| QSTF-1/2-12-B | Push-in T-fitting · Push-in fittings | |
| QSYLV-1/2-12 | Push-in Y-fitting · Push-in fittings | |
| QSYTF-1/2-12-B | Multiple distributor · Push-in fittings | |
| QSLV2-1/2-12 | Multiple distributor · Push-in fittings | |
| QSLV3-1/2-12 | Multiple distributor · Push-in fittings | |
| QSLV4-1/2-12 | Multiple distributor · Push-in fittings | |
| QSLV6-1/2-12 | Multiple distributor · Push-in fittings | |
| QSR-1/2-12 | Push-in fitting, rotatable · Push-in fittings | |
| QSRL-1/2-12 | Push-in L-fitting, rotatable · Push-in fittings | |
| QSK-1/2-12 | Push-in fitting, self-sealing · Push-in fittings | |
| QSKL-1/2-12 | Push-in L-fitting,self-sealing · Push-in fittings | |
| QS-V0-1/2-10 | Push-in fitting · Push-in fittings | |
| QS-V0-1/2-12 | Push-in fitting · Push-in fittings | |
| QST-V0-1/2-10 | Push-in T-fitting · Push-in fittings | |
| QST-V0-1/2-12 | Push-in T-fitting · Push-in fittings | |
| CQ-1/2-12 | Push-in fitting · Connection accessories | |
| CQ-1/2-15 | Push-in fitting · Connection accessories | |
| CQ-1/2-18 | Push-in fitting · Connection accessories | |
| QS-1/2-3/8-I-U-M | Push-in fitting · Push-in fittings | |
| QS-1/2-1/2-I-U-M | Push-in fitting · Push-in fittings | |
| QS-G1/2-12 | Push-in fitting · Push-in fittings | |
| QS-G1/2-12-I | Push-in fitting · Push-in fittings | |
| QSL-G1/2-12 | Push-in L-fitting · Push-in fittings | |
| QSLL-G1/2-12 | Push-in L-fitting, long · Push-in fittings | |
| QSLV-G1/2-12 | Push-in L-fitting · Push-in fittings | |
| QSLV-G1/2-16 | Push-in L-fitting · Push-in fittings | |
| QSLV-G1/2-12-I | Push-in L-fitting · Push-in fittings | |
| QST-G1/2-12 | Push-in T-fitting · Push-in fittings | |
| QST-G1/2-16 | Push-in T-fitting · Push-in fittings | |
| QSTL-G1/2-12 | Push-in T-fitting · Push-in fittings | |
| QSTL-G1/2-16 | Push-in T-fitting · Push-in fittings | |
| QSY-G1/2-12 | Push-in Y-fitting · Push-in fittings | |
| QSYL-G1/2-12 | Push-in Y-fitting · Push-in fittings | |
| QSTF-G1/2-12 | Push-in T-fitting · Push-in fittings | |
| QSYLV-G1/2-12 | Push-in Y-fitting · Push-in fittings | |
| QSYTF-G1/2-12 | Multiple distributor · Push-in fittings | |
| QSLV2-G1/2-12 | Multiple distributor · Push-in fittings | |
| QSLV3-G1/2-12 | Multiple distributor · Push-in fittings | |
| QSLV4-G1/2-12 | Multiple distributor · Push-in fittings | |
| QSLV6-G1/2-12 | Multiple distributor · Push-in fittings | |
| QSR-G1/2-12 | Push-in fitting, rotatable · Push-in fittings | |
| QSRL-G1/2-12 | Push-in L-fitting, rotatable · Push-in fittings | |
| QSK-G1/2-12 | Push-in fitting, self-sealing · Push-in fittings | |
| QSKL-G1/2-12 | Push-in L-fitting,self-sealing · Push-in fittings | |
| QS-V0-G1/2-10 | Push-in fitting · Push-in fittings | |
| QS-V0-G1/2-12 | Push-in fitting · Push-in fittings | |
| QST-V0-G1/2-10 | Push-in T-fitting · Push-in fittings | |
| QST-V0-G1/2-12 | Push-in T-fitting · Push-in fittings | |
| QS-1/2-10 | Push-in fitting · Push-in fittings | |
| QS-1/2-10-I | Push-in fitting · Push-in fittings | |
| QSL-1/2-10 | Push-in L-fitting · Push-in fittings | |
| QSLL-1/2-10 | Push-in L-fitting, long · Push-in fittings | |
| QSLL-G1/2-16 | Push-in L-fitting, long · Push-in fittings | |
| QST-1/2-10 | Push-in T-fitting · Push-in fittings | |
| MA-40-10-R1/8-E-RG | Pressure gauge · General accessories | |
| CK-1/2-PK-9 | Quick connector · Quick connectors | |
| NPFC-L-2G12-F | Elbow fitting · Push-in fittings | |
| NPFC-Y-3G12-F | Y-fitting · Push-in fittings | |
| NPFC-T-3G12-F | T-fitting · Push-in fittings | |
| NPFC-T-2G12-R12-FMF | T-fitting · Push-in fittings | |
| NPFC-T-G12-2R12-FMM | T-fitting · Push-in fittings | |
| NPFC-X-4G12-F | X-fitting · Push-in fittings | |
| NPFC-D-2G12-M | Double nipple · Push-in fittings | |
| NPFC-S-2G12-F | Sleeve · Push-in fittings | |
| NPFC-E1-2G12-FM | Extension · Push-in fittings | |
| NPFC-R-G12-G14-MF | Reducing nipple · Push-in fittings | |
| NPFC-R-G12-G38-MF | Reducing nipple · Push-in fittings | |
| NPFC-R-G12-G38-FM | Reducing nipple · Push-in fittings | |
| NPFC-D-2G12-M-P50 | Double nipple · Push-in fittings | |
| NPFC-D-G12-G34-M | Double nipple · Push-in fittings | |
| NPFC-R-G12-G18-F | Reducing sleeve · Push-in fittings | |
| NPFC-R-G12-G14-F | Reducing sleeve · Push-in fittings | |
| NPFC-R-G12-G38-F | Reducing sleeve · Push-in fittings | |
| NPFC-R-G12-G14-MF-P50 | Reducing nipple · Push-in fittings | |
| NPFC-R-G12-G38-MF-P50 | Reducing nipple · Push-in fittings | |
| NPFC-H-G12-F | Bulkhead fitting · Push-in fittings | |
| NPFC-DS-G14-G12-M | Double nipple · Push-in fittings | |
| NPFC-DS-G38-G12-M | Double nipple · Push-in fittings | |
| NPFC-DS-G12-G12-M | Double nipple · Push-in fittings | |
| NPFC-RS-G12-G14-MF | Reducing nipple · Push-in fittings | |
| NPFC-RS-G12-G38-MF | Reducing nipple · Push-in fittings | |
| MS6-MV1-F1A | Module connector · Mounting accessories |
