How can I get a price quote for Festo MS6-EE-AGF-V24?

You can request a fast quote for Festo MS6-EE-AGF-V24 from Yılsa Engineering. Reference part number YLS1C4YDUXXLFA. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Festo MS6-EE-AGF-V24 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Festo MS6-EE-AGF-V24 genuine and new?

Yes. This Festo product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Festo MS6-EE-AGF-V24?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

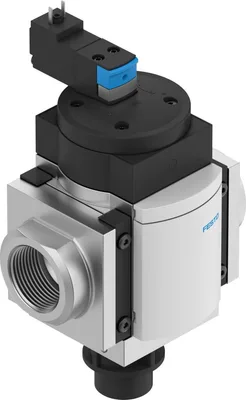

Festo MS6-EE-AGF-V24

On/off valve. Electric 3/2-way valve for pressurising and exhausting pneumatic installations. A silencer can be attached or the exhaust air ducted at port 3. Supply voltage 24 V DC, 110, 230 V AC. Optionally with pressure gauge and pressure sensor. With solenoid coil, without plug socket. Standard nominal flow rate <=6.500 l/min with grid dimension 62 mm

FestoMFR # MS6-EE-AGF-V24SKU # YLS1C4YDUXXLFA

SeriesMS

Size6

DesignPiston gate valve

Type of actuationElectrical

Exhaust-air functionCannot be throttled

Manual overrideDetenting, Non-detenting

Have questions?Chat on WhatsApp

About This Product

Festo MS6-EE-AGF-V24

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

SeriesMS

Size6

DesignPiston gate valve

Type of actuationElectrical

Exhaust-air functionCannot be throttled

Manual overrideDetenting, Non-detenting

Type of resetMechanical spring

Type of pilotingPiloted

Symbol00991008

Valve function3/2-way, single solenoid, closed

Operating pressure0.4, 1.8

Operating pressure4, 18

lapOverlap

C value29

b value0.4

Standard nominal flow rate (standardised to DIN 1343)7000

Duty cycle100%

Characteristic coil data24 V DC: 1.5 W

Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4], Inert gas

Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)

Corrosion resistance class CRC2 - Moderate corrosion stress

Note on materialsRoHS compliant

LABS (PWIS) conformityVDMA24364-B1/B2-L

Media temperature-10, 60

Degree of protectionIP65

Ambient temperature-10, 60

Suitable for use with foodSee supplementary material information

Type of mountingEither:, Inline installation, With accessories

Mounting positionAny

Flow directionNon-reversible

Product weight1040

Pneumatic connection, port 1G1

Pneumatic connection, port 2G1

Pneumatic connection, port 3G1/2

Pilot air supplyInternal

Electrical connectionTo EN 175301-803

Material sealsNBR

Material housingDie-cast aluminium

Accessories 22

Genuine accessories that can be used with the Festo MS6-EE-AGF-V24 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
MEB-LD-12-24DC	Illuminating seal · Electrical accessories
MSSD-EB	Plug socket · Electrical accessories
KMEB-1-24-2.5-LED	Plug socket with cable · Electrical accessories
KMEB-1-24-5-LED	Plug socket with cable · Electrical accessories
KMEB-1-24-10-LED	Plug socket with cable · Electrical accessories
MS6-WP-F1A	Mounting bracket · Mounting accessories
MS6-AGF	Connecting plate SET · Mounting accessories
MS6-WP-EX	Mounting bracket · Mounting accessories
KMEB-3-24-2.5-LED	Plug socket with cable · Electrical accessories
KMEB-3-24-5-LED	Plug socket with cable · Electrical accessories
KMEB-3-24-2.5	Plug socket with cable · Electrical accessories
KMEB-3-24-5	Plug socket with cable · Electrical accessories
MS6-WPM-D	Mounting bracket · Mounting accessories
MS6-AGB	Sub-base-SET · Mounting accessories
MS6-AGD	Sub-base-SET · Mounting accessories
MS6-AGC	Sub-base-SET · Mounting accessories
MS6-AGE	Sub-base-SET · Mounting accessories
MS6-WPM-2D	Mounting bracket · Mounting accessories
MS6-WB	Mounting bracket · Mounting accessories
MS6-WP	Mounting bracket · Mounting accessories
MS6-AEND1	Mounting plate · Mounting accessories
MS6-END	Cover cap · Mounting accessories
