How can I get a price quote for FESTO KMEB-3-24-5-LED?

You can request a fast quote for FESTO KMEB-3-24-5-LED from Yılsa Engineering. Reference part number CEY-937FC781EC33. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is FESTO KMEB-3-24-5-LED in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is FESTO KMEB-3-24-5-LED genuine and new?

Yes. This FESTO product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for FESTO KMEB-3-24-5-LED?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

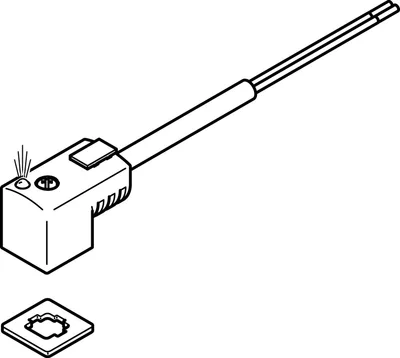

FESTO KMEB-3-24-5-LED

Plug socket with cable. For solenoid coils with plug pattern type C according to EN 175301-803. For EB solenoid coils. Cable length 0.5 ... 10 m. With PVC or PUR cable. Ambient temperature -20 ... +80 °C

FESTOMFR # KMEB-3-24-5-LEDSKU # CEY-937FC781EC33

Signal status displayYellow LED

Mounting positionAny

Product weight230

Electrical connection 1Socket, to EN 175301-803, type C

Electrical connection 1, designSquare

Electrical connection 1, connection typeSocket

Have questions?Chat on WhatsApp

About This Product

FESTO KMEB-3-24-5-LED

Genuine, certified FESTO product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Signal status displayYellow LED

Mounting positionAny

Product weight230

Electrical connection 1Socket, to EN 175301-803, type C

Electrical connection 1, designSquare

Electrical connection 1, connection typeSocket

Electrical connection 1, cable outletAngled

Electrical connection 1, note on cable outlet90°

Electrical connection 1, number of connections/cores2

Electrical connection 1, type of mountingOn solenoid valve via M2.5 central screw

Electrical connection 2, connector systemOpen end

Electrical connection 2, number of connections/cores2

Nominal operating voltage DC24

Reverse polarity protectionFor all electrical connections

Protective conductor connectionNot provided

Cable length5

Cable characteristicStandard

Cable diameter5.2

Cable structure2 x 0.75 mm²

Wire endsWire ferrule

Degree of protectionIP65, To IEC 60529

Ambient temperature-20, 80

CE mark (see declaration of conformity)In accordance with EU RoHS Directive

UKCA marking (see declaration of conformity)To UK RoHS instructions

LABS (PWIS) conformityVDMA24364-B2-L

Pollution degree3

Corrosion resistance class CRC1 - Low corrosion stress

Material cable sheathPVC

Material housingMakrolon®

Material sealsNBR

Material electrical contactSilver-plated copper alloy

Accessories 2

Genuine accessories that can be used with the FESTO KMEB-3-24-5-LED motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.
