How can I get a price quote for FESTO MS4-FRM-FRZ?

You can request a fast quote for FESTO MS4-FRM-FRZ from Yılsa Engineering. Reference part number CEY-937FC781EB1B. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is FESTO MS4-FRM-FRZ in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is FESTO MS4-FRM-FRZ genuine and new?

Yes. This FESTO product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for FESTO MS4-FRM-FRZ?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

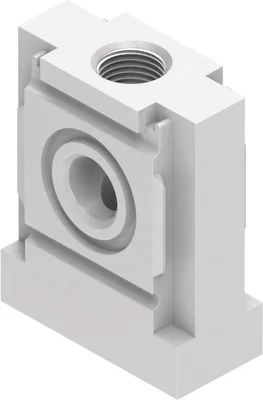

Photo may not represent actual item. Refer to name and product specs for all details.

FESTO MS4-FRM-FRZ

Distributor block. Grid dimension 40mm. Slim compressed air distributor. Outlet at top and bottom. Can be used as an intermediate distributor for varying air qualities. Can be used as an adapter between two pressure regulators size 4 with pressure gauge with large rotary knob

FESTOMFR # MS4-FRM-FRZSKU # CEY-937FC781EB1B

Mounting positionAny

DesignBranching module

Symbol00991510

Operating pressure0, 14

Approvalc UL us - Recognised (Oil)

Corrosion resistance class CRC2 - Moderate corrosion stress

Have questions?Chat on WhatsApp

About This Product

FESTO MS4-FRM-FRZ

Genuine, certified FESTO product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Mounting positionAny

DesignBranching module

Symbol00991510

Operating pressure0, 14

Standard nominal flow rate in main flow direction 1->24050

Standard nominal flow rate, outlet upwards3250

Standard nominal flow rate, outlet downwards2900

Approvalc UL us - Recognised (Oil)

Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4], Inert gas

Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)

Corrosion resistance class CRC2 - Moderate corrosion stress

LABS (PWIS) conformityVDMA24364-B1/B2-L

Storage temperature-10, 60

Media temperature-10, 60

Ambient temperature-10, 60

Product weight60

Pneumatic connection, port 3G1/4

Pneumatic connection, port 4G1/4

Note on materialsRoHS compliant

Material housingDie-cast aluminium

Accessories 9

Genuine accessories that can be used with the FESTO MS4-FRM-FRZ motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
MS4-WP	Mounting bracket · Mounting accessories
QS-G1/4-10	Push-in fitting · Fittings
PUN-H-10X1,5-SW	Plastic tubing · Tubes
MS4-WB	Mounting bracket · Mounting accessories
PUN-H-10X1,5-NT	Plastic tubing · Tubes
PUN-H-10X1,5-TBL	Plastic tubing · Tubes
QS-G1/4-10-I	Push-in fitting · Fittings
PUN-H-10X1,5-BL	Plastic tubing · Tubes
QSL-G1/4-10	Push-in L-fitting · Fittings
