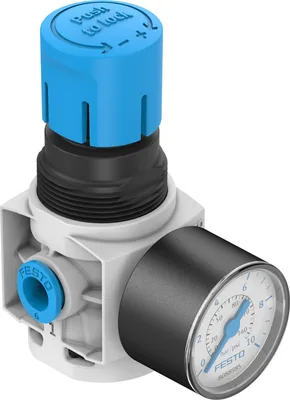

Festo MS2-LR-QS6-D6-AR-BAR-F1A-B

Photo may not represent actual item. Refer to name and product specs for all details.

Festo MS2-LR-QS6-D6-AR-BAR-F1A-B

Pressure regulator. Grid dimension 25, 40, 62 mm. Competitively priced basic component focused on the most important technical functions. Lightweight and sturdy thanks to modern polymer materials. Compatible with the MS series for the ideal combination of low-cost basic functionality and high-end functional requirements. Stabile control response. With or without pressure gauge. Rotary knob with latch. With integrated secondary exhausting and primary exhausting with return flow function. MS2: Directly operated diaphragm regulator. MS4, MS6: directly actuated piston regulator. Sustainable operation thanks to reduced pressure level

FestoMFR # MS2-LR-QS6-D6-AR-BAR-F1A-BSKU # YLSDCU36FW0YKET
Size2
SeriesMS
Actuator lockRotary knob with detent
Mounting positionAny
DesignDirectly actuated diaphragm regulator
Symbol00991558
Share
Have questions?Chat on WhatsApp

About This Product

Pressure regulator. Grid dimension 25, 40, 62 mm. Competitively priced basic component focused on the most important technical functions. Lightweight and sturdy thanks to modern polymer materials. Compatible with the MS series for the ideal combination of low-cost basic functionality and high-end functional requirements. Stabile control response. With or without pressure gauge. Rotary knob with latch. With integrated secondary exhausting and primary exhausting with return flow function. MS2: Directly operated diaphragm regulator. MS4, MS6: directly actuated piston regulator. Sustainable operation thanks to reduced pressure level

Festo MS2-LR-QS6-D6-AR-BAR-F1A-B

  • Genuine, certified Festo product
  • Fast sourcing through a worldwide supply network
  • Product selection and compatibility support from our technical team
  • Equivalent and alternative product suggestions
  • Quotation and lead time tailored to your request

Specifications

Size2
SeriesMS
Actuator lockRotary knob with detent
Mounting positionAny
DesignDirectly actuated diaphragm regulator
Controller functionOutput pressure constant, With secondary exhausting, With return flow function
Symbol00991558
Displayable unitsbar, psi
Pressure gauge (ANALOG) or Pressure display (DIGITAL)With pressure gauge
Operating pressure0.1, 0.8
Operating pressure1, 8
Pressure regulation range0.5, 7
Max. pressure hysteresis0.025
Max. pressure hysteresis0.25
Max. pressure hysteresis3.625
Standard nominal flow rate (standardised to DIN 1343)350
Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4], Inert gas
Corrosion resistance class CRC1 - Low corrosion stress
LABS (PWIS) conformityVDMA24364-B1/B2-L
Suitability for the production of Li-ion batteriesSuitable for battery production with reduced Cu/Zn/Ni values (F1a)
Cleanroom suitability, measured according to ISO 14644-14Class 6 according to ISO 14644-1
Storage temperature-5, 50
Media temperature-5, 50
Ambient temperature-5, 50
Product weight36.1
Type of mountingWith accessories
Pneumatic connection, port 1QS-6
Pneumatic connection, port 2QS-6
Note on materialsRoHS compliant
Material underneath coverProcess automation
Material sealsNBR
Material rotary knobPOM
Material springHigh-alloy steel
Material housingReinforced PA
Material membraneNBR
Material valve stemWrought aluminium alloy, NBR

Accessories 77

Genuine accessories that can be used with the Festo MS2-LR-QS6-D6-AR-BAR-F1A-B motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part noDescriptionCompatible motors
PUN-H-6X1-NTPlastic tubing · Tubes
MS2-G18SPlug screw · Mounting accessories
PUN-H-6X1-BLPlastic tubing · Tubes
MS2-WR-F1A-BMounting bracket · Mounting accessories
PUN-H-6X1-SWPlastic tubing · Tubes
PUN-H-6X1-TBLPlastic tubing · Tubes
PUN-6X1-SIPlastic tubing · Tubing
PAN-6X1-SIPlastic tubing · Tubing
PUN-6X1-DUO-SIDUO tubing · Tubing
PUN-6X1-BLPlastic tubing · Tubing
PUN-6X1-SWPlastic tubing · Tubing
PUN-6X1-DUO-BSDUO tubing · Tubing
PUN-6X1-RTPlastic tubing · Tubing
PUN-6X1-GEPlastic tubing · Tubing
PUN-6X1-GNPlastic tubing · Tubing
PLN-6X1-NTPlastic tubing · Tubing
PLN-6X1-SWPlastic tubing · Tubing
PUN-H-6X1-DUODUO tubing · Tubing
PUN-6X1-S-1-BLSpiral plastic tubing · Tubing
PUN-6X1-S-2-BLSpiral plastic tubing · Tubing
PUN-6X1-S-6-BLSpiral plastic tubing · Tubing
PUN-6X1-S-1-SWSpiral plastic tubing · Tubing
PUN-6X1-S-2-SWSpiral plastic tubing · Tubing
PUN-6X1-S-6-SWSpiral plastic tubing · Tubing
PUN-6X1-S-1-DUO-BSDUO spiral plastic tubing · Tubing
PUN-6X1-S-2-DUO-BSDUO spiral plastic tubing · Tubing
PUN-6X1-S-6-DUO-BSDUO spiral plastic tubing · Tubing
PUN-6X1-SI-500Plastic tubing · Tubing
PUN-6X1-BL-500Plastic tubing · Tubing
PEN-6X1-SWPlastic tubing · Tubing
PEN-6X1-NTPlastic tubing · Tubing
PAN-6X1-NTPlastic tubing · Tubing
PEN-6X1-SW-500Plastic tubing · Tubing
PEN-6X1-BL-500Plastic tubing · Tubing
PEN-6X1-SI-500Plastic tubing · Tubing
PEN-6X1-BLPlastic tubing · Tubing
PEN-6X1-SIPlastic tubing · Tubing
PEN-6X1-GNPlastic tubing · Tubing
PEN-6X1-RTPlastic tubing · Tubing
PEN-6X1-GEPlastic tubing · Tubing
PAN-6X1-SI-500Plastic tubing · Tubing
PAN-6X1-BL-500Plastic tubing · Tubing
PAN-6X1-SW-500Plastic tubing · Tubing
PAN-6X1-BLPlastic tubing · Tubing
PAN-6X1-SWPlastic tubing · Tubing
PAN-6X1-GNPlastic tubing · Tubing
PAN-6X1-RTPlastic tubing · Tubing
PAN-6X1-GEPlastic tubing · Tubing
PUN-6X1-SW-500Plastic tubing · Tubing
PLN-6X1-BLPlastic tubing · Tubing
PLN-6X1-SIPlastic tubing · Tubing
PLN-6X1-RTPlastic tubing · Tubing
PUN-H-6X1-SW-500Plastic tubing · Tubing
PUN-H-6X1-BL-500Plastic tubing · Tubing
PUN-H-6X1-NT-500Plastic tubing · Tubing
PUN-H-6X1-SI-500Plastic tubing · Tubing
PUN-H-6X1-SIPlastic tubing · Tubing
PUN-H-6X1-RTPlastic tubing · Tubing
PUN-H-6X1-GNPlastic tubing · Tubing
PUN-H-6X1-GEPlastic tubing · Tubing
PUN-H-6X1-TBL-500Plastic tubing · Tubing
PUN-H-6X1-TSWPlastic tubing · Tubing
PUN-H-6X1-TSW-500Plastic tubing · Tubing
PUN-H-6X1-TRTPlastic tubing · Tubing
PUN-H-6X1-TRT-500Plastic tubing · Tubing
PUN-H-6X1-TGNPlastic tubing · Tubing
PUN-H-6X1-TGN-500Plastic tubing · Tubing
PUN-H-6X1-TGEPlastic tubing · Tubing
PUN-H-6X1-TGE-500Plastic tubing · Tubing
MS2-WRSNut · Mounting accessories
PUN-H-F-6X1-RTPlastic tubing · Tubing
PUN-H-F-6X1-BLPlastic tubing · Tubing
PUN-H-F-6X1-TBLPlastic tubing · Tubing
PUN-H-F-6X1-GNPlastic tubing · Tubing
PUN-H-F-6X1-GEPlastic tubing · Tubing
PUN-H-F-6X1-SWPlastic tubing · Tubing
PUN-H-F-6X1-NTPlastic tubing · Tubing
