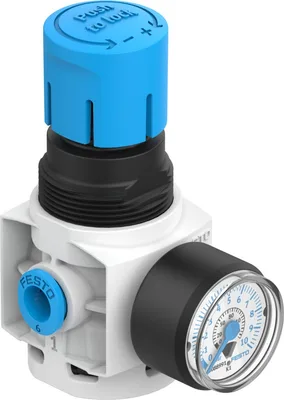

Festo MS2-LR-QS6-D6-AR-BAR-B
Pressure regulator. Grid dimension 25, 40, 62 mm. Competitively priced basic component focused on the most important technical functions. Lightweight and sturdy thanks to modern polymer materials. Compatible with the MS series for the ideal combination of low-cost basic functionality and high-end functional requirements. Stabile control response. With or without pressure gauge. Rotary knob with latch. With integrated secondary exhausting and primary exhausting with return flow function. MS2: Directly operated diaphragm regulator. MS4, MS6: directly actuated piston regulator. Sustainable operation thanks to reduced pressure level
Size2
SeriesMS
Actuator lockRotary knob with detent
Mounting positionAny
DesignDirectly actuated diaphragm regulator
Symbol00991558
About This Product
Pressure regulator. Grid dimension 25, 40, 62 mm. Competitively priced basic component focused on the most important technical functions. Lightweight and sturdy thanks to modern polymer materials. Compatible with the MS series for the ideal combination of low-cost basic functionality and high-end functional requirements. Stabile control response. With or without pressure gauge. Rotary knob with latch. With integrated secondary exhausting and primary exhausting with return flow function. MS2: Directly operated diaphragm regulator. MS4, MS6: directly actuated piston regulator. Sustainable operation thanks to reduced pressure level
Festo MS2-LR-QS6-D6-AR-BAR-B
- Genuine, certified Festo product
- Fast sourcing through a worldwide supply network
- Product selection and compatibility support from our technical team
- Equivalent and alternative product suggestions
- Quotation and lead time tailored to your request
Specifications
Size2
SeriesMS
Actuator lockRotary knob with detent
Mounting positionAny
DesignDirectly actuated diaphragm regulator
Controller functionOutput pressure constant, With secondary exhausting, With return flow function
Symbol00991558
Displayable unitsbar, psi
Pressure gauge (ANALOG) or Pressure display (DIGITAL)With pressure gauge
Operating pressure0.1, 0.8
Operating pressure1, 8
Pressure regulation range0.5, 7
Max. pressure hysteresis0.025
Max. pressure hysteresis0.25
Max. pressure hysteresis3.625
Standard nominal flow rate (standardised to DIN 1343)350
Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4], Inert gas
Corrosion resistance class CRC1 - Low corrosion stress
LABS (PWIS) conformityVDMA24364-B1/B2-L
Cleanroom suitability, measured according to ISO 14644-14Class 6 according to ISO 14644-1
Storage temperature-5, 50
Media temperature-5, 50
Ambient temperature-5, 50
Product weight36.1
Type of mountingWith accessories
Pneumatic connection, port 1QS-6
Pneumatic connection, port 2QS-6
Note on materialsRoHS compliant
Material underneath coverProcess automation
Material sealsNBR
Material rotary knobPOM
Material springHigh-alloy steel
Material housingReinforced PA
Material membraneNBR
Material valve stemWrought aluminium alloy, NBR
Accessories 77
Genuine accessories that can be used with the Festo MS2-LR-QS6-D6-AR-BAR-B motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.
| Part no | Description | Compatible motors |
|---|---|---|
| PUN-H-6X1-NT | Plastic tubing · Tubes | |
| PUN-H-6X1-BL | Plastic tubing · Tubes | |
| PUN-H-6X1-SW | Plastic tubing · Tubes | |
| PUN-H-6X1-TBL | Plastic tubing · Tubes | |
| MS2-WR-B | Mounting bracket · Mounting accessories | |
| MS2-G18S | Plug screw · Mounting accessories | |
| MS2-WRS | Nut · Mounting accessories | |
| PUN-6X1-SI | Plastic tubing · Tubing | |
| PAN-6X1-SI | Plastic tubing · Tubing | |
| PUN-6X1-DUO-SI | DUO tubing · Tubing | |
| PUN-6X1-BL | Plastic tubing · Tubing | |
| PUN-6X1-SW | Plastic tubing · Tubing | |
| PUN-6X1-DUO-BS | DUO tubing · Tubing | |
| PUN-6X1-RT | Plastic tubing · Tubing | |
| PUN-6X1-GE | Plastic tubing · Tubing | |
| PUN-6X1-GN | Plastic tubing · Tubing | |
| PLN-6X1-NT | Plastic tubing · Tubing | |
| PLN-6X1-SW | Plastic tubing · Tubing | |
| PUN-H-6X1-DUO | DUO tubing · Tubing | |
| PUN-6X1-S-1-BL | Spiral plastic tubing · Tubing | |
| PUN-6X1-S-2-BL | Spiral plastic tubing · Tubing | |
| PUN-6X1-S-6-BL | Spiral plastic tubing · Tubing | |
| PUN-6X1-S-1-SW | Spiral plastic tubing · Tubing | |
| PUN-6X1-S-2-SW | Spiral plastic tubing · Tubing | |
| PUN-6X1-S-6-SW | Spiral plastic tubing · Tubing | |
| PUN-6X1-S-1-DUO-BS | DUO spiral plastic tubing · Tubing | |
| PUN-6X1-S-2-DUO-BS | DUO spiral plastic tubing · Tubing | |
| PUN-6X1-S-6-DUO-BS | DUO spiral plastic tubing · Tubing | |
| PUN-6X1-SI-500 | Plastic tubing · Tubing | |
| PUN-6X1-BL-500 | Plastic tubing · Tubing | |
| PEN-6X1-SW | Plastic tubing · Tubing | |
| PEN-6X1-NT | Plastic tubing · Tubing | |
| PAN-6X1-NT | Plastic tubing · Tubing | |
| PEN-6X1-SW-500 | Plastic tubing · Tubing | |
| PEN-6X1-BL-500 | Plastic tubing · Tubing | |
| PEN-6X1-SI-500 | Plastic tubing · Tubing | |
| PEN-6X1-BL | Plastic tubing · Tubing | |
| PEN-6X1-SI | Plastic tubing · Tubing | |
| PEN-6X1-GN | Plastic tubing · Tubing | |
| PEN-6X1-RT | Plastic tubing · Tubing | |
| PEN-6X1-GE | Plastic tubing · Tubing | |
| PAN-6X1-SI-500 | Plastic tubing · Tubing | |
| PAN-6X1-BL-500 | Plastic tubing · Tubing | |
| PAN-6X1-SW-500 | Plastic tubing · Tubing | |
| PAN-6X1-BL | Plastic tubing · Tubing | |
| PAN-6X1-SW | Plastic tubing · Tubing | |
| PAN-6X1-GN | Plastic tubing · Tubing | |
| PAN-6X1-RT | Plastic tubing · Tubing | |
| PAN-6X1-GE | Plastic tubing · Tubing | |
| PUN-6X1-SW-500 | Plastic tubing · Tubing | |
| PLN-6X1-BL | Plastic tubing · Tubing | |
| PLN-6X1-SI | Plastic tubing · Tubing | |
| PLN-6X1-RT | Plastic tubing · Tubing | |
| PUN-H-6X1-SW-500 | Plastic tubing · Tubing | |
| PUN-H-6X1-BL-500 | Plastic tubing · Tubing | |
| PUN-H-6X1-NT-500 | Plastic tubing · Tubing | |
| PUN-H-6X1-SI-500 | Plastic tubing · Tubing | |
| PUN-H-6X1-SI | Plastic tubing · Tubing | |
| PUN-H-6X1-RT | Plastic tubing · Tubing | |
| PUN-H-6X1-GN | Plastic tubing · Tubing | |
| PUN-H-6X1-GE | Plastic tubing · Tubing | |
| PUN-H-6X1-TBL-500 | Plastic tubing · Tubing | |
| PUN-H-6X1-TSW | Plastic tubing · Tubing | |
| PUN-H-6X1-TSW-500 | Plastic tubing · Tubing | |
| PUN-H-6X1-TRT | Plastic tubing · Tubing | |
| PUN-H-6X1-TRT-500 | Plastic tubing · Tubing | |
| PUN-H-6X1-TGN | Plastic tubing · Tubing | |
| PUN-H-6X1-TGN-500 | Plastic tubing · Tubing | |
| PUN-H-6X1-TGE | Plastic tubing · Tubing | |
| PUN-H-6X1-TGE-500 | Plastic tubing · Tubing | |
| PUN-H-F-6X1-RT | Plastic tubing · Tubing | |
| PUN-H-F-6X1-BL | Plastic tubing · Tubing | |
| PUN-H-F-6X1-TBL | Plastic tubing · Tubing | |
| PUN-H-F-6X1-GN | Plastic tubing · Tubing | |
| PUN-H-F-6X1-GE | Plastic tubing · Tubing | |
| PUN-H-F-6X1-SW | Plastic tubing · Tubing | |
| PUN-H-F-6X1-NT | Plastic tubing · Tubing |
