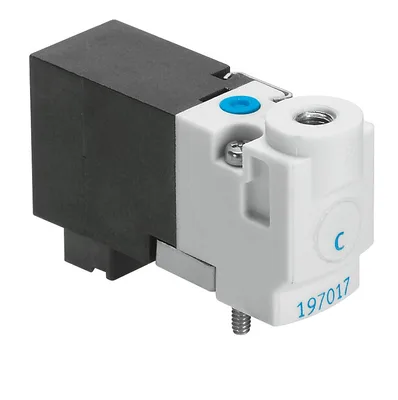

Photo may not represent actual item. Refer to name and product specs for all details.

Festo MHP1-M4H-2/2G-M3-PI

Solenoid valve. Directly actuated poppet valve. Miniature valve: grid dimension 10 mm. Switching times down to 4 ms. Sub-base valve. Manifold block for 2 ... 10 valves. Use as a pilot valve. UL certification; same connections and cables as for the VUVG

FestoMFR # MHP1-M4H-2/2G-M3-PISKU # CEY-937FC7821464

Valve function2/2-way, single solenoid, closed

Type of actuationElectrical

Construction width10

pneumatic working portM3

Operating voltage5 V DC

Operating pressure-0.09, 0.2

Have questions?Chat on WhatsApp

About This Product

Festo MHP1-M4H-2/2G-M3-PI

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Valve function2/2-way, single solenoid, closed

Type of actuationElectrical

Construction width10

Standard nominal flow rate (standardised to DIN 1343)14

pneumatic working portM3

Operating voltage5 V DC

Operating pressure-0.09, 0.2

Operating pressure-0.9, 2

Operating pressure-13.05, 29

DesignPoppet valve with spring return

Type of resetMechanical spring

Degree of protectionIP40

Approvalc UL us - Recognised (Oil)

Certificate issuing authorityUL MH19482

Nominal size0.9

Grid dimension10

Exhaust-air functionCannot be throttled

Sealing principleSoft

Mounting positionAny

Manual overrideNon-detenting

Type of pilotingDirect

Flow directionNon-reversible

Symbol00991398

Valve position codeLabel

lapUnderlap

Note on forced dynamizationSwitching frequency min. 1/week

Suitability for vacuumYes

Max. switching frequency20

Switching time off5

Switching time on4

Duty cycle100%

Electrical power consumption1

Characteristic coil data5 V DC: 1.0 W

Permissible voltage fluctuations+/-10%

Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]

Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)

Vibration resistanceTransport application test with severity level 2 to FN 942017-4 and EN 60068-2-6

Shock resistanceShock test with severity level 2 to FN 942017-5 and EN 60068-2-27

Corrosion resistance class CRC2 - Moderate corrosion stress

LABS (PWIS) conformityVDMA24364-B2-L

Cleanroom suitability, measured according to ISO 14644-14Class 5 according to ISO 14644-1

Storage temperature-20, 60

Media temperature-5, 40

Ambient temperature-5, 40

Product weight10

Electrical connectionPlug

Type of mountingOn sub-base, With through-hole

Pneumatic connection, port 1Sub-base

Pneumatic connection, port 2M3

Note on materialsRoHS compliant

Material sealsFluoro rubber, HNBR, NBR

Material housingReinforced PPS

Accessories 28

Genuine accessories that can be used with the Festo MHP1-M4H-2/2G-M3-PI motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
AMTE-M-LH-M3	Silencer · Silencer
QSM-M3-4	Push-in fitting · Fittings
QSM-M3-4-I	Push-in fitting · Fittings
CN-M3-PK-2	Barbed fitting · Barbed fittings
CN-M3-PK-3	Barbed fitting · Barbed fittings
LCN-M3-PK-2-B	Barbed elbow fitting · Barbed fittings
TCN-M3-PK-2	Barbed T-fitting · Barbed fittings
LCN-M3-PK-3	Barbed elbow fitting · Barbed fittings
TCN-M3-PK-3	Barbed T-fitting · Barbed fittings
QSML-M3-3-100	Push-in L-fitting · Push-in fittings
QSML-M3-4-100	Push-in L-fitting · Push-in fittings
QSM-M3-3-100	Push-in fitting · Push-in fittings
QSM-M3-4-100	Push-in fitting · Push-in fittings
QSM-M3-3-I-R-100	Push-in fitting · Push-in fittings
QSM-M3-4-I-R-100	Push-in fitting · Push-in fittings
QSM-M3-4-I-R	Push-in fitting · Push-in fittings
QSMLL-M3-3-100	Push-in L-fitting, long · Push-in fittings
QSM-M3-3	Push-in fitting · Push-in fittings
QSM-M3-3-I	Push-in fitting · Push-in fittings
QSML-M3-3	Push-in L-fitting · Push-in fittings
QSML-M3-4	Push-in L-fitting · Push-in fittings
QSMLL-M3-3	Push-in L-fitting, long · Push-in fittings
MHP1-P2-2-PI	Manifold block · Connection accessories
MHP1-P4-2-PI	Manifold block · Connection accessories
MHP1-P6-2-PI	Manifold block · Connection accessories
MHP1-P8-2-PI	Manifold block · Connection accessories
MHP1-P10-2-PI	Manifold block · Connection accessories
MH-BZ-80X	Inscription label · General accessories
