How can I get a price quote for FESTO MHJ9-MF?

You can request a fast quote for FESTO MHJ9-MF from Yılsa Engineering. Reference part number CEY-937FC781E399. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is FESTO MHJ9-MF in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is FESTO MHJ9-MF genuine and new?

Yes. This FESTO product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for FESTO MHJ9-MF?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

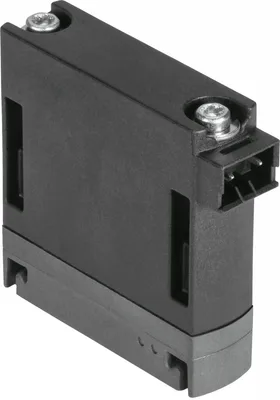

FESTO MHJ9-MF

Solenoid valve. Directly actuated poppet valve. Identical basic valves for direct mounting or manifold installation. Individual valve with integrated plug connection. Switching frequencies up to 1000 Hz. Very good reproducibility. MHJ9: Valve manifold assembly with individual outputs or with air nozzle output. MHJ9: Electrical connection via connecting cable MHJ9-KMH with integrated control electronics. MHJ10: Valve manifold assembly with individual outputs. MHJ10: Electrical connection via moulded-in cable, control electronics included in the valve

FESTOMFR # MHJ9-MFSKU # CEY-937FC781E399

Valve function2/2-way, single solenoid, closed

Type of actuationElectrical

Construction width9

pneumatic working portSub-base

Operating voltage24 V DC

Operating pressure0.05, 0.6

Have questions?Chat on WhatsApp

About This Product

FESTO MHJ9-MF

Genuine, certified FESTO product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Valve function2/2-way, single solenoid, closed

Type of actuationElectrical

Construction width9

Standard nominal flow rate (standardised to DIN 1343)100

pneumatic working portSub-base

Operating voltage24 V DC

Operating pressure0.05, 0.6

Operating pressure0.5, 6

Operating pressure7.25, 87

DesignPoppet valve without spring return

Type of resetPneumatic spring

Degree of protectionIP40

Grid dimension9.5

Note on operationDo not operate without flow., For block mounting with flow, max. ambient temperature 45°C.

Sealing principleHard

Mounting positionAny

Manual overrideNone

Type of pilotingDirect

Flow directionNon-reversible

Symbol00992259

b value0.38

C value0.4

Max. switching frequency1000

Switching time on 0.4 MPa (4 bar, 58 psi) and 24 V in new condition0.8

Switching time off 0.4 MPa (4 bar, 58 psi) and 24 V in new condition0.4

Switching time on 0.4 MPa (4 bar, 58 psi) and 48 V in new condition0.6

Switching time off 0.4 MPa (4 bar, 58 psi) and 48 V in new condition0.4

Switching time on 0.4 MPa (4 bar, 58 psi) and 12 V in new condition1.1

Switching time off 0.4 MPa (4 bar, 58 psi)and 12 V in new condition0.4

Switching time on 0.05 MPa (0.5 bar, 7.25 psi) and 24 V in new condition0.7

Switching time off 0.05 MPa (0.5 bar, 7.25 psi) and 24 V in new condition0.5

Switching time on 0.6 MPa (6 bar, 87 psi) and 24 V in new condition0.9

Switching time off 0.6 MPa (6 bar, 87 psi) and 24 V in new condition0.4

Tolerance switching time off+15%/-25%

Tolerance switching time on+/-15 %

Operational voltage range DC12, 53

Duty cycle100%

Note regarding operating voltageOperation only with connecting cable MHJ9-KMH-...

Coil resistance R202.5

Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]

Note on operating and pilot mediumLubricated operation not possible

Restrictions for environmental and media temperatureAs a function of switching frequency (see graph)

Corrosion resistance class CRC2 - Moderate corrosion stress

LABS (PWIS) conformityVDMA24364-B2-L

Storage temperature-20, 50

Permissible solenoid surface temperature120

Media temperature-5, 60

Ambient temperature-5, 60

Max. tightening torque for valve mounting0.28

Product weight25

Electrical connection2-pin, Plug KMH

Type of mountingOn sub-base

Pneumatic connection, port 1Sub-base

Pneumatic connection, port 2Sub-base

Note on materialsRoHS compliant

Material sealsHNBR

Material housingReinforced PA

Material screwsSteel
