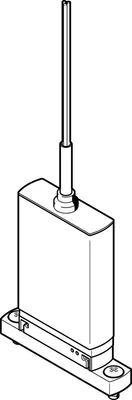

FESTO MHJ10-S-2,5-MF

Solenoid valve. Directly actuated poppet valve. Identical basic valves for direct mounting or manifold installation. Individual valve with integrated plug connection. Switching frequencies up to 1000 Hz. Very good reproducibility. MHJ9: Valve manifold assembly with individual outputs or with air nozzle output. MHJ9: Electrical connection via connecting cable MHJ9-KMH with integrated control electronics. MHJ10: Valve manifold assembly with individual outputs. MHJ10: Electrical connection via moulded-in cable, control electronics included in the valve

FESTOMFR # MHJ10-S-2,5-MFSKU # CEY-937FC781CF97

Valve function2/2-way, single solenoid, closed

Type of actuationElectrical

Construction width10

pneumatic working portSub-base

Operating voltage24 V DC

Operating pressure0.05, 0.6

Have questions?Chat on WhatsApp

About This Product

FESTO MHJ10-S-2,5-MF

Genuine, certified FESTO product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Valve function2/2-way, single solenoid, closed

Type of actuationElectrical

Construction width10

Standard nominal flow rate (standardised to DIN 1343)100

pneumatic working portSub-base

Operating voltage24 V DC

Operating pressure0.05, 0.6

Operating pressure0.5, 6

Operating pressure7.25, 87

DesignPoppet valve without spring return

Type of resetPneumatic spring

Degree of protectionIP55

ApprovalRCM

CE mark (see declaration of conformity)To EU EMC Directive, In accordance with EU RoHS Directive

UKCA marking (see declaration of conformity)To UK RoHS instructions

Grid dimension10.5

Note on operationFixed power supply must be able to supply at least 1.7 A without voltage drop, Do not operate without flow., For block mounting with flow, max. ambient temperature 45°C.

Sealing principleHard

Mounting positionAny

Manual overrideNone

Type of pilotingDirect

Flow directionNon-reversible

Symbol00992259

Reverse polarity protectionFor operating voltage

Additional functionsSpark arresting, Holding current reduction with energy recovery, Safety shut-off

b value0.38

C value0.4

Max. switching frequency1000

Switching time on 0.4 MPa (4 bar, 58 psi) and 24 V in new condition0.8

Switching time off 0.4 MPa (4 bar, 58 psi) and 24 V in new condition0.4

Switching time on 0.05 MPa (0.5 bar, 7.25 psi) and 24 V in new condition0.8

Switching time off 0.05 MPa (0.5 bar, 7.25 psi) and 24 V in new condition0.5

Switching time on 0.6 MPa (6 bar, 87 psi) and 24 V in new condition0.9

Switching time off 0.6 MPa (6 bar, 87 psi) and 24 V in new condition0.4

Tolerance switching time off+15%/-25%

Tolerance switching time on+/-15 %

Operational voltage range DC21.6, 26.4

Input resistance34

Duty cycle100%

Characteristic coil data24 V DC: low-current phase 2.0 W, high-current phase 7.0 W

Trigger signal voltage range DC3, 30

Note on input current0.09-0.44 mA with a trigger signal of 3-15 V, 0.44-15.44 mA with a trigger signal of 15-30 V

Permissible voltage fluctuations+/-10%

Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]

Note on operating and pilot mediumLubricated operation not possible

Restrictions for environmental and media temperatureAs a function of switching frequency (see graph)

Corrosion resistance class CRC2 - Moderate corrosion stress

LABS (PWIS) conformityVDMA24364-B2-L

Storage temperature-20, 50

Permissible solenoid surface temperature120

Media temperature-5, 60

Ambient temperature-5, 60

Max. tightening torque for valve mounting0.7

Product weight75

Electrical connection3-core, Cable

Cable length2.5

Type of mountingOn sub-base

Pneumatic connection, port 1Sub-base

Pneumatic connection, port 2Sub-base

Note on materialsRoHS compliant

Material sealsHNBR

Material housingReinforced PA, Reinforced PPS

Material cable sheathPUR

Material screwsSteel
