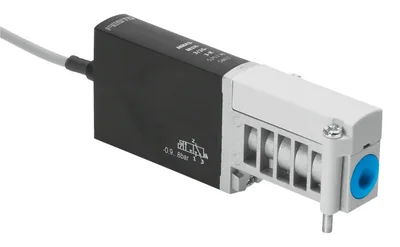

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

Festo MHA3-MS1H-3/2G-3-K

Solenoid valve. Directly actuated poppet valve. Fast-switching valve: switching times down to 2 ms. Direct mounting, individual sub-base, manifold assembly. Manifold block for 2 ... 10 valves

FestoMFR # MHA3-MS1H-3/2G-3-KSKU # CEY-937FC78213F1

Valve function3/2-way, single solenoid, closed

Type of actuationElectrical

Construction width14

pneumatic working portSub-base

Operating voltage24 V DC

Operating pressure-0.09, 0.8

Have questions?Chat on WhatsApp

About This Product

Solenoid valve. Directly actuated poppet valve. Fast-switching valve: switching times down to 2 ms. Direct mounting, individual sub-base, manifold assembly. Manifold block for 2 ... 10 valves

Festo MHA3-MS1H-3/2G-3-K

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Valve function3/2-way, single solenoid, closed

Type of actuationElectrical

Construction width14

Standard nominal flow rate (standardised to DIN 1343)200

pneumatic working portSub-base

Operating voltage24 V DC

Operating pressure-0.09, 0.8

Operating pressure-0.9, 8

Operating pressure-13.05, 116

DesignPressure relief poppet valve

Type of resetMechanical spring

Degree of protectionIP65

ApprovalRCM, c UL us - Recognised (Oil)

CE mark (see declaration of conformity)To EU EMC Directive, In accordance with EU RoHS Directive

UKCA marking (see declaration of conformity)To UK RoHS instructions

Nominal size3

Grid dimension19

Note on grid dimensionMinimum distance between the valves is 5 mm

Exhaust-air functionCan be throttled

Sealing principleSoft

Mounting positionAny

Manual overrideNon-detenting

Type of pilotingDirect

Flow directionReversible with restrictions

Symbol00991308

lapUnderlap

Reverse polarity protectionBipolar

Additional functionsSpark arresting, Holding current reduction, Protective circuit

Operating pressure, reversible-0.09, 0.1

Operating pressure, reversible-0.9, 1

Operating pressure, reversible-13.05, 14.5

Max. switching frequency280

Switching time off2.8

Switching time on2.3

Tolerance switching time off+10 %/-50 %

Tolerance switching time on+10%/-30%

Switching time dispersion from 1 Hz0.2

Duty cycle100%

Characteristic coil data24 V DC: low-current phase 1.6 W, high-current phase 6.5 W

Permissible voltage fluctuations+/-10%

Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]

Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)

Vibration resistanceTransport application test with severity level 2 to FN 942017-4 and EN 60068-2-6

Restrictions for environmental and media temperatureAs a function of switching frequency (see graph)

Shock resistanceShock test with severity level 2 to FN 942017-5 and EN 60068-2-27

Corrosion resistance class CRC2 - Moderate corrosion stress

LABS (PWIS) conformityVDMA24364-B1/B2-L

Cleanroom suitability, measured according to ISO 14644-14Class 6 according to ISO 14644-1

Media temperature-5, 40

Ambient temperature-5, 40

Product weight120

Electrical connectionCable

Cable length2.5

Type of mountingOn PR rail

Pneumatic connection, port 1Sub-base

Pneumatic connection, port 2Sub-base

Pneumatic connection, port 3Sub-base

Note on materialsRoHS compliant

Material sealsHNBR, NBR

Material housingDie-cast zinc, coated

Material cable sheathPUR

Material screwsGalvanised steel

Accessories 7

Genuine accessories that can be used with the Festo MHA3-MS1H-3/2G-3-K motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
MHA3-AS-3-1/8	Sub-base · Connection accessories
MHA3-PR2-3-1/8	Manifold · Connection accessories
MHA3-PR4-3-1/8	Manifold · Connection accessories
MHA3-PR6-3-1/8	Manifold · Connection accessories
MHA3-PR8-3-1/8	Manifold · Connection accessories
MHA3-PR10-3-1/8	Manifold · Connection accessories
NEAU-LH-2	Inscription label holder · General accessories
