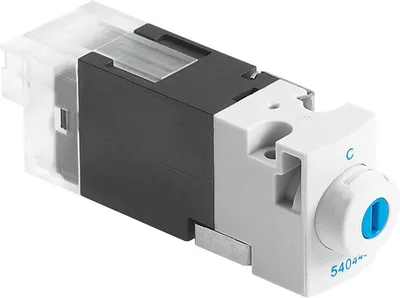

FESTO MHA1-M1LH-3/2G-0,6-HC

Solenoid valve. Directly actuated poppet valve. Miniature valve: grid dimension 10 mm. Switching times down to 4 ms. Sub-base valve. Manifold block for 2 ... 10 valves. Use as a pilot valve. UL certification; same connections and cables as for the VUVG

FESTOMFR # MHA1-M1LH-3/2G-0,6-HCSKU # CEY-937FC781F5A5

Valve function3/2-way, single solenoid, closed

Type of actuationElectrical

Construction width10

pneumatic working portSub-base

Operating voltage24 V DC

Operating pressure0, 0.8

Have questions?Chat on WhatsApp

About This Product

FESTO MHA1-M1LH-3/2G-0,6-HC

Genuine, certified FESTO product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Valve function3/2-way, single solenoid, closed

Type of actuationElectrical

Construction width10

Standard nominal flow rate (standardised to DIN 1343)10

pneumatic working portSub-base

Operating voltage24 V DC

Operating pressure0, 0.8

Operating pressure0, 8

Operating pressure0, 116

DesignPoppet valve with spring return

Type of resetMechanical spring

Degree of protectionIP40

Approvalc UL us - Recognised (Oil)

Certificate issuing authorityUL MH19482

Nominal size0.65

Grid dimension10

Exhaust-air functionCan be throttled

Sealing principleSoft

Mounting positionAny

Manual overrideDetenting, Non-detenting

Type of pilotingDirect

Flow directionNon-reversible

Symbol00991308

Valve position codeLabel

lapUnderlap

Note on forced dynamizationSwitching frequency min. 1/week

Signal status displayLED

Max. switching frequency20

Switching time off4

Switching time on4

Duty cycle100%

Electrical power consumption1.1

Characteristic coil data24 V DC: 1.1 W

Permissible voltage fluctuations+/-10%

Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]

Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)

Vibration resistanceTransport application test with severity level 2 to FN 942017-4 and EN 60068-2-6

Shock resistanceShock test with severity level 2 to FN 942017-5 and EN 60068-2-27

Corrosion resistance class CRC2 - Moderate corrosion stress

LABS (PWIS) conformityVDMA24364-B2-L

Cleanroom suitability, measured according to ISO 14644-14Class 5 according to ISO 14644-1

Storage temperature-20, 60

Media temperature-5, 40

Ambient temperature-5, 40

Product weight11

Electrical connectionPlug

Type of mountingOn sub-base, With through-hole

Pneumatic connection, port 1Sub-base

Pneumatic connection, port 2Sub-base

Pneumatic connection, port 3Sub-base

Note on materialsRoHS compliant

Material sealsFluoro rubber, HNBR, NBR

Material housingReinforced PPS

Accessories 16

Genuine accessories that can be used with the FESTO MHA1-M1LH-3/2G-0,6-HC motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
MHA1-AS-3-M3	Individual sub-base · Connection accessories
MHA1-PR2-3-M3	Manifold · Connection accessories
MHA1-PR4-3-M3	Manifold · Connection accessories
MHA1-PR6-3-M3	Manifold · Connection accessories
MHA1-PR8-3-M3	Manifold · Connection accessories
MHA1-PR10-3-M3	Manifold · Connection accessories
MH-BZ-80X	Inscription label · General accessories
NEBV-H1G2-KN-0.5-N-LE2	Plug socket with cable · Electrical accessories
NEBV-H1G2-KN-1-N-LE2	Plug socket with cable · Electrical accessories
NEBV-H1G2-KN-2.5-N-LE2	Plug socket with cable · Electrical accessories
NEBV-H1G2-KN-5-N-LE2	Plug socket with cable · Electrical accessories
NEBV-H1G2-P-0.5-N-LE2	Plug socket with cable · Electrical accessories
NEBV-H1G2-P-1-N-LE2	Plug socket with cable · Electrical accessories
NEBV-H1G2-P-2.5-N-LE2	Plug socket with cable · Electrical accessories
NEBV-H1G2-P-5-N-LE2	Plug socket with cable · Electrical accessories
VAEM-V-S8EPRS2	Valve control module · Electrical accessories
