How can I get a price quote for FESTO MHA1-2X2/2G-1,5?

You can request a fast quote for FESTO MHA1-2X2/2G-1,5 from Yılsa Engineering. Reference part number CEY-937FC781CDC9. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is FESTO MHA1-2X2/2G-1,5 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is FESTO MHA1-2X2/2G-1,5 genuine and new?

Yes. This FESTO product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for FESTO MHA1-2X2/2G-1,5?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

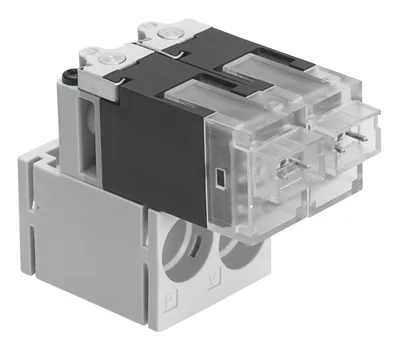

FESTO MHA1-2X2/2G-1,5

Vacuum valve. Directly actuated poppet valve. Miniature valve: grid dimension 10 mm. Switching times down to 4 ms. Sub-base valve. Manifold block for 2 ... 10 valves. Use as a pilot valve. UL certification; same connections and cables as for the VUVG

FESTOMFR # MHA1-2X2/2G-1,5SKU # CEY-937FC781CDC9

Valve function2x2/2 closed monostable

Type of actuationElectrical

Construction width20

pneumatic working portPrepared for QSP10

Operating voltage24 V DC

Operating pressure0, 1.5

Have questions?Chat on WhatsApp

About This Product

FESTO MHA1-2X2/2G-1,5

Genuine, certified FESTO product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Valve function2x2/2 closed monostable

Type of actuationElectrical

Construction width20

Standard nominal flow rate (standardised to DIN 1343)30

pneumatic working portPrepared for QSP10

Operating voltage24 V DC

Operating pressure0, 1.5

Type of resetMechanical spring

Degree of protectionIP40

CE mark (see declaration of conformity)To EU EMC Directive, In accordance with EU RoHS Directive

UKCA marking (see declaration of conformity)To UK RoHS instructions

Nominal size1.5

Grid dimension20

Exhaust-air functionCannot be throttled

Sealing principleSoft

Mounting positionAny

Manual overrideNon-detenting

Type of pilotingDirect

Flow directionNon-reversible

Symbol00992254

lapUnderlap

Signal status displayLED

Operating pressure, reversible-0.95, 0

Suitability for vacuumYes

Standard flow rate (standardised to DIN 1343)30

Max. switching frequency10

Switching time off6

Switching time on6

Duty cycle100%

Characteristic coil data24 V DC: low-current phase 0.7 W, high-current phase 3.0 W

Permissible voltage fluctuations+/-10%

Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]

Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)

Vibration resistanceTransport application test with severity level 2 to FN 942017-4 and EN 60068-2-6

Shock resistanceShock test with severity level 2 to FN 942017-5 and EN 60068-2-27

Corrosion resistance class CRC2 - Moderate corrosion stress

LABS (PWIS) conformityVDMA24364-B2-L

Storage temperature-20, 60

Media temperature-5, 50

Ambient temperature-5, 50

Product weight26.3

Max. cable length30 M

Electrical connectionPlug KMH

Type of mountingWith through-hole

Pneumatic connection, port 1Prepared for QSP10

Pneumatic connection, port 11Prepared for QSP10

Pneumatic connection, port 2Prepared for QSP10

Note on materialsRoHS compliant

Material sealsFluoro rubber, HNBR, NBR

Material housingReinforced PPS

Material screwsSteel

Accessories 11

Genuine accessories that can be used with the FESTO MHA1-2X2/2G-1,5 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
NEBV-H1G2-P-2.5-N-LE2	Plug socket with cable · Electrical accessories
NEBV-H1G2-P-5-N-LE2	Plug socket with cable · Electrical accessories
MHA1-AS-2-M3	Individual sub-base · Connection accessories
MH-BZ-80X	Inscription label · General accessories
NEBV-H1G2-KN-0.5-N-LE2	Plug socket with cable · Electrical accessories
NEBV-H1G2-KN-1-N-LE2	Plug socket with cable · Electrical accessories
NEBV-H1G2-KN-2.5-N-LE2	Plug socket with cable · Electrical accessories
NEBV-H1G2-KN-5-N-LE2	Plug socket with cable · Electrical accessories
NEBV-H1G2-P-0.5-N-LE2	Plug socket with cable · Electrical accessories
NEBV-H1G2-P-1-N-LE2	Plug socket with cable · Electrical accessories
VAEM-V-S8EPRS2	Valve control module · Electrical accessories
