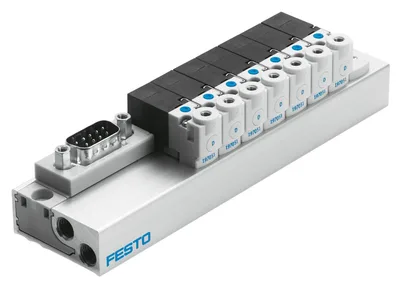

Festo MH1
Valve terminal. Miniaturised poppet valves. Multi-pin or electrical individual connection
Valve size10
Max. standard nominal flow rate10 l/min at 10 mm
pneumatic working portM3
Operating pressure-0.9, 8
Approvalc UL us - Recognised (Oil)
CE mark (see declaration of conformity)In accordance with EU RoHS Directive
About This Product
Valve terminal. Miniaturised poppet valves. Multi-pin or electrical individual connection
Festo MH1
- Genuine, certified Festo product
- Fast sourcing through a worldwide supply network
- Product selection and compatibility support from our technical team
- Equivalent and alternative product suggestions
- Quotation and lead time tailored to your request
Specifications
Valve function2/2-way, single solenoid, closed, 3/2-way, single solenoid, closed, 3/2-way, single solenoid, open
Valve size10
Max. standard nominal flow rate10 l/min at 10 mm
pneumatic working portM3
Operating pressure-0.9, 8
Approvalc UL us - Recognised (Oil)
CE mark (see declaration of conformity)In accordance with EU RoHS Directive
Certificate issuing authorityUL MH19482
Nominal size0.9
Exhaust-air functionCan be throttled
Sealing principleSoft
DesignPoppet valve with spring return
Type of resetMechanical spring
Type of pilotingDirect
Signal status displayLED
Suitability for vacuumYes
Nominal operating voltage AC24
Nominal operating voltage DC5
Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]
Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)
Corrosion resistance class CRC1 - Low corrosion stress
LABS (PWIS) conformityVDMA24364-B2-L
Media temperature-5, 40
Degree of protectionIP40, IP65
Ambient temperature-5, 40
Electrical controlIndividual connection, Multi-pin
Note on materialsRoHS compliant
Type of actuationElectrical
Max. number of valve positions24
Valve terminal structureFixed grid
