How can I get a price quote for FESTO MGXIAH-3/2-0.8-24DC-EX?

You can request a fast quote for FESTO MGXIAH-3/2-0.8-24DC-EX from Yılsa Engineering. Reference part number CEY-937FC7820235. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is FESTO MGXIAH-3/2-0.8-24DC-EX in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is FESTO MGXIAH-3/2-0.8-24DC-EX genuine and new?

Yes. This FESTO product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for FESTO MGXIAH-3/2-0.8-24DC-EX?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

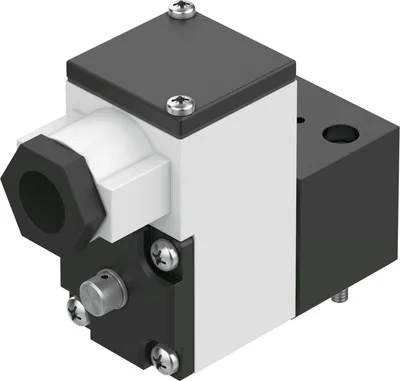

FESTO MGXIAH-3/2-0.8-24DC-EX

Pilot valve. CNOMO connection pattern, to ISO 15218. Detenting or non-detenting manual override. Variants to EU Explosion Protection Directive (ATEX)

FESTOMFR # MGXIAH-3/2-0.8-24DC-EXSKU # CEY-937FC7820235

Valve function3/2-way, single solenoid, closed

Type of actuationElectrical

Operating pressure-0.09, 0.8

Operating pressure-0.9, 8

Operating pressure-13.05, 116

DesignOn/off valve

Have questions?Chat on WhatsApp

About This Product

Pilot valve. CNOMO connection pattern, to ISO 15218. Detenting or non-detenting manual override. Variants to EU Explosion Protection Directive (ATEX)

FESTO MGXIAH-3/2-0.8-24DC-EX

Genuine, certified FESTO product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Valve function3/2-way, single solenoid, closed

Type of actuationElectrical

Operating pressure-0.09, 0.8

Operating pressure-0.9, 8

Operating pressure-13.05, 116

DesignOn/off valve

Type of resetMechanical spring

CE mark (see declaration of conformity)To EU Explosion Protection Directive (ATEX)

Explosion protection certification outside the EUEPL Ga (IEC-EX), EPL Gb (CN)

Certificate issuing authorityATEX: CML 17 ATEX 2046X, CCC-Ex: 2020322307001726, IEC: IECEx CML 17.0030X

ATEX category gasII 1G

ATEX category dustII 1D

Explosion ignition protection type for gasEx ia IIC T6 ...T5 Gb

Explosion ignition protection type for dustEx ia IIIC T135°C Db

Explosion ambient temperature-40 °C<=Ta<=50 °C/65 °C

Degree of protectionIP65

Manual overrideDetenting

Flow directionNon-reversible

Symbol00991308

Duty cycle100%

Insulation material classH

Max. input power Pi-40°C ~+50°C T6 = 2.98W, -40°C ~+65°C T135°C = 2.98W, -40°C ~+65°C T5 = 2.98W, -40°C ~+65°C T6 = 1W

Max. input voltage Ui31 V

Max. input current Ii0.67 A

Characteristic coil data24 V DC: 1.5 W

Effective internal inductivity LiNegligibly low

Effective internal capacitance CiNegligibly low

Permissible frequency fluctuations+/-10%

Explosion protectionZone 0 (IEC-EX), Zone 1 (ATEX), Zone 1 (CN), Zone 21 (CN), Zone 22 (ATEX)

Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]

Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)

Corrosion resistance class CRC2 - Moderate corrosion stress

LABS (PWIS) conformityVDMA24364 zone III

Ambient temperature-20, 80

Type of mountingCNOMO

Note on materialsRoHS compliant
