How can I get a price quote for FESTO MGXDH-3/2-1.2-24DC-EX?

You can request a fast quote for FESTO MGXDH-3/2-1.2-24DC-EX from Yılsa Engineering. Reference part number CEY-937FC7820367. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is FESTO MGXDH-3/2-1.2-24DC-EX in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is FESTO MGXDH-3/2-1.2-24DC-EX genuine and new?

Yes. This FESTO product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for FESTO MGXDH-3/2-1.2-24DC-EX?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

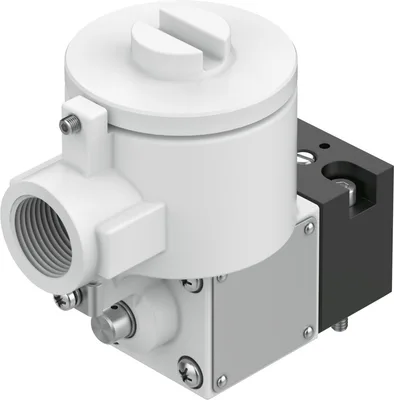

FESTO MGXDH-3/2-1.2-24DC-EX

Pilot valve. CNOMO connection pattern, to ISO 15218. Detenting or non-detenting manual override. Variants to EU Explosion Protection Directive (ATEX)

FESTOMFR # MGXDH-3/2-1.2-24DC-EXSKU # CEY-937FC7820367

Valve function3/2-way, single solenoid, closed

Type of actuationElectrical

Operating pressure-0.09, 0.8

Operating pressure-0.9, 8

Operating pressure-13.05, 116

DesignOn/off valve

Have questions?Chat on WhatsApp

About This Product

Pilot valve. CNOMO connection pattern, to ISO 15218. Detenting or non-detenting manual override. Variants to EU Explosion Protection Directive (ATEX)

FESTO MGXDH-3/2-1.2-24DC-EX

Genuine, certified FESTO product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Valve function3/2-way, single solenoid, closed

Type of actuationElectrical

Operating pressure-0.09, 0.8

Operating pressure-0.9, 8

Operating pressure-13.05, 116

DesignOn/off valve

Type of resetMechanical spring

CE mark (see declaration of conformity)To EU Explosion Protection Directive (ATEX)

Explosion protection certification outside the EUEPL Gb (CN), EPL Gb (IECEx)

Certificate issuing authorityATEX: CML 15 ATEX 1119X, CCC-Ex: 2020322307001701, IEC: IECEx CML 17.0147X

ATEX category gasII 2G

ATEX category dustII 2D

Explosion ignition protection type for gasCCC-Ex: Ex d IIC T3/T6 Gb

Explosion ignition protection type for dustEx tb IIIC T100°C Db

Explosion ambient temperatureATEX: -65°C <= Ta <= +55°C, CCC-Ex: -20 °C <= Ta <= +40 °C

Degree of protectionIP66

Manual overrideDetenting

Flow directionNon-reversible

Symbol00991308

Duty cycle100%

Insulation material classH

Characteristic coil data24 V DC: 3.0 W

Permissible frequency fluctuations+/-10%

Explosion protectionZone 1 (ATEX), Zone 1 (CN), Zone 1 (IEC-EX), Zone 2 (ATEX), Zone 21 (ATEX), Zone 21 (CN), Zone 21 (IEC-EX), Zone 22 (ATEX)

Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]

Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)

Corrosion resistance class CRC2 - Moderate corrosion stress

LABS (PWIS) conformityVDMA24364 zone III

Ambient temperature-20, 80

Type of mountingCNOMO

Note on materialsRoHS compliant
