How can I get a price quote for Festo MFH-5-PK-3?

You can request a fast quote for Festo MFH-5-PK-3 from Yılsa Engineering. Reference part number CEY-937FC7827B58. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Festo MFH-5-PK-3 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Festo MFH-5-PK-3 genuine and new?

Yes. This Festo product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Festo MFH-5-PK-3?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

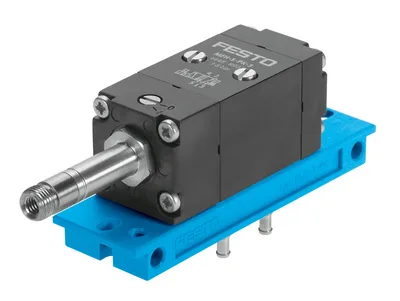

Festo MFH-5-PK-3

Solenoid valve. Control elements with all functions for pneumatic sequence controls. For control cabinet installation. Fast replacement of components

FestoMFR # MFH-5-PK-3SKU # CEY-937FC7827B58

Valve function5/2-way, single solenoid

pneumatic working portPK-3

Operating pressure3, 8

DesignPoppet seat

Nominal size2.5

Sealing principleSoft

Have questions?Chat on WhatsApp

About This Product

Solenoid valve. Control elements with all functions for pneumatic sequence controls. For control cabinet installation. Fast replacement of components

Festo MFH-5-PK-3

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Valve function5/2-way, single solenoid

Standard nominal flow rate (standardised to DIN 1343)105

pneumatic working portPK-3

Operating pressure3, 8

DesignPoppet seat

Nominal size2.5

Sealing principleSoft

Symbol00991435

Switching time off22

Switching time on10

Operating mediumCompressed air to ISO 8573-1:2010 [7:-:-]

LABS (PWIS) conformityVDMA24364-B1/B2-L

Media temperature-10, 60

Ambient temperature-5, 40

Product weight270

Type of mountingOn sub-base, On mounting frame, With through-hole

Pneumatic connection, port 1PK-3

Pneumatic connection, port 2PK-3

Pneumatic connection, port 3PK-3

Pneumatic connection, port 4PK-3

Pneumatic connection, port 5PK-3

Note on materialsRoHS compliant

Material sub-baseAluminium, anodised

Material sealsNBR

Material housinganodised

Accessories 22

Genuine accessories that can be used with the Festo MFH-5-PK-3 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
DIN 84-M6X18-4.8	Socket head screw · Mounting accessories
DIN 84-M6X12-4.8	Socket head screw · Mounting accessories
MSFG-12	Solenoid coil · Electrical accessories
MSFG-24/42-50/60	Solenoid coil · Electrical accessories
MSFW-24-50/60	Solenoid coil · Electrical accessories
MSFW-230-50/60	Solenoid coil · Electrical accessories
MSFW-110-50/60	Solenoid coil · Electrical accessories
NRRQ-2N	Mounting frame · Mounting accessories
NRW-9/1,5-B	Mounting bracket · Mounting accessories
MSFG-24/42-50/60-DS	Solenoid coil · Electrical accessories
MSFW-110-50/60-DS	Solenoid coil · Electrical accessories
MSFW-230-50/60-DS	Solenoid coil · Electrical accessories
MSFG-12-OD	Solenoid coil · Electrical accessories
MSFG-24/42-50/60-OD	Solenoid coil · Electrical accessories
MSFG-24/42-50/60-DS-OD	Solenoid coil · Electrical accessories
MSFG-42-OD	Solenoid coil · Electrical accessories
MSFW-24-50/60-OD	Solenoid coil · Electrical accessories
MSFW-48-50/60-OD	Solenoid coil · Electrical accessories
MSFW-110-50/60-OD	Solenoid coil · Electrical accessories
MSFW-230-50/60-OD	Solenoid coil · Electrical accessories
MSFW-240-50/60-OD	Solenoid coil · Electrical accessories
MSFW-230-50/60-DS-OD	Solenoid coil · Electrical accessories
