How can I get a price quote for FESTO MFH-5/3E-3/8-B-EX?

You can request a fast quote for FESTO MFH-5/3E-3/8-B-EX from Yılsa Engineering. Reference part number CEY-937FC782031B. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is FESTO MFH-5/3E-3/8-B-EX in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is FESTO MFH-5/3E-3/8-B-EX genuine and new?

Yes. This FESTO product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for FESTO MFH-5/3E-3/8-B-EX?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

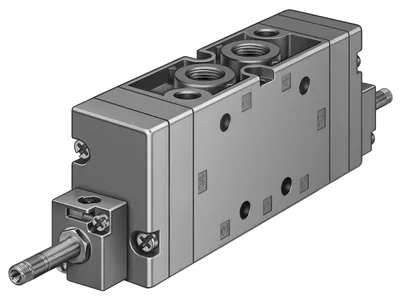

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

FESTO MFH-5/3E-3/8-B-EX

Solenoid valve. Sturdy and reliable. Wide range of voltages thanks to individual coils. Principle with armature tube. To EU Explosion Protection Directive (ATEX)

FESTOMFR # MFH-5/3E-3/8-B-EXSKU # CEY-937FC782031B

Valve function5/3 exhausted

Type of actuationElectrical

Construction width40

pneumatic working portG3/8

Operating pressure0.3, 1

Operating pressure3, 10

Have questions?Chat on WhatsApp

About This Product

Solenoid valve. Sturdy and reliable. Wide range of voltages thanks to individual coils. Principle with armature tube. To EU Explosion Protection Directive (ATEX)

FESTO MFH-5/3E-3/8-B-EX

Genuine, certified FESTO product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Valve function5/3 exhausted

Type of actuationElectrical

Construction width40

Standard nominal flow rate (standardised to DIN 1343)2200

pneumatic working portG3/8

Operating pressure0.3, 1

Operating pressure3, 10

DesignPiston gate valve

Type of resetMechanical spring

CE mark (see declaration of conformity)To EU Explosion Protection Directive (ATEX)

Explosion protection certification outside the EUEPL Db (GB), EPL Gb (GB)

UKCA marking (see declaration of conformity)To UK EX instructions

ATEX category gasII 2G

ATEX category dustII 2D

Explosion ignition protection type for gasEx h IIC T4 Gb

Explosion ignition protection type for dustEx h IIIC T130°C Db

Explosion ambient temperature-5°C <= Ta <= +40°C

Degree of protectionIP65

Nominal size12

Grid dimension41

Exhaust-air functionCan be throttled

Sealing principleSoft

Mounting positionAny

Manual overrideNon-detenting

Type of pilotingPiloted

Pilot air supplyInternal

Flow directionNon-reversible

Symbol00991036

lapOverlap

Max. switching frequency3

Switching time off114

Switching time on26

Switching time reversal83

Max. positive test pulse with 0 signal2200

Max. negative test pulse with 1 signal3700

Explosion protectionZone 1 (ATEX), Zone 1 (UKEX), Zone 2 (ATEX), Zone 21 (ATEX), Zone 21 (UKEX), Zone 22 (ATEX)

Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]

Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)

Corrosion resistance class CRC1 - Low corrosion stress

LABS (PWIS) conformityVDMA24364-B1/B2-L

Storage temperature-40, 60

Media temperature-5, 40

Ambient temperature-5, 40

Product weight780

Electrical connectionVia F coil, to be ordered separately

Type of mountingWith through-hole

Pilot exhaust port 82M5

Pilot exhaust port 84M5

Pneumatic connection, port 1G3/8

Pneumatic connection, port 2G3/8

Pneumatic connection, port 3G3/8

Pneumatic connection, port 4G3/8

Pneumatic connection, port 5G3/8

Note on materialsRoHS compliant

Material sealsNBR

Material housingDie-cast aluminium

Accessories 23

Genuine accessories that can be used with the FESTO MFH-5/3E-3/8-B-EX motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
VACF-B-K1-1-1-EX4-M	Solenoid coil · Electrical accessories
VACF-B-K1-3A-1-EX4-M	Solenoid coil · Electrical accessories
VACF-B-K1-16B-1-EX4-M	Solenoid coil · Electrical accessories
UC-M5	Silencer · Silencer
PUN-H-12X2-NT	Plastic tubing · Tubes
PUN-H-12X2-BL	Plastic tubing · Tubes
PUN-H-12X2-SW	Plastic tubing · Tubes
PUN-H-12X2-TBL	Plastic tubing · Tubes
QS-G3/8-12	Push-in fitting · Fittings
QS-G3/8-12-I	Push-in fitting · Fittings
QSL-G3/8-12	Push-in L-fitting · Fittings
QSLL-G3/8-12	Push-in L-fitting, long · Fittings
AHB-MD/MF/MV	Manual override · General accessories
MSFG-24-EX	Solenoid coil · Electrical accessories
MSFW-24-50/60-EX	Solenoid coil · Electrical accessories
MSFW-110-50/60-EX	Solenoid coil · Electrical accessories
MSFW-230-50/60-EX	Solenoid coil · Electrical accessories
VACF-B-K1-1-5-EX4-M	Solenoid coil · Electrical accessories
VACF-B-K1-1-10-EX4-M	Solenoid coil · Electrical accessories
VACF-B-K1-1-20-EX4-M	Solenoid coil · Electrical accessories
VACF-B-K1-1A-1-EX4-M	Solenoid coil · Electrical accessories
VACF-B-K1-3A-5-EX4-M	Solenoid coil · Electrical accessories
VACF-B-K1-16B-5-EX4-M	Solenoid coil · Electrical accessories
