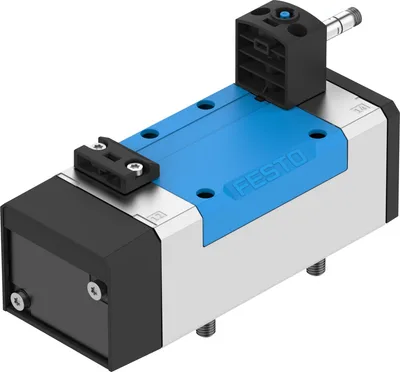

Festo MFH-5/2-D-3-FR-S-C

Solenoid valve. Conforms to ISO 5599-1. Robust metal housing. Manifold assembly with mixture of ISO sizes 1, 2 and 3 possible. Extensive range of electrical connection options. Wide range of vertical stacking modules: pressure regulator, flow control valve, vertical pressure shut-off plate, etc.. Also available as a valve terminal

FestoMFR # MFH-5/2-D-3-FR-S-CSKU # YLSS91SZDHWIJHX

Valve function5/2-way, single solenoid

Type of actuationElectrical

Construction width65

pneumatic working portSub-base size 3 to ISO 5599-1, G1/2

Operating pressure-0.09, 1.6

Operating pressure-0.9, 16

Have questions?Chat on WhatsApp

About This Product

Festo MFH-5/2-D-3-FR-S-C

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Valve function5/2-way, single solenoid

Type of actuationElectrical

Construction width65

Standard nominal flow rate (standardised to DIN 1343)4500

pneumatic working portSub-base size 3 to ISO 5599-1, G1/2

Operating voltageVia solenoid coil, must be ordered separately

Operating pressure-0.09, 1.6

Operating pressure-0.9, 16

DesignPiston gate valve

Type of resetMechanical spring

Maritime classificationSee certificate

Certificate issuing authorityDNV-TAA000032X

Degree of protectionIP65

Nominal size14.5

Grid dimension71

Exhaust-air functionCan be throttled

Sealing principleSoft

Mounting positionAny

Conforms to standardISO 5599-1

Manual overrideDetenting via accessory, Non-detenting

ISO code369

Type of pilotingPiloted

Pilot air supplyExternal

Flow directionReversible

Symbol00991190

lapOverlap

Pilot pressure0.3, 1

Pilot pressure3, 10

Suitability for vacuumYes

Switching time off74

Switching time on33

Max. positive test pulse with 0 signal3700

Max. negative test pulse with 1 signal4600

Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]

Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)

Vibration resistanceTransport application test with severity level 1 to FN 942017-4 and EN 60068-2-6

Shock resistanceShock test with severity level 2 to FN 942017-5 and EN 60068-2-27

LABS (PWIS) conformityVDMA24364-B1/B2-L

Media temperature-5, 50

Sound pressure level85

Pilot mediumCompressed air to ISO 8573-1:2010 [7:4:4]

Ambient temperature-5, 50

Product weight1000

Electrical connectionVia N1 coil, to be ordered separately

Type of mountingOn sub-base, Via through-hole and screw

Pilot exhaust port 84M5

Pilot air port 14Sub-base size 3 to ISO 5599-1

Pneumatic connection, port 1Sub-base size 3 to ISO 5599-1

Pneumatic connection, port 2Sub-base size 3 to ISO 5599-1

Pneumatic connection, port 3Sub-base size 3 to ISO 5599-1

Pneumatic connection, port 4Sub-base size 3 to ISO 5599-1

Pneumatic connection, port 5Sub-base size 3 to ISO 5599-1

Note on materialsRoHS compliant

Material sealsHNBR, NBR

Material housingDie-cast aluminium

Accessories 17

Genuine accessories that can be used with the Festo MFH-5/2-D-3-FR-S-C motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
NAVW-1/2-3-ISO	Manifold sub-base with angled connections · Connection accessories
NAVW-1/2-NPT-3	Manifold sub-base with angled connections · Connection accessories
NAV-1/2-3C-ISO	Manifold sub-base · Connection accessories
NEV-3DA/DB-ISO	End plate kit · Connection accessories
NAS-1/2-3A-ISO	Individual sub-base · Connection accessories
NAU-1/2-3B-ISO	Individual sub-base · Connection accessories
NDV-3-ISO	Cover plate · Connection accessories
NAW-1/2-3E-ISO	Angled connection plate · Connection accessories
NSC-1/2-3-ISO	Isolating disc · Connection accessories
NZV-3-2/1	Intermediate plate · Connection accessories
NAS-1/2-NPT-3A	Individual sub-base · Connection accessories
NEV-3DA/DB-NPT	End plate kit · Connection accessories
NAV-1/2-NPT-3C	Manifold sub-base · Connection accessories
LR-ZP-B-D-3	Intermediate pressure regulator plate · Connection accessories
LR-ZP-A/B-D-3	Intermediate pressure regulator plate · Connection accessories
LR-ZP-A-D-3	Intermediate pressure regulator plate · Connection accessories
LR-ZP-P-D-3	Intermediate pressure regulator plate · Connection accessories
