How can I get a price quote for Festo MFH-3-1/4-24-EX?

You can request a fast quote for Festo MFH-3-1/4-24-EX from Yılsa Engineering. Reference part number YLSJ7EN7D53JLEB. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Festo MFH-3-1/4-24-EX in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Festo MFH-3-1/4-24-EX genuine and new?

Yes. This Festo product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Festo MFH-3-1/4-24-EX?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

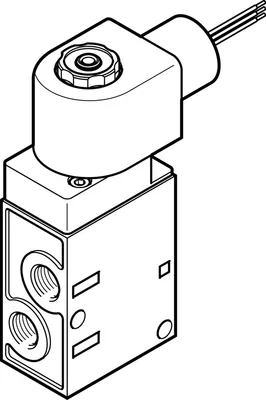

Photo may not represent actual item. Refer to name and product specs for all details.

Festo MFH-3-1/4-24-EX

Solenoid valve. Sturdy and reliable. Poppet valve. All-metal version. Principle with armature tube. Variants to EU Explosion Protection Directive (ATEX)

FestoMFR # MFH-3-1/4-24-EXSKU # YLSJ7EN7D53JLEB

Valve function3/2-way, single solenoid, closed

Type of actuationElectrical

Construction width73

pneumatic working portG1/4

Operating voltage24 V DC

Operating pressure0.15, 0.8

Have questions?Chat on WhatsApp

About This Product

Solenoid valve. Sturdy and reliable. Poppet valve. All-metal version. Principle with armature tube. Variants to EU Explosion Protection Directive (ATEX)

Festo MFH-3-1/4-24-EX

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Valve function3/2-way, single solenoid, closed

Type of actuationElectrical

Construction width73

Standard nominal flow rate (standardised to DIN 1343)800

pneumatic working portG1/4

Operating voltage24 V DC

Operating pressure0.15, 0.8

Operating pressure1.5, 8

Type of resetMechanical spring

Explosion protection certification outside the EUClass I, Div. 1 (US), Class I, Div. 2 (US), Class II, Div. 1 (US), Class II, Div. 2 (US), Class III, Div. 1 (US), Class III, Div. 2 (US), EPL Gb (US), EPL Gc (US)

Certificate issuing authorityFM 3026030

Degree of protectionIP65

Nominal size5

Exhaust-air functionCan be throttled

Sealing principleSoft

Mounting positionAny

Manual overrideDetenting

Type of pilotingPiloted

Flow directionNon-reversible

Symbol00991008

lapUnderlap

Switching time off29

Switching time on12

Characteristic coil data24 V DC: 4.6 W

Explosion protectionClass I, Div. 1 (US), Class I, Div. 2 (US), Class II, Div. 1 (US), Class II, Div. 2 (US), Class III, Div. 1 (US), Class III, Div. 2 (US), Zone 1 (US), Zone 2 (US)

Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]

Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)

Corrosion resistance class CRC1 - Low corrosion stress

Media temperature-5, 40

Ambient temperature-5, 40

Product weight425

Type of mountingWith through-hole

Breather connectionInternal

Pilot exhaust port 82M5

Pneumatic connection, port 1G1/4

Pneumatic connection, port 2G1/4

Pneumatic connection, port 3G1/4
