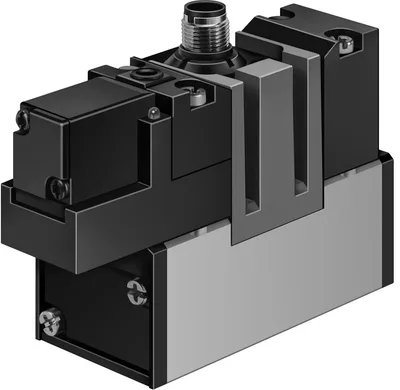

Festo MEBH-5/2-D-3-ZSR-C

Solenoid valve. Conforms to ISO 5599-1. Robust metal housing. Manifold assembly with mixture of ISO sizes 1, 2 and 3 possible. Extensive range of electrical connection options. Wide range of vertical stacking modules: pressure regulator, flow control valve, vertical pressure shut-off plate, etc.. Also available as a valve terminal

FestoMFR # MEBH-5/2-D-3-ZSR-CSKU # CEY-937FC7823403

Valve function5/2-way, single solenoid

Type of actuationElectrical

Construction width65

pneumatic working portSub-base size 3 to ISO 5599-1, G1/2

Operating voltage24 V DC

Operating pressure0.2, 1

Have questions?Chat on WhatsApp

About This Product

Festo MEBH-5/2-D-3-ZSR-C

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Valve function5/2-way, single solenoid

Type of actuationElectrical

Construction width65

Standard nominal flow rate (standardised to DIN 1343)4500

pneumatic working portSub-base size 3 to ISO 5599-1, G1/2

Operating voltage24 V DC

Operating pressure0.2, 1

Operating pressure2, 10

DesignPiston gate valve

Type of resetPneumatic spring

Degree of protectionIP65

Nominal size14.5

Grid dimension71

Exhaust-air functionCan be throttled

Sealing principleSoft

Mounting positionAny

Conforms to standardISO 5599-1

Manual overrideNon-detenting

ISO code351

Type of pilotingPiloted

Pilot air supplyInternal

Flow directionNon-reversible

Symbol00991049

Switching time off87

Switching time on59

Characteristic coil data24 V DC: 2.5 W

Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]

Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)

Corrosion resistance class CRC2 - Moderate corrosion stress

LABS (PWIS) conformityVDMA24364-B1/B2-L

Media temperature-10, 50

Ambient temperature-10, 50

Product weight1000

Electrical connectionM12x1, Central plug, Round design

Type of mountingWith through-hole

Pilot exhaust port 84Not ducted

Pneumatic connection, port 1Sub-base size 3 to ISO 5599-1

Pneumatic connection, port 2Sub-base size 3 to ISO 5599-1

Pneumatic connection, port 3Sub-base size 3 to ISO 5599-1

Pneumatic connection, port 4Sub-base size 3 to ISO 5599-1

Pneumatic connection, port 5Sub-base size 3 to ISO 5599-1

Material sealsNBR

Material housingDie-cast aluminium

Accessories 21

Genuine accessories that can be used with the Festo MEBH-5/2-D-3-ZSR-C motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
AHB-MEB	Manual override · General accessories
NEV-3DA/DB-ISO	End plate kit · Connection accessories
NAS-1/2-3A-ISO	Individual sub-base · Connection accessories
NDV-3-ISO	Cover plate · Connection accessories
NSC-1/2-3-ISO	Isolating disc · Connection accessories
LR-ZP-B-D-3	Intermediate pressure regulator plate · Connection accessories
LR-ZP-P-D-3	Intermediate pressure regulator plate · Connection accessories
LR-ZP-A-D-3	Intermediate pressure regulator plate · Connection accessories
NAVW-1/2-3-ISO	Manifold sub-base with angled connections · Connection accessories
NEBA-M12G5-U-5-N-LE4	Connecting cable · Connecting cables
NEBA-M12W5-U-5-N-LE4	Connecting cable · Connecting cables
NAV-1/2-3C-ISO	Manifold sub-base · Connection accessories
NAU-1/2-3B-ISO	Individual sub-base · Connection accessories
NAW-1/2-3E-ISO	Angled connection plate · Connection accessories
NZV-3-2/1	Intermediate plate · Connection accessories
NAS-1/2-NPT-3A	Individual sub-base · Connection accessories
NEV-3DA/DB-NPT	End plate kit · Connection accessories
NAV-1/2-NPT-3C	Manifold sub-base · Connection accessories
LR-ZP-A/B-D-3	Intermediate pressure regulator plate · Connection accessories
NAVW-1/2-NPT-3	Manifold sub-base with angled connections · Connection accessories
NEDY-	Distributor · Electrical accessories
