How can I get a price quote for FESTO MDH-3/2-110VAC?

You can request a fast quote for FESTO MDH-3/2-110VAC from Yılsa Engineering. Reference part number CEY-937FC78266F0. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is FESTO MDH-3/2-110VAC in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is FESTO MDH-3/2-110VAC genuine and new?

Yes. This FESTO product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for FESTO MDH-3/2-110VAC?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

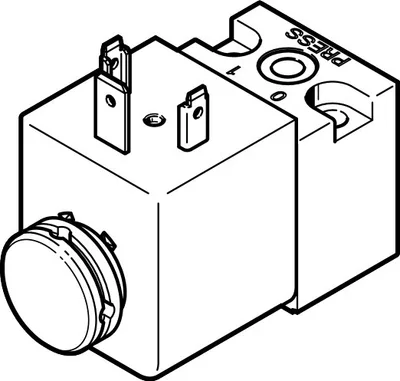

FESTO MDH-3/2-110VAC

Pilot valve. CNOMO connection pattern, to ISO 15218. Detenting or non-detenting manual override. Variants to EU Explosion Protection Directive (ATEX)

FESTOMFR # MDH-3/2-110VACSKU # CEY-937FC78266F0

Valve function3/2-way, single solenoid, closed

Type of actuationElectrical

Construction width30

pneumatic working portSub-base size 30 mm to ISO 15218

Operating voltage110V AC

Operating pressure0.1, 1.6

Have questions?Chat on WhatsApp

About This Product

Pilot valve. CNOMO connection pattern, to ISO 15218. Detenting or non-detenting manual override. Variants to EU Explosion Protection Directive (ATEX)

FESTO MDH-3/2-110VAC

Genuine, certified FESTO product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Valve function3/2-way, single solenoid, closed

Type of actuationElectrical

Construction width30

Standard nominal flow rate (standardised to DIN 1343)50

pneumatic working portSub-base size 30 mm to ISO 15218

Operating voltage110V AC

Operating pressure0.1, 1.6

Operating pressure1, 16

Operating pressure14.5, 232

DesignPoppet seat

Type of resetMechanical spring

CE mark (see declaration of conformity)To EU Low Voltage Directive

UKCA marking (see declaration of conformity)To UK regulations for electrical equipment

Degree of protectionIP65

Nominal size1.3

Grid dimension42

Exhaust-air functionCannot be throttled

Based on standardISO 15218

Sealing principleSoft

Mounting positionAny

Conforms to standardISO 15218

Manual overrideNon-detenting

Type of pilotingDirect

Flow directionNon-reversible

Symbol00991308

lapUnderlap

Switching time off9

Switching time on11

Duty cycle100%

Characteristic coil data110 V AC: 60 Hz, pick-up power 12.0 VA, holding power 7.6 VA

Permissible frequency fluctuations+/-10%

Permissible voltage fluctuations+/-10%

Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]

Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)

Corrosion resistance class CRC2 - Moderate corrosion stress

LABS (PWIS) conformityVDMA24364-B2-L

Media temperature-15, 80

Ambient temperature-15, 50

Product weight140

Electrical connectionTo DIN EN 175301-803

Type of mountingOn sub-base, With through-hole

Pneumatic connection, port 1Sub-base

Pneumatic connection, port 2Sub-base

Pneumatic connection, port 3Not ducted

Note on materialsRoHS compliant

Material sealsFluoro rubber

Accessories 4

Genuine accessories that can be used with the FESTO MDH-3/2-110VAC motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
IBS-9X20	Inscription label · General accessories
KMC-1-230AC-2,5	Connecting cable · Connecting cables
KMC-1-230AC-5	Connecting cable · Connecting cables
AHB-MD/MF/MV	Manual override · General accessories
