How can I get a price quote for Festo LFR-3/4-D-DI-MAXI-KG-A?

You can request a fast quote for Festo LFR-3/4-D-DI-MAXI-KG-A from Yılsa Engineering. Reference part number CEY-937FC782201F. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Festo LFR-3/4-D-DI-MAXI-KG-A in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Festo LFR-3/4-D-DI-MAXI-KG-A genuine and new?

Yes. This Festo product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Festo LFR-3/4-D-DI-MAXI-KG-A?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

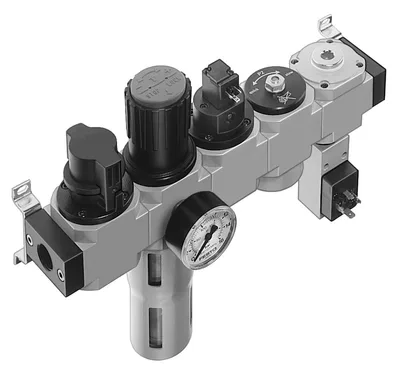

Festo LFR-3/4-D-DI-MAXI-KG-A

Service unit combination. Combination of filter regulator, branching module, on/off valve, soft-start valve, mounting accessories. Size mini, midi, maxi

FestoMFR # LFR-3/4-D-DI-MAXI-KG-ASKU # CEY-937FC782201F

SizeMaxi

SeriesD

Actuator lockRotary knob with detent

Mounting positionVertical +/-5°

Grade of filtration40

Condensate drainFully automatic

Have questions?Chat on WhatsApp

About This Product

Service unit combination. Combination of filter regulator, branching module, on/off valve, soft-start valve, mounting accessories. Size mini, midi, maxi

Festo LFR-3/4-D-DI-MAXI-KG-A

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

SizeMaxi

SeriesD

Actuator lockRotary knob with detent

Mounting positionVertical +/-5°

Grade of filtration40

Condensate drainFully automatic

DesignSafety start-up valve

Max. condensate volume43

Bowl guardMetal bowl guard

Symbol00991760

Pressure gauge (ANALOG) or Pressure display (DIGITAL)With pressure gauge

Operating pressure0.3, 1.2

Operating pressure3, 12

Operating pressure43.5, 174

Pressure regulation range0.25, 1.2

Pressure regulation range2.5, 12

Pressure regulation range36.25, 174

Standard nominal flow rate (standardised to DIN 1343)3000

Operating mediumInert gas

Corrosion resistance class CRC2 - Moderate corrosion stress

LABS (PWIS) conformityVDMA24364-B1/B2-L

Air purity class at outputCompressed air to ISO 8573-1:2010 [6:8:4], Inert gas

Media temperature-10, 60

Ambient temperature-10, 60

Product weight5400

Type of mountingWith accessories

Pneumatic connection, port 1G3/4

Pneumatic connection, port 2G3/4

Material housingDie-cast zinc

Material bowlMakrolon®

Accessories 23

Genuine accessories that can be used with the Festo LFR-3/4-D-DI-MAXI-KG-A motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
QS-G3/4-22	Push-in fitting · Fittings
LFP-D-MAXI-40M	Filter cartridge · General accessories
KMEB-1-24-2.5-LED	Plug socket with cable · Electrical accessories
MSSD-EB-M12-MONO	Plug socket · Electrical accessories
HMR-D-MIDI	Hex nut · Mounting accessories
HFOE-D-MIDI/MAXI	Mounting bracket · Mounting accessories
FRB-D-MAXI	Threaded bolt · Mounting accessories
LRVS-D-DI-MAXI	Regulator lock · Mounting accessories
PAN-R-22X2-SW	Plastic tubing · Tubes
N-3/4-P-13	Barbed hose fitting · Other connectors
N-3/4-P-19	Barbed hose fitting · Other connectors
N-3/4-P-13-MS	Barbed hose fitting · Other connectors
N-3/4-P-19-MS	Barbed hose fitting · Other connectors
KMEB-1-24-5-LED	Plug socket with cable · Electrical accessories
MEB-LD-12-24DC	Illuminating seal · Electrical accessories
PEV-1/4-WD-LED-24	Angled plug socket · Electrical accessories
PEV-1/4-WD-LED-230	Angled plug socket · Electrical accessories
KMEB-2-24-2,5-LED	Plug socket with cable · Electrical accessories
KMEB-2-24-5-LED	Plug socket with cable · Electrical accessories
KMEB-2-24-M12-0,5-LED	Plug socket with cable · Electrical accessories
CQ-3/4-22	Push-in fitting · Connection accessories
KMEB-1-24-10-LED	Plug socket with cable · Electrical accessories
LR/LFR-D-MINI/MAXI-SW	Actuator head · Mounting accessories
