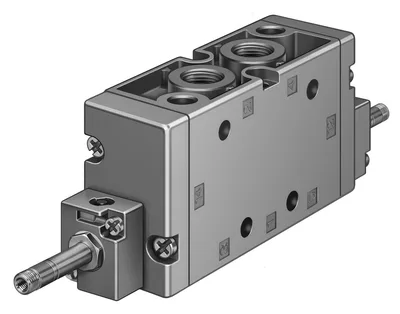

FESTO JMFH-5-3/8-B-EX

Solenoid valve. Sturdy and reliable. Wide range of voltages thanks to individual coils. Principle with armature tube. To EU Explosion Protection Directive (ATEX)

FESTOMFR # JMFH-5-3/8-B-EXSKU # CEY-937FC7820327

Valve function5/2-way, double solenoid

Type of actuationElectrical

Construction width40

pneumatic working portG3/8

Operating pressure0.2, 0.8

Operating pressure2, 8

Have questions?Chat on WhatsApp

About This Product

Solenoid valve. Sturdy and reliable. Wide range of voltages thanks to individual coils. Principle with armature tube. To EU Explosion Protection Directive (ATEX)

FESTO JMFH-5-3/8-B-EX

Genuine, certified FESTO product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Valve function5/2-way, double solenoid

Type of actuationElectrical

Construction width40

Standard nominal flow rate (standardised to DIN 1343)2000

pneumatic working portG3/8

Operating pressure0.2, 0.8

Operating pressure2, 8

DesignPiston gate valve

Type of resetMechanical spring

CE mark (see declaration of conformity)To EU Explosion Protection Directive (ATEX)

Explosion protection certification outside the EUEPL Db (GB), EPL Gb (GB)

UKCA marking (see declaration of conformity)To UK EX instructions

ATEX category gasII 2G

ATEX category dustII 2D

Explosion ignition protection type for gasEx h IIC T4 Gb

Explosion ignition protection type for dustEx h IIIC T130°C Db

Explosion ambient temperature-5°C <= Ta <= +40°C

Degree of protectionIP65

Nominal size12

Grid dimension41

Exhaust-air functionCan be throttled

Sealing principleSoft

Mounting positionAny

Manual overrideNon-detenting

Type of pilotingPiloted

Pilot air supplyInternal

Flow directionNon-reversible

Symbol00991013

lapOverlap

Max. switching frequency3

Switching time reversal12

Max. positive test pulse with 0 signal2200

Max. negative test pulse with 1 signal3700

Explosion protectionZone 1 (ATEX), Zone 1 (UKEX), Zone 2 (ATEX), Zone 21 (ATEX), Zone 21 (UKEX), Zone 22 (ATEX)

Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]

Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)

Corrosion resistance class CRC1 - Low corrosion stress

LABS (PWIS) conformityVDMA24364-B1/B2-L

Storage temperature-40, 60

Media temperature-5, 40

Ambient temperature-5, 40

Product weight650

Electrical connectionVia F coil, to be ordered separately

Type of mountingWith through-hole

Pilot exhaust port 82M5

Pilot exhaust port 84M5

Pneumatic connection, port 1G3/8

Pneumatic connection, port 2G3/8

Pneumatic connection, port 3G3/8

Pneumatic connection, port 4G3/8

Pneumatic connection, port 5G3/8

Note on materialsRoHS compliant

Material sealsNBR

Material housingDie-cast aluminium

Accessories 23

Genuine accessories that can be used with the FESTO JMFH-5-3/8-B-EX motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
UC-M5	Silencer · Silencer
QS-G3/8-12	Push-in fitting · Fittings
QS-G3/8-12-I	Push-in fitting · Fittings
QSL-G3/8-12	Push-in L-fitting · Fittings
PUN-H-12X2-NT	Plastic tubing · Tubes
QSLL-G3/8-12	Push-in L-fitting, long · Fittings
PUN-H-12X2-BL	Plastic tubing · Tubes
PUN-H-12X2-SW	Plastic tubing · Tubes
PUN-H-12X2-TBL	Plastic tubing · Tubes
AHB-MD/MF/MV	Manual override · General accessories
VACF-B-K1-1-1-EX4-M	Solenoid coil · Electrical accessories
VACF-B-K1-3A-1-EX4-M	Solenoid coil · Electrical accessories
VACF-B-K1-16B-1-EX4-M	Solenoid coil · Electrical accessories
MSFG-24-EX	Solenoid coil · Electrical accessories
MSFW-24-50/60-EX	Solenoid coil · Electrical accessories
MSFW-110-50/60-EX	Solenoid coil · Electrical accessories
MSFW-230-50/60-EX	Solenoid coil · Electrical accessories
VACF-B-K1-1-5-EX4-M	Solenoid coil · Electrical accessories
VACF-B-K1-1-10-EX4-M	Solenoid coil · Electrical accessories
VACF-B-K1-1-20-EX4-M	Solenoid coil · Electrical accessories
VACF-B-K1-1A-1-EX4-M	Solenoid coil · Electrical accessories
VACF-B-K1-3A-5-EX4-M	Solenoid coil · Electrical accessories
VACF-B-K1-16B-5-EX4-M	Solenoid coil · Electrical accessories
