How can I get a price quote for FESTO JDH-5-1/4-EX?

You can request a fast quote for FESTO JDH-5-1/4-EX from Yılsa Engineering. Reference part number CEY-937FC7820134. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is FESTO JDH-5-1/4-EX in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is FESTO JDH-5-1/4-EX genuine and new?

Yes. This FESTO product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for FESTO JDH-5-1/4-EX?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

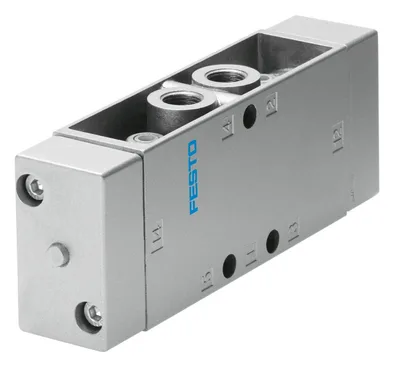

FESTO JDH-5-1/4-EX

Pneumatic valve. Sturdy and reliable. Poppet valve. All-metal version. Principle with armature tube. Variants to EU Explosion Protection Directive (ATEX)

FESTOMFR # JDH-5-1/4-EXSKU # CEY-937FC7820134

Valve function5/2-way, bistable, dominant

Type of actuationPneumatic

Construction width30.5

pneumatic working portG1/4

Operating pressure0, 0.8

Operating pressure0, 8

Have questions?Chat on WhatsApp

About This Product

Pneumatic valve. Sturdy and reliable. Poppet valve. All-metal version. Principle with armature tube. Variants to EU Explosion Protection Directive (ATEX)

FESTO JDH-5-1/4-EX

Genuine, certified FESTO product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Valve function5/2-way, bistable, dominant

Type of actuationPneumatic

Construction width30.5

Standard nominal flow rate (standardised to DIN 1343)1100

pneumatic working portG1/4

Operating pressure0, 0.8

Operating pressure0, 8

DesignPoppet seat

Degree of protectionIP65

CE mark (see declaration of conformity)To EU Explosion Protection Directive (ATEX)

UKCA marking (see declaration of conformity)To UK EX instructions

ATEX category gasII 2G

ATEX category dustII 2D

Explosion ignition protection type for gasEx h IIC T4 Gb

Explosion ignition protection type for dustEx h IIIC T130°C Db

Explosion ambient temperature-10°C <= Ta <= +60°C

Explosion protection certification outside the EUEPL Gb (GB)

Nominal size7

Grid dimension32

Exhaust-air functionCan be throttled

Sealing principleSoft

Mounting positionAny

Type of pilotingDirect

Pilot air supplyExternal

Flow directionNon-reversible

Symbol00995764

lapUnderlap

Pilot pressure0.23, 1

Pilot pressure2.3, 10

Max. switching frequency12

Switching time reversal12

Explosion protectionZone 1 (ATEX), Zone 1 (UKEX), Zone 2 (ATEX), Zone 21 (ATEX), Zone 21 (UKEX), Zone 22 (ATEX)

Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]

Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)

Corrosion resistance class CRC1 - Low corrosion stress

LABS (PWIS) conformityVDMA24364-B1/B2-L

Storage temperature-20, 60

Media temperature-10, 60

Ambient temperature-10, 60

Product weight330

Type of mountingOn manifold rail, With through-hole

Breather connectionM3

Pilot air port 12G1/8

Pilot air port 14G1/8

Pneumatic connection, port 1G1/4

Pneumatic connection, port 2G1/4

Pneumatic connection, port 3G1/4

Pneumatic connection, port 4G1/4

Pneumatic connection, port 5G1/4

Note on materialsRoHS compliant

Material sealsNBR, TPE-U(PU)

Material housingDie-cast aluminium

Accessories 11

Genuine accessories that can be used with the FESTO JDH-5-1/4-EX motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
MF-LD-12-24DC	Illuminating seal · Electrical accessories
MF-LD-230AC	Illuminating seal · Electrical accessories
U-1/4	Silencer · Silencer
PUN-H-10X1,5-BL	Plastic tubing · Tubes
PUN-H-10X1,5-SW	Plastic tubing · Tubes
PUN-H-10X1,5-TBL	Plastic tubing · Tubes
QS-G1/4-10	Push-in fitting · Fittings
QS-G1/4-10-I	Push-in fitting · Fittings
QSL-G1/4-10	Push-in L-fitting · Fittings
QSLL-G1/4-10	Push-in L-fitting, long · Fittings
PUN-H-10X1,5-NT	Plastic tubing · Tubes
