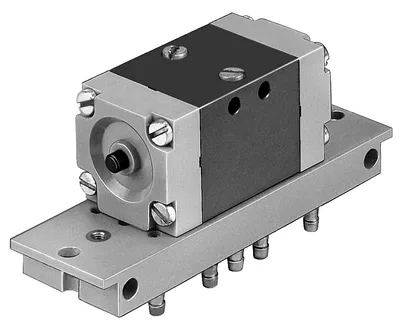

Festo JD-5-PK-3

Pneumatic valve. Control elements with all functions for pneumatic sequence controls. For control cabinet installation. Fast replacement of components

FestoMFR # JD-5-PK-3SKU # CEY-937FC78279D5

Valve function5/2-way, bistable, dominant

pneumatic working portPK-3

Operating pressure1, 8

DesignPoppet seat

Nominal size2.5

Symbol00991011

Have questions?Chat on WhatsApp

About This Product

Pneumatic valve. Control elements with all functions for pneumatic sequence controls. For control cabinet installation. Fast replacement of components

Festo JD-5-PK-3

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Valve function5/2-way, bistable, dominant

Standard nominal flow rate (standardised to DIN 1343)105

pneumatic working portPK-3

Operating pressure1, 8

DesignPoppet seat

Nominal size2.5

Symbol00991011

Switching time reversal9

Switching time reversal (dominating)25

Operating mediumCompressed air to ISO 8573-1:2010 [7:-:-]

LABS (PWIS) conformityVDMA24364-B1/B2-L

Ambient temperature0, 60

Product weight130

Type of mountingOn sub-base, On mounting frame, With through-hole

Auxiliary pilot air port 12PK-3

Auxiliary pilot air port 14PK-3

Pneumatic connection, port 1PK-3

Pneumatic connection, port 2PK-3

Pneumatic connection, port 3PK-3

Pneumatic connection, port 4PK-3

Pneumatic connection, port 5PK-3

Note on materialsRoHS compliant

Material sub-baseBrass, Reinforced PPS

Material sealsNBR

Material housingDie-cast zinc

Accessories 4

Genuine accessories that can be used with the Festo JD-5-PK-3 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
DIN 84-M6X12-4.8	Socket head screw · Mounting accessories
DIN 84-M6X18-4.8	Socket head screw · Mounting accessories
NRRQ-2N	Mounting frame · Mounting accessories
NRW-9/1,5-B	Mounting bracket · Mounting accessories
