How can I get a price quote for Festo HE-G1/2-LO?

You can request a fast quote for Festo HE-G1/2-LO from Yılsa Engineering. Reference part number CEY-937FC7821457. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Festo HE-G1/2-LO in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Festo HE-G1/2-LO genuine and new?

Yes. This Festo product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Festo HE-G1/2-LO?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

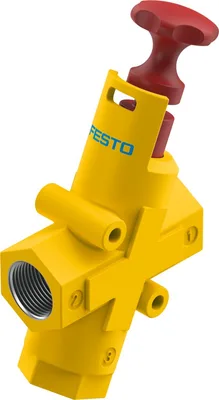

Festo HE-G1/2-LO

Shut-off valve. For shutting off the compressed air supply whilst simultaneously exhausting systems powered by compressed air. Can be locked in the closed position. Screwed into piping, through-holes for wall mounting. To OSHA 29 CFR 147

FestoMFR # HE-G1/2-LOSKU # CEY-937FC7821457

DesignPiston gate valve

Type of actuationManual

Sealing principleSoft

Exhaust-air functionCannot be throttled

Manual overrideNone

Symbol00991672

Have questions?Chat on WhatsApp

About This Product

Festo HE-G1/2-LO

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

DesignPiston gate valve

Type of actuationManual

Sealing principleSoft

Exhaust-air functionCannot be throttled

Manual overrideNone

Symbol00991672

Valve function3/2-way, double solenoid

Operating pressure1, 10

C value28.13

b value0.28

Standard nominal flow rate (standardised to DIN 1343)6200

Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]

Corrosion resistance class CRC3 - high corrosion stress

LABS (PWIS) conformityVDMA24364-B1/B2-L

Media temperature-10, 60

Ambient temperature-10, 60

Type of mountingInline installation, With through-hole

Mounting positionAny

Flow directionNon-reversible

Product weight1100

Pneumatic connection, port 1G1/2

Pneumatic connection, port 2G1/2

Pneumatic connection, port 3G1

Material sealsNBR, TPE-U(PU)

Material housingDie-cast aluminium, PBT

Accessories 4

Genuine accessories that can be used with the Festo HE-G1/2-LO motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
CK-1/2-PK-13	Quick connector · Quick connectors
LCK-1/2-PK-13	Elbow quick connector · Quick connectors
TCK-1/2-PK-13	T-quick connector · Quick connectors
CK-1/2-PK-9	Quick connector · Quick connectors
