How can I get a price quote for Festo FRCS-1/2-D-MIDI-A?

You can request a fast quote for Festo FRCS-1/2-D-MIDI-A from Yılsa Engineering. Reference part number CEY-937FC7821DBA. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Festo FRCS-1/2-D-MIDI-A in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Festo FRCS-1/2-D-MIDI-A genuine and new?

Yes. This Festo product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Festo FRCS-1/2-D-MIDI-A?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

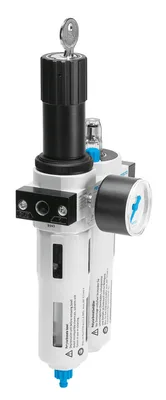

Festo FRCS-1/2-D-MIDI-A

Service unit. Filter, regulator and lubricator functions in a single unit. Size micro, mini, midi, maxi

FestoMFR # FRCS-1/2-D-MIDI-ASKU # CEY-937FC7821DBA

SizeMidi

SeriesD

Actuator lockRotary knob with integrated lock

Mounting positionVertical +/-5°

Condensate drainFully automatic

DesignProportional standard mist lubricator

Have questions?Chat on WhatsApp

About This Product

Service unit. Filter, regulator and lubricator functions in a single unit. Size micro, mini, midi, maxi

Festo FRCS-1/2-D-MIDI-A

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

SizeMidi

SeriesD

Actuator lockRotary knob with integrated lock

Mounting positionVertical +/-5°

Condensate drainFully automatic

DesignProportional standard mist lubricator

Max. condensate volume43

Grade of filtration40

Bowl guardMetal bowl guard

Symbol00991509

Pressure gauge (ANALOG) or Pressure display (DIGITAL)With pressure gauge

Operating pressure0.2, 1.2

Operating pressure2, 12

Pressure regulation range0.5, 12

Max. pressure hysteresis0.02

Max. pressure hysteresis0.2

Max. pressure hysteresis2.9

Standard nominal flow rate (standardised to DIN 1343)2600

Operating mediumCompressed air to ISO 8573-1:2010 [7:9:-], Inert gas

Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)

LABS (PWIS) conformityVDMA24364-B1/B2-L

Air purity class at outputCompressed air to ISO 8573-1:2010 [7:8:-], Inert gas

Media temperature-10, 60

Ambient temperature-10, 60

Product weight1680

Type of mountingWith accessories

Pneumatic connection, port 1G1/2

Pneumatic connection, port 2G1/2

Note on materialsRoHS compliant

Material housingDie-cast zinc

Material bowlMakrolon®

Accessories 121

Genuine accessories that can be used with the Festo FRCS-1/2-D-MIDI-A motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
OFSW-32	Special oil · General accessories
LFP-D-MIDI-40M	Filter cartridge · General accessories
HFOE-D-MIDI/MAXI	Mounting bracket · Mounting accessories
PUN-H-12X2-NT	Plastic tubing · Tubes
PUN-H-12X2-BL	Plastic tubing · Tubes
PUN-H-12X2-TBL	Plastic tubing · Tubes
PUN-H-12X2-SW	Plastic tubing · Tubes
QS-G1/2-12	Push-in fitting · Fittings
QS-G1/2-12-I	Push-in fitting · Fittings
QSL-G1/2-12	Push-in L-fitting · Fittings
CK-1/2-PK-13	Quick connector · Quick connectors
LCK-1/2-PK-13	Elbow quick connector · Quick connectors
TCK-1/2-PK-13	T quick connector · Quick connectors
QSW-1/2-12	Push-in fitting · Push-in fittings
QSW-1/2-16	Push-in fitting · Push-in fittings
QS-1/2-12-20	Push-in fitting · Push-in fittings
QS-1/2-16-20	Push-in fitting · Push-in fittings
QSL-1/2-12-20	Push-in L-fitting · Push-in fittings
QSL-1/2-16-20	Push-in L-fitting · Push-in fittings
QS-G1/2-12-20	Push-in fitting · Push-in fittings
QS-G1/2-16-20	Push-in fitting · Push-in fittings
QSL-G1/2-12-20	Push-in L-fitting · Push-in fittings
QSL-G1/2-16-20	Push-in L-fitting · Push-in fittings
QS-1/2-10-50	Push-in fitting · Push-in fittings
QSL-1/2-10-50	Push-in L-fitting · Push-in fittings
QSY-1/2-10	Push-in Y-fitting · Push-in fittings
QS-1/2-12	Push-in fitting · Push-in fittings
QS-1/2-16	Push-in fitting · Push-in fittings
QS-1/2-12-I	Push-in fitting · Push-in fittings
QSL-1/2-12	Push-in L-fitting · Push-in fittings
QSL-1/2-16	Push-in L-fitting · Push-in fittings
QSLL-1/2-12	Push-in L-fitting, long · Push-in fittings
QSLV-1/2-12	Push-in L-fitting · Push-in fittings
QSLV-1/2-16	Push-in L-fitting · Push-in fittings
QSLV-1/2-12-I	Push-in L-fitting · Push-in fittings
QST-1/2-12	Push-in T-fitting · Push-in fittings
QST-1/2-16	Push-in T-fitting · Push-in fittings
QSTL-1/2-12	Push-in T-fitting · Push-in fittings
QSTL-1/2-16	Push-in T-fitting · Push-in fittings
QSY-1/2-12	Push-in Y-fitting · Push-in fittings
QSYL-1/2-12	Push-in Y-fitting · Push-in fittings
QSTF-1/2-12-B	Push-in T-fitting · Push-in fittings
QSYLV-1/2-12	Push-in Y-fitting · Push-in fittings
QSYTF-1/2-12-B	Multiple distributor · Push-in fittings
QSLV2-1/2-12	Multiple distributor · Push-in fittings
QSLV3-1/2-12	Multiple distributor · Push-in fittings
QSLV4-1/2-12	Multiple distributor · Push-in fittings
QSLV6-1/2-12	Multiple distributor · Push-in fittings
QSR-1/2-12	Push-in fitting, rotatable · Push-in fittings
QSRL-1/2-12	Push-in L-fitting, rotatable · Push-in fittings
QSK-1/2-12	Push-in fitting, self-sealing · Push-in fittings
QSKL-1/2-12	Push-in L-fitting,self-sealing · Push-in fittings
FRB-D-MIDI	Threaded bolt · Mounting accessories
QS-V0-1/2-10	Push-in fitting · Push-in fittings
QS-V0-1/2-12	Push-in fitting · Push-in fittings
QST-V0-1/2-10	Push-in T-fitting · Push-in fittings
QST-V0-1/2-12	Push-in T-fitting · Push-in fittings
CQ-1/2-12	Push-in fitting · Connection accessories
CQ-1/2-15	Push-in fitting · Connection accessories
CQ-1/2-18	Push-in fitting · Connection accessories
QS-1/2-3/8-I-U-M	Push-in fitting · Push-in fittings
QS-1/2-1/2-I-U-M	Push-in fitting · Push-in fittings
QS-G1/2-16	Push-in fitting · Push-in fittings
QSL-G1/2-16	Push-in L-fitting · Push-in fittings
QSLL-G1/2-12	Push-in L-fitting, long · Push-in fittings
QSLV-G1/2-12	Push-in L-fitting · Push-in fittings
QSLV-G1/2-16	Push-in L-fitting · Push-in fittings
QSLV-G1/2-12-I	Push-in L-fitting · Push-in fittings
QST-G1/2-12	Push-in T-fitting · Push-in fittings
QST-G1/2-16	Push-in T-fitting · Push-in fittings
QSTL-G1/2-12	Push-in T-fitting · Push-in fittings
QSTL-G1/2-16	Push-in T-fitting · Push-in fittings
QSY-G1/2-12	Push-in Y-fitting · Push-in fittings
QSYL-G1/2-12	Push-in Y-fitting · Push-in fittings
QSTF-G1/2-12	Push-in T-fitting · Push-in fittings
QSYLV-G1/2-12	Push-in Y-fitting · Push-in fittings
QSYTF-G1/2-12	Multiple distributor · Push-in fittings
QSLV2-G1/2-12	Multiple distributor · Push-in fittings
QSLV3-G1/2-12	Multiple distributor · Push-in fittings
QSLV4-G1/2-12	Multiple distributor · Push-in fittings
QSLV6-G1/2-12	Multiple distributor · Push-in fittings
QSR-G1/2-12	Push-in fitting, rotatable · Push-in fittings
QSRL-G1/2-12	Push-in L-fitting, rotatable · Push-in fittings
QSK-G1/2-12	Push-in fitting, self-sealing · Push-in fittings
QSKL-G1/2-12	Push-in L-fitting,self-sealing · Push-in fittings
QS-V0-G1/2-10	Push-in fitting · Push-in fittings
QS-V0-G1/2-12	Push-in fitting · Push-in fittings
QST-V0-G1/2-10	Push-in T-fitting · Push-in fittings
QST-V0-G1/2-12	Push-in T-fitting · Push-in fittings
QS-1/2-10	Push-in fitting · Push-in fittings
QS-1/2-10-I	Push-in fitting · Push-in fittings
QSL-1/2-10	Push-in L-fitting · Push-in fittings
QSLL-1/2-10	Push-in L-fitting, long · Push-in fittings
QSLL-G1/2-16	Push-in L-fitting, long · Push-in fittings
QST-1/2-10	Push-in T-fitting · Push-in fittings
CK-1/2-PK-9	Quick connector · Quick connectors
NPFC-L-2G12-F	Elbow fitting · Push-in fittings
NPFC-Y-3G12-F	Y-fitting · Push-in fittings
NPFC-T-3G12-F	T-fitting · Push-in fittings
NPFC-T-2G12-R12-FMF	T-fitting · Push-in fittings
NPFC-T-G12-2R12-FMM	T-fitting · Push-in fittings
NPFC-X-4G12-F	X-fitting · Push-in fittings
NPFC-D-2G12-M	Double nipple · Push-in fittings
NPFC-S-2G12-F	Sleeve · Push-in fittings
NPFC-E1-2G12-FM	Extension · Push-in fittings
NPFC-R-G12-G14-MF	Reducing nipple · Push-in fittings
NPFC-R-G12-G38-MF	Reducing nipple · Push-in fittings
NPFC-R-G12-G38-FM	Reducing nipple · Push-in fittings
NPFC-D-2G12-M-P50	Double nipple · Push-in fittings
NPFC-D-G12-G34-M	Double nipple · Push-in fittings
NPFC-R-G12-G18-F	Reducing sleeve · Push-in fittings
NPFC-R-G12-G14-F	Reducing sleeve · Push-in fittings
NPFC-R-G12-G38-F	Reducing sleeve · Push-in fittings
NPFC-R-G12-G14-MF-P50	Reducing nipple · Push-in fittings
NPFC-R-G12-G38-MF-P50	Reducing nipple · Push-in fittings
NPFC-H-G12-F	Bulkhead fitting · Push-in fittings
NPFC-DS-G14-G12-M	Double nipple · Push-in fittings
NPFC-DS-G38-G12-M	Double nipple · Push-in fittings
NPFC-DS-G12-G12-M	Double nipple · Push-in fittings
NPFC-RS-G12-G14-MF	Reducing nipple · Push-in fittings
NPFC-RS-G12-G38-MF	Reducing nipple · Push-in fittings
