How can I get a price quote for Festo EXCM-40-?

You can request a fast quote for Festo EXCM-40- from Yılsa Engineering. Reference part number YLSSBSDXFMXTMVU. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Festo EXCM-40- in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Festo EXCM-40- genuine and new?

Yes. This Festo product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Festo EXCM-40-?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

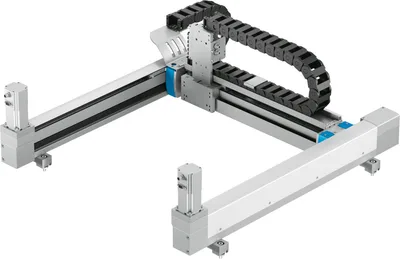

Festo EXCM-40-

Planar surface gantry. Axis mechanism based on parallel kinematic operational principle. Excellent functionality in small installation spaces. Low moving dead weight and flat system design. Ideal in combination with stepper motors. With recirculating ball bearing guide. Sustainable operation due to weight-optimised axes. Fits perfectly into our comprehensive product portfolio of electromechanical actuators, motors, servo drives and control systems

FestoMFR # EXCM-40-SKU # YLSSBSDXFMXTMVU

Size40

Stroke of the X-axis200, 2000

Stroke of the Y-axis200, 1000

Mounting positionHorizontal

DesignPlanar surface gantry

Type of motorStepper motor

Have questions?Chat on WhatsApp

About This Product

Festo EXCM-40-

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Size40

Stroke of the X-axis200, 2000

Stroke of the Y-axis200, 1000

Mounting positionHorizontal

DesignPlanar surface gantry

Type of motorStepper motor

Operating pressure8

Max. permissible acceleration, only mechanical system20

Max. horizontal acceleration5

Max. permissible speed, only mechanical system2

Max. horizontal speed1

Repetition accuracy±0.1 mm

Duty cycle100%

CE mark (see declaration of conformity)To EC Machinery Directive

UKCA marking (see declaration of conformity)To UK regulations for machines

LABS (PWIS) conformityVDMA24364 zone III

Storage temperature-10, 60

Relative air humidityNon-condensing

Sound pressure level65

Degree of protectionIP40

Ambient temperature10, 50

Nominal load at max. dynamic response4

Type of mountingWith mounting kit, With adjusting kit, With slot nuts

Note on materialsRoHS compliant

Accessories 42

Genuine accessories that can be used with the Festo EXCM-40- motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
GFCH-3	Commissioning · Services
GFCH-1	Commissioning · Services
GFCH-2	Commissioning · Services
GFCH-2-G-R	Remote commissioning · Services
GFCH-3-G-R	Remote commissioning · Services
GFCH-1-G-R	Remote commissioning · Services
GFCH-1-R	Remote commissioning · Services
GFCH-2-R	Remote commissioning · Services
GFCH-3-R	Remote commissioning · Services
SIES-8M-NO-24V-K-7,5-OE	Proximity sensor · Position sensing
SIES-8M-PO-24V-K-0,3-M8D	Proximity sensor · Position sensing
SIES-8M-NO-24V-K-0,3-M8D	Proximity sensor · Position sensing
SIES-8M-PO-24V-K-7,5-OE	Proximity sensor · Position sensing
EAMM-A-X48-57A	Axial kit · Mounting accessories
EAMM-A-X48-87A	Axial kit · Mounting accessories
NEBM-M12G8-E-5-S1G9	Encoder cable · Electrical accessories
NEBM-M12G8-E-10-S1G9	Encoder cable · Electrical accessories
NEBM-M12G8-E-15-S1G9	Encoder cable · Electrical accessories
NEBM-M12G8-E- -S1G9	Encoder cable · Electrical accessories
SME-10M-DS-24V-E-0,3-L-M8D	Proximity sensor · Cylinder sensors for direct mounting
SIES-8M-PS-24V-K-7,5-OE	Proximity sensor · Cylinder sensors for direct mounting
SIES-8M-PS-24V-K-0,3-M8D	Proximity sensor · Cylinder sensors for direct mounting
SIES-8M-PS-24V-K-2,5-M8D	Proximity sensor · Cylinder sensors for direct mounting
SIES-8M-PS-24V-K-5,0-M8D	Proximity sensor · Cylinder sensors for direct mounting
SIES-8M-PS-24V-K-10-M8D	Proximity sensor · Cylinder sensors for direct mounting
SIES-8M-PO-24V-K-2,5-M8D	Proximity sensor · Cylinder sensors for direct mounting
SIES-8M-PO-24V-K-5,0-M8D	Proximity sensor · Cylinder sensors for direct mounting
SIES-8M-PO-24V-K-10-M8D	Proximity sensor · Cylinder sensors for direct mounting
SIES-8M-NS-24V-K-7,5-OE	Proximity sensor · Cylinder sensors for direct mounting
SIES-8M-NS-24V-K-0,3-M8D	Proximity sensor · Cylinder sensors for direct mounting
SIES-8M-NS-24V-K-2,5-M8D	Proximity sensor · Cylinder sensors for direct mounting
SIES-8M-NS-24V-K-5,0-M8D	Proximity sensor · Cylinder sensors for direct mounting
SIES-8M-NS-24V-K-10-M8D	Proximity sensor · Cylinder sensors for direct mounting
SIES-8M-NO-24V-K-2,5-M8D	Proximity sensor · Cylinder sensors for direct mounting
SIES-8M-NO-24V-K-5,0-M8D	Proximity sensor · Cylinder sensors for direct mounting
SIES-8M-NO-24V-K-10-M8D	Proximity sensor · Cylinder sensors for direct mounting
EAPR-E12-40	Sensor mounting · Mounting accessories
EADT-W-E12	Adjusting tool · Mounting accessories
EAHM-E12-K-40	Mounting kit · Mounting accessories
NEBM-M12G8-E-20-S1G9	Encoder cable · Electrical accessories
NEBM-M12G8-E-25-S1G9	Encoder cable · Electrical accessories
EADC-E12-40	Adjusting kit · Mounting accessories
