How can I get a price quote for Festo EXCH-40-?

You can request a fast quote for Festo EXCH-40- from Yılsa Engineering. Reference part number YLSWPKH4TH57Y. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Festo EXCH-40- in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Festo EXCH-40- genuine and new?

Yes. This Festo product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Festo EXCH-40-?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

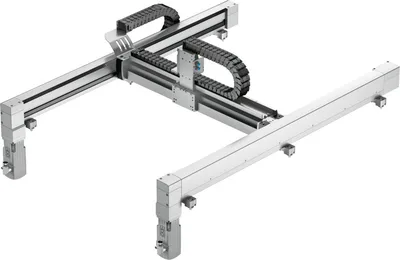

Festo EXCH-40-

Planar surface gantry. Axis mechanism based on parallel kinematic operational principle. Optimal dynamic response when compared with other Cartesian gantry systems. Drive concept with low moving dead weight and large workspace. High accelerations in both axis directions in combination with servo motors. Sustainable operation due to weight-optimised axes. The motor can be flexibly mounted on 2 sides. Fits perfectly into our comprehensive product portfolio of electromechanical actuators, motors, servo drives and control systems

FestoMFR # EXCH-40-SKU # YLSWPKH4TH57Y

Size40

Mounting positionVertical, Horizontal

DesignPlanar surface gantry

Operating pressure8

Max. horizontal acceleration50

Max. vertical acceleration30

Have questions?Chat on WhatsApp

About This Product

Festo EXCH-40-

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Size40

Mounting positionVertical, Horizontal

DesignPlanar surface gantry

Operating pressure8

Max. horizontal acceleration50

Max. vertical acceleration30

Max. horizontal speed5

Max. vertical speed4

Repetition accuracy±0.1 mm

Duty cycle100%

CE mark (see declaration of conformity)To EC Machinery Directive

UKCA marking (see declaration of conformity)To UK regulations for machines

LABS (PWIS) conformityVDMA24364 zone III

Storage temperature-10, 60

Relative air humidityNon-condensing

Sound pressure level74

Degree of protectionIP40

Ambient temperature10, 50

Nominal load at max. dynamic response4

Type of mountingWith mounting kit, With adjusting kit, With slot nuts

Note on materialsRoHS compliant

Accessories 4

Genuine accessories that can be used with the Festo EXCH-40- motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
SME-10M-DS-24V-E-0,3-L-M8D	Proximity sensor · Cylinder sensors for direct mounting
SIES-8M-PS-24V-K-0,3-M8D	Proximity sensor · Cylinder sensors for direct mounting
CACR-KL2-40-W2000	Braking resistor · Electrical accessories
EAMM-A-X48-57A	Axial kit · Mounting accessories
