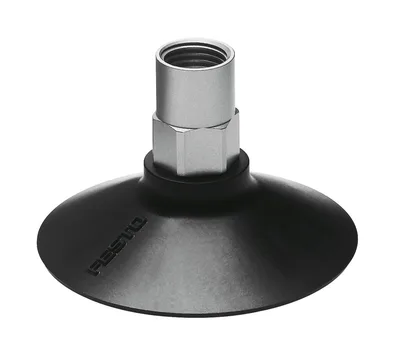

FESTO ESS-60-GT-G1/4-I

Suction cup with connection. Suction cup consisting of the suction cup itself, plus the support plate with mounting. Suction cup volume: 0.002 … 245 cm³. Min. workpiece radius: 10 … 680 mm. Mounting for suction cup holder: female thread, male thread, push-in connector. Suction cup with mounting thread

FESTOMFR # ESS-60-GT-G1/4-ISKU # CEY-937FC782111E

Min. workpiece radius75

Nominal size2.5

Suction cup diameter60

Suction cup volume11.3

Mounting positionAny

Symbol00991485

Have questions?Chat on WhatsApp

About This Product

FESTO ESS-60-GT-G1/4-I

Genuine, certified FESTO product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Height compensator for suction-cup holder6

Min. workpiece radius75

Nominal size2.5

Suction cup diameter60

Suction cup volume11.3

Mounting positionAny

Symbol00991485

Suction cup shapeRound deep

Operating pressure-0.95, 0

Nominal operating pressure-0.7

Operating mediumAtmospheric air based on ISO 8573-1:2010 [7:-:-]

Corrosion resistance class CRC2 - Moderate corrosion stress

LABS (PWIS) conformityVDMA24364-A1-L

Ambient temperature-10, 80

Holding force at nominal operating pressure134

Lateral force at nominal operating pressure37

Product weight19.5

Type of mountingVia vacuum port

Vacuum connectionG1/4

ColourReddish brown

Shore hardness72 +/-5

Material screwed plugWrought aluminium alloy

Note on materialsRoHS compliant

Material suction cupVULKOLLAN

Accessories 7

Genuine accessories that can be used with the FESTO ESS-60-GT-G1/4-I motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
ESH-HA-5-G	Holder for suction cup with connection · Mounting accessories
ESH-HB-5-G	Holder for suction cup with connection · Mounting accessories
ESH-HC-5-G	Holder for suction cup with connection · Mounting accessories
ESH-HCL-5-G	Holder for suction cup with connection · Mounting accessories
ESH-HD-5-G	Holder for suction cup with connection · Mounting accessories
ESH-HDL-5-G	Holder for suction cup with connection · Mounting accessories
ESH-HE-5-G1/4	Holder for suction cup with connection · Mounting accessories
