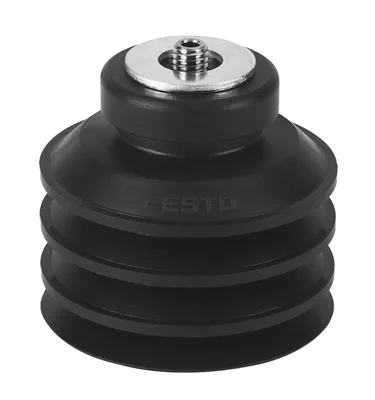

FESTO ESS-40-CN

Suction cup with connection. Suction cup consisting of the suction cup itself, plus the support plate with mounting. Suction cup volume: 0.002 … 245 cm³. Min. workpiece radius: 10 … 680 mm. Mounting for suction cup holder: female thread, male thread, push-in connector. Suction cup with mounting thread

FESTOMFR # ESS-40-CNSKU # CEY-937FC7822563

Height compensator for suction cup12.8

Min. workpiece radius100

Nominal size3

Suction cup diameter40

Suction cup volume19.72

Position of connectionOn top

Have questions?Chat on WhatsApp

About This Product

FESTO ESS-40-CN

Genuine, certified FESTO product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Height compensator for suction cup12.8

Min. workpiece radius100

Nominal size3

Suction cup diameter40

Suction cup volume19.72

Position of connectionOn top

Mounting positionAny

Symbol00991485

Correlation to suction-cup holderSize 4

Suction cup shapeRound protective bellows 3.5-fold

Operating pressure-0.095, 0

Operating pressure-0.95, 0

Operating pressure-13.775, 0

Nominal operating pressure-0.07

Nominal operating pressure-0.7

Nominal operating pressure-10.15

Operating mediumAtmospheric air based on ISO 8573-1:2010 [7:-:-]

Corrosion resistance class CRC1 - Low corrosion stress

LABS (PWIS) conformityVDMA24364-A1-L

Suitable for use with foodSee supplementary material information

Ambient temperature-10, 70

Holding force at nominal operating pressure42.4

Lateral force at nominal operating pressure47.5

Product weight21.9

Type of mountingVia vacuum port

Vacuum connectionM6

ColourBlack

Shore hardness50 +/-5

Material screwed plugNickel-plated wrought aluminium alloy, Nickel-plated brass, Steel, galvanised and chrome-plated

Note on materialsRoHS compliant

Material suction cupNBR

Accessories 15

Genuine accessories that can be used with the FESTO ESS-40-CN motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
ESH-HA-4-QS	Holder for suction cup with connection · Mounting accessories
ESH-HA-4-PK	Holder for suction cup with connection · Mounting accessories
ESH-HB-4-QS	Holder for suction cup with connection · Mounting accessories
ESH-HB-4-PK	Holder for suction cup with connection · Mounting accessories
ESH-HC-4-QS	Holder for suction cup with connection · Mounting accessories
ESH-HC-4-PK	Holder for suction cup with connection · Mounting accessories
ESH-HCL-4-QS	Holder for suction cup with connection · Mounting accessories
ESH-HCL-4-PK	Holder for suction cup with connection · Mounting accessories
ESH-HD-4-QS	Holder for suction cup with connection · Mounting accessories
ESH-HD-4-PK	Holder for suction cup with connection · Mounting accessories
ESH-HDL-4-QS	Holder for suction cup with connection · Mounting accessories
ESH-HDL-4-PK	Holder for suction cup with connection · Mounting accessories
ESH-HE-4-G1/8	Holder for suction cup with connection · Mounting accessories
ESH-HF-4-M14X1	Holder for suction cup with connection · Mounting accessories
OASI-40	Suction-cup insert · General accessories
