How can I get a price quote for FESTO ESS-30-CN?

You can request a fast quote for FESTO ESS-30-CN from Yılsa Engineering. Reference part number CEY-937FC7822565. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is FESTO ESS-30-CN in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is FESTO ESS-30-CN genuine and new?

Yes. This FESTO product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for FESTO ESS-30-CN?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

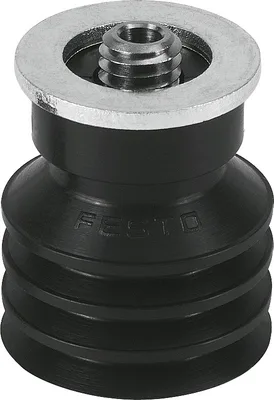

Photo may not represent actual item. Refer to name and product specs for all details.

FESTO ESS-30-CN

Suction cup with connection. Suction cup consisting of the suction cup itself, plus the support plate with mounting. Suction cup volume: 0.002 … 245 cm³. Min. workpiece radius: 10 … 680 mm. Mounting for suction cup holder: female thread, male thread, push-in connector. Suction cup with mounting thread

FESTOMFR # ESS-30-CNSKU # CEY-937FC7822565

Height compensator for suction cup10.5

Min. workpiece radius80

Nominal size3

Suction cup diameter30

Suction cup volume9.47

Position of connectionOn top

Have questions?Chat on WhatsApp

About This Product

FESTO ESS-30-CN

Genuine, certified FESTO product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Height compensator for suction cup10.5

Min. workpiece radius80

Nominal size3

Suction cup diameter30

Suction cup volume9.47

Position of connectionOn top

Mounting positionAny

Symbol00991485

Correlation to suction-cup holderSize 4

Suction cup shapeRound protective bellows 3.5-fold

Operating pressure-0.095, 0

Operating pressure-0.95, 0

Operating pressure-13.775, 0

Nominal operating pressure-0.07

Nominal operating pressure-0.7

Nominal operating pressure-10.15

Operating mediumAtmospheric air based on ISO 8573-1:2010 [7:-:-]

Corrosion resistance class CRC1 - Low corrosion stress

LABS (PWIS) conformityVDMA24364-A1-L

Suitable for use with foodSee supplementary material information

Ambient temperature-10, 70

Holding force at nominal operating pressure20.8

Lateral force at nominal operating pressure11.5

Product weight12.2

Type of mountingVia vacuum port

Vacuum connectionM6

ColourBlack

Shore hardness50 +/-5

Material screwed plugNickel-plated brass, Steel, galvanised and chrome-plated

Note on materialsRoHS compliant

Material suction cupNBR

Accessories 15

Genuine accessories that can be used with the FESTO ESS-30-CN motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
ESH-HA-4-QS	Holder for suction cup with connection · Mounting accessories
ESH-HA-4-PK	Holder for suction cup with connection · Mounting accessories
ESH-HB-4-QS	Holder for suction cup with connection · Mounting accessories
ESH-HB-4-PK	Holder for suction cup with connection · Mounting accessories
ESH-HC-4-QS	Holder for suction cup with connection · Mounting accessories
ESH-HC-4-PK	Holder for suction cup with connection · Mounting accessories
ESH-HCL-4-QS	Holder for suction cup with connection · Mounting accessories
ESH-HCL-4-PK	Holder for suction cup with connection · Mounting accessories
ESH-HD-4-QS	Holder for suction cup with connection · Mounting accessories
ESH-HD-4-PK	Holder for suction cup with connection · Mounting accessories
ESH-HDL-4-QS	Holder for suction cup with connection · Mounting accessories
ESH-HDL-4-PK	Holder for suction cup with connection · Mounting accessories
ESH-HE-4-G1/8	Holder for suction cup with connection · Mounting accessories
ESH-HF-4-M14X1	Holder for suction cup with connection · Mounting accessories
OASI-30	Suction-cup insert · General accessories
