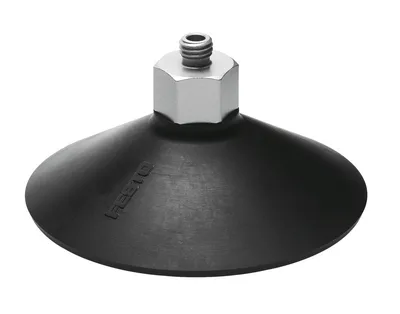

FESTO ESS-100-GT-G1/4

Suction cup with connection. Suction cup consisting of the suction cup itself, plus the support plate with mounting. Suction cup volume: 0.002 … 245 cm³. Min. workpiece radius: 10 … 680 mm. Mounting for suction cup holder: female thread, male thread, push-in connector. Suction cup with mounting thread

FESTOMFR # ESS-100-GT-G1/4SKU # CEY-937FC7821117

Min. workpiece radius135

Nominal size5.5

Suction cup diameter100

Suction cup volume53.9

Mounting positionAny

DesignRound, bell-shaped

Have questions?Chat on WhatsApp

About This Product

FESTO ESS-100-GT-G1/4

Genuine, certified FESTO product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Height compensator for suction-cup holder9

Min. workpiece radius135

Nominal size5.5

Suction cup diameter100

Suction cup volume53.9

Mounting positionAny

DesignRound, bell-shaped

Symbol00991485

Suction cup shapeRound deep

Operating pressure-0.95, 0

Nominal operating pressure-0.7

Operating mediumAtmospheric air based on ISO 8573-1:2010 [7:-:-]

Corrosion resistance class CRC2 - Moderate corrosion stress

LABS (PWIS) conformityVDMA24364-A1-L

Ambient temperature-10, 80

Breakaway force at 70% vacuum297

Holding force at nominal operating pressure375

Max. tightening torque for mounting thread11

Lateral force at nominal operating pressure183

Product weight87.5

Type of mountingVia vacuum port

Vacuum connectionG1/4

ColourReddish brown

Shore hardness72 +/-5

Material screwed plugWrought aluminium alloy

Note on materialsRoHS compliant

Material suction cupVULKOLLAN

Accessories 7

Genuine accessories that can be used with the FESTO ESS-100-GT-G1/4 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
ESH-HA-5-G	Holder for suction cup with connection · Mounting accessories
ESH-HB-5-G	Holder for suction cup with connection · Mounting accessories
ESH-HC-5-G	Holder for suction cup with connection · Mounting accessories
ESH-HCL-5-G	Holder for suction cup with connection · Mounting accessories
ESH-HD-5-G	Holder for suction cup with connection · Mounting accessories
ESH-HDL-5-G	Holder for suction cup with connection · Mounting accessories
ESH-HE-5-G1/4	Holder for suction cup with connection · Mounting accessories
