How can I get a price quote for FESTO ESS-100-GT-G1/4-I?

You can request a fast quote for FESTO ESS-100-GT-G1/4-I from Yılsa Engineering. Reference part number CEY-937FC7821118. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is FESTO ESS-100-GT-G1/4-I in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is FESTO ESS-100-GT-G1/4-I genuine and new?

Yes. This FESTO product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for FESTO ESS-100-GT-G1/4-I?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

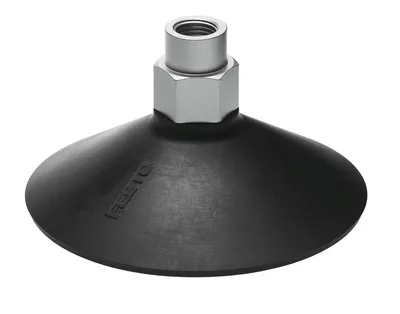

FESTO ESS-100-GT-G1/4-I

Suction cup with connection. Suction cup consisting of the suction cup itself, plus the support plate with mounting. Suction cup volume: 0.002 … 245 cm³. Min. workpiece radius: 10 … 680 mm. Mounting for suction cup holder: female thread, male thread, push-in connector. Suction cup with mounting thread

FESTOMFR # ESS-100-GT-G1/4-ISKU # CEY-937FC7821118

Min. workpiece radius135

Nominal size5.5

Suction cup diameter100

Suction cup volume53.9

Mounting positionAny

DesignRound, bell-shaped

Have questions?Chat on WhatsApp

About This Product

FESTO ESS-100-GT-G1/4-I

Genuine, certified FESTO product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Height compensator for suction-cup holder9

Min. workpiece radius135

Nominal size5.5

Suction cup diameter100

Suction cup volume53.9

Mounting positionAny

DesignRound, bell-shaped

Symbol00991485

Suction cup shapeRound deep

Operating pressure-0.95, 0

Nominal operating pressure-0.7

Operating mediumAtmospheric air based on ISO 8573-1:2010 [7:-:-]

Corrosion resistance class CRC2 - Moderate corrosion stress

LABS (PWIS) conformityVDMA24364-A1-L

Ambient temperature-10, 80

Breakaway force at 70% vacuum297

Holding force at nominal operating pressure375

Max. tightening torque for mounting thread11

Lateral force at nominal operating pressure183

Product weight89.5

Type of mountingVia vacuum port

Vacuum connectionG1/4

ColourReddish brown

Shore hardness72 +/-5

Material screwed plugWrought aluminium alloy

Note on materialsRoHS compliant

Material suction cupVULKOLLAN

Accessories 7

Genuine accessories that can be used with the FESTO ESS-100-GT-G1/4-I motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
ESH-HA-5-G	Holder for suction cup with connection · Mounting accessories
ESH-HB-5-G	Holder for suction cup with connection · Mounting accessories
ESH-HC-5-G	Holder for suction cup with connection · Mounting accessories
ESH-HCL-5-G	Holder for suction cup with connection · Mounting accessories
ESH-HD-5-G	Holder for suction cup with connection · Mounting accessories
ESH-HDL-5-G	Holder for suction cup with connection · Mounting accessories
ESH-HE-5-G1/4	Holder for suction cup with connection · Mounting accessories
