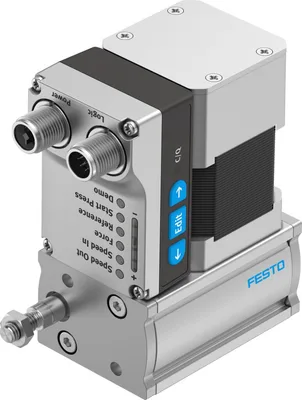

Festo EPCE-TB-45-

Electric cylinder unit. Complete solution consisting of drive mechanics, motor and servo drive. Innovative interpretation of toothed belt technology for maximum dynamic response and minimal positioning times. Perfect for use in applications where space is critical thanks to minimal zero stroke and extremely compact design. Product of the Simplified Motion Series: doesn't need any external servo drive or any control cabinet for the installation. Two control options integrated as standard: digital I/O and IO-Link. Fits perfectly into our comprehensive product portfolio of electromechanical actuators, motors, servo drives and control systems

FestoMFR # EPCE-TB-45-SKU # YLSU8GDXOPK904R

Effective diameter of drive pinion10.18

Size45

Stroke10, 50

Stroke reserve0

Piston rod threadM6

Toothed-belt stretch0.31

Have questions?Chat on WhatsApp

About This Product

Festo EPCE-TB-45-

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Effective diameter of drive pinion10.18

Size45

Stroke10, 50

Stroke reserve0

Piston rod threadM6

Toothed-belt stretch0.31

Toothed-belt pitch2

Mounting positionAny

Piston-rod endMale thread

Type of motorStepper motor

Position detectionMotor encoder

DesignWith toothed belt, With integrated drive

Symbol00997342

Protection against torque/guideWith plain-bearing guide

ReferencingPositive fixed stop block, Negative fixed stop block

Rotor position sensorAbsolute encoder, single turn

Rotor position sensor, encoder measuring principlemagnetic

Temperature monitoringSwitch-off for excessive temperature, Integrated precise CMOS temperature sensor with analogue output

Additional functionsBuilt-in end-position sensing

DisplayLED

Ready status indicationLED

Max. acceleration9

Max. speed0.44

Speed "Speed press"0.02

Repetition accuracy±0.05 mm

Features of digital logic outputsConfigurable, Not galvanically isolated

Duty cycle100%

Insulation protection classB

Max. current digital logic outputs100

Max. current consumption3000

Max. current consumption, logic0.3

Nominal voltage DC24

Nominal current3

Parameterisation interfaceIO-Link®, User interface

Rotor position transducer resolution16

Permissible voltage fluctuations+/- 15 %

Power supply, connection typePlug

power supply, connection systemM12x1, T-coded according to EN 61076-2-111

Power supply, number of pins/wires4

Power supply, connection pattern00995989

ApprovalRCM

KC markKC-EMV

CE mark (see declaration of conformity)To EU EMC Directive, In accordance with EU RoHS Directive

UKCA marking (see declaration of conformity)To UK RoHS instructions

Vibration resistanceTransport application test with severity level 1 to FN 942017-4 and EN 60068-2-6

Shock resistanceShock test with severity level 1 to FN 942017-5 and EN 60068-2-27

Corrosion resistance class CRC0 - No corrosion stress

LABS (PWIS) conformityVDMA24364 zone III

Storage temperature-20, 60

Relative air humidity0 - 90%

Degree of protectionIP40

Protection classIII

Ambient temperature0, 50

Note on ambient temperaturePower must be reduced by 2% per K at ambient temperatures above 30°C.

Impact energy in end positions0.003

Max. moment Mx0

Max. moment My0.4

Max. moment Mz0.4

Max. feed force Fx85

Reference value effective load, horizontal5

Reference value effective load, vertical2.5

Feed constant32

Reference service life50, 500

Maintenance intervalLifetime lubrication

Moving mass95, 282

Moving mass for 0 mm stroke83, 199

Additional moving mass per 10 mm stroke4.55, 16.61

Product weight802, 1196

Basic weight for 0 mm stroke775, 1001

Additional weight per 10 mm stroke29, 42

Number of digital logic outputs 24 V DC2

Number of digital logic inputs2

Specification logic inputBased on IEC 61131-2, type 1

Working range of logic input24

Features of logic inputConfigurable, Not galvanically isolated

IO-Link, SIO-Mode supportYes

IO-Link, Protocol versionDevice V 1.1

IO-Link, communication modeCOM3 (230.4 kBaud)

IO-Link, Port classA

IO-Link, Number of ports1

IO-Link, Process data length OUT2 bytes

IO-Link, Process data content OUTMove in 1 bit, Move out 1 bit, Quit Error 1 bit, Move intermediate 1 bit

IO-Link, Process data length IN2 bytes

IO-Link, Process data content INState Device 1 bit, State In 1 bit, State Intermediate 1 bit, State Move 1 bit, State Out 1 bit

IO-Link, Service data INSpeed 32 bit, Position 32 bit, Force 32 bit

IO-Link, Min. cycle time1 ms

IO-Link, Data storage required500

Max. cable length15 m outputs, 15 m inputs, 20 m with IO-Link® operation

Switching logic for outputsNPN (negative switching), PNP (positive switching)

Switching logic for inputsNPN (negative switching), PNP (positive switching)

IO-Link, connection technologyPlug

Logic interface, connection typePlug

Logic interface, connection technologyM12x1, A-coded according to EN 61076-2-101

Logic interface, number of pins/wires8

Logic interface, plug pattern00992264

Type of mountingWith through-hole, With female thread, With centring sleeve, With accessories

Note on materialsRoHS compliant

Material coverAnodised wrought aluminium alloy

Material housingAnodised wrought aluminium alloy

Material piston rodHigh-alloy stainless steel

Material toothed beltPolychloroprene with glass fibre

Accessories 33

Genuine accessories that can be used with the Festo EPCE-TB-45- motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
CDSU-1	IO-Link® master USB · Electrical accessories
SGS-M6	Rod eye · Piston-rod attachments
EAHF-L2-45-P-D3	Profile mounting · Cylinder mountings
NEFC-M12G8-0.3-M12G5-LK	Adapter · Electrical accessories
EAHF-L2-45-P	Profile mounting · Cylinder mountings
EAHF-L2-45-P-S	Profile mounting · Cylinder mountings
ZBH-7-B	Centring sleeve · Mounting accessories
NEBL-T12W4-E-2-N-LE4	Connecting cable · Connecting cables
NEBL-T12W4-E-5-N-LE4	Connecting cable · Connecting cables
NEBL-T12W4-E-10-N-LE4	Connecting cable · Connecting cables
NEBL-T12G4-E-2-N-LE4	Connecting cable · Connecting cables
NEBL-T12G4-E-5-N-LE4	Connecting cable · Connecting cables
NEBL-T12G4-E-10-N-LE4	Connecting cable · Connecting cables
NEBC-M12G8-E-5-N-B-LE8	Connecting cable · Connecting cables
NEBC-M12W8-E-5-N-B-LE8	Connecting cable · Connecting cables
NEBC-M12W8-E-2-N-B-LE8	Connecting cable · Connecting cables
NEBC-M12G8-E-2-N-B-LE8	Connecting cable · Connecting cables
NEBC-M12W8-E-10-N-B-LE8	Connecting cable · Connecting cables
NEBC-M12G8-E-10-N-B-LE8	Connecting cable · Connecting cables
FK-M6	Self-aligning rod coupler · Piston rod attachments
SG-M6	Rod clevis · Piston rod attachments
NEBL-T12W4-E-15-N-LE4	Connecting cable · Connecting cables
NEBC-M12G8-E-2-N-M12G8	Connecting cable · Connecting cables
NEBC-M12G8-E-5-N-M12G8	Connecting cable · Connecting cables
NEBC-M12G8-E-10-N-M12G8	Connecting cable · Connecting cables
NEBC-M12G8-E-15-N-M12G8	Connecting cable · Connecting cables
NEBC-M12W8-E-2-N-M12G8	Connecting cable · Connecting cables
NEBC-M12W8-E-5-N-M12G8	Connecting cable · Connecting cables
NEBC-M12W8-E-10-N-M12G8	Connecting cable · Connecting cables
NEBC-M12W8-E-15-N-M12G8	Connecting cable · Connecting cables
NEBL-T12G4-E-15-N-LE4	Connecting cable · Connecting cables
NEBC-M12G8-E-15-N-B-LE8	Connecting cable · Connecting cables
NEBC-M12W8-E-15-N-B-LE8	Connecting cable · Connecting cables
