How can I get a price quote for Festo EMMT-ST-87-S-RB?

You can request a fast quote for Festo EMMT-ST-87-S-RB from Yılsa Engineering. Reference part number YLSPBST6DPJAGAS. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Festo EMMT-ST-87-S-RB in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Festo EMMT-ST-87-S-RB genuine and new?

Yes. This Festo product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Festo EMMT-ST-87-S-RB?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

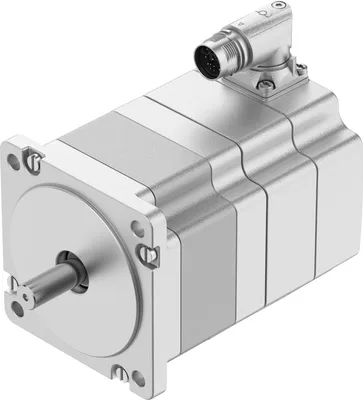

Festo EMMT-ST-87-S-RB

Stepper motor. Motor in IP65 (IP40 for motor shaft). Absolute encoder, single or multiturn (without battery). 3 flange sizes MH: 0.25 Nm ... 9.4 Nm. Optionally with holding brake. Automatic motor detection via 'electronic rating plate' with motor correction table. Can be used in applications down to -15 °C. OCP cable (one cable plug) with solid M17 plug, can be rotated 310°. Cable length up to 25 m. Fits perfectly into our comprehensive product portfolio of electromechanical actuators, motors, servo drives and control systems

FestoMFR # EMMT-ST-87-S-RBSKU # YLSPBST6DPJAGAS

Ambient temperature-15, 40

Note on ambient temperatureUp to 80°C with derating -2%/°C

Max. installation height4000

Storage temperature-20, 70

Relative air humidityNon-condensing

Conforms to standardIEC 60034

Have questions?Chat on WhatsApp

About This Product

Festo EMMT-ST-87-S-RB

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Ambient temperature-15, 40

Note on ambient temperatureUp to 80°C with derating -2%/°C

Max. installation height4000

Note on max. installation heightAs of 1,000 m: only with derating of -1.0% per 100 m

Storage temperature-20, 70

Relative air humidityNon-condensing

Conforms to standardIEC 60034

Temperature class as per EN 60034-1B

Max. winding temperature130

Rating class as per EN 60034-1S1

Motor type to EN 60034-7IM V1, IM V3

Mounting positionAny

Degree of protectionIP40

Note on degree of protectionIP40 motor shaft, IP65 for motor housing, incl. connection technology

Interface code, motor out87A

Electrical connection 1, connection typeHybrid plug

Electrical connection 1, connector systemM17x0.75

Electrical connection 1, number of connections/cores12

Electrical connection 1, connection pattern00997532

Note on materialsRoHS compliant

Corrosion resistance class CRC0 - No corrosion stress

LABS (PWIS) conformityVDMA24364 zone III

Vibration resistanceTransport application test with severity level 2 to FN 942017-4 and EN 60068-2-6

Shock resistanceShock test with severity level 2 to FN 942017-5 and EN 60068-2-27

ApprovalRCM, c UL us - Recognised (Oil)

CE mark (see declaration of conformity)To EU EMC Directive, In accordance with EU RoHS Directive

UKCA marking (see declaration of conformity)To UK RoHS instructions

Certificate issuing authorityUL E342973

Nominal operating voltage DC48

Number of pole pairs50

Motor holding torque2.4

Peak torque2.7

Max. rotational speed2200

Max. mechanical speed7000

Stepper angle for complete step1.8

Stepping angle tolerance±5%

Continuous stall current9.5

Nominal motor current7.8

Peak current12

Motor constant0.24

Voltage constant, phase15.4

Phase winding resistance0.13

Phase winding inductance0.35

Winding longitudinal inductivity Ld (phase)0.56

Winding cross inductivity Lq (phase)0.35

Electric time constant1.75

Thermal time constant35

Thermal resistance0.89

Measuring flange250 x 250 x 15 mm, steel

Total mass moment of inertia of output1.11

Product weight2890

Permissible axial shaft load60

Permissible radial shaft load220

Brake holding torque4.26

Operating voltage DC for brake24

Brake current consumption0.49

Power consumption, brake12

Brake coil resistance49.2

Brake coil inductivity110

Brake separation time44

Brake closing time110

DC brake response delay30

Max. brake no-load speed7000

Max. friction per braking process14000

Number of emergency stops per hour1

Mass moment of inertia of brake0.11

Switching cycles holding brake10 million idle actuations (without friction work!)

Accessories 55

Genuine accessories that can be used with the Festo EMMT-ST-87-S-RB motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
CMMT-ST-C8-1C-MP-S0	Servo drive · Motor controller
EMGA-80-P-G3-SST-87	Gear unit · Gear unit
EMGA-80-P-G5-SST-87	Gear unit · Gear unit
NEBM-M17G12-EH-2.5-Q7N-LE12	Motor cable · Connecting cables
NEBM-M17G12-EH-5-Q7N-LE12	Motor cable · Connecting cables
NEBM-M17G12-EH-10-Q7N-LE12	Motor cable · Connecting cables
EAMM-A-S60-87A	Axial kit · Mounting accessories
EAMM-U-86-S60-87A-177	Parallel kit · Mounting accessories
EAMM-U-86-S48-87A-177	Parallel kit · Mounting accessories
EAMM-U-86-S62-87A-177	Parallel kit · Mounting accessories
EAMM-U-86-D60-87A-102	Parallel kit · Mounting accessories
EAMM-U-86-D40-87A-102	Parallel kit · Mounting accessories
EAMM-U-86-D60-87A-102-S1	Parallel kit · Mounting accessories
EAMM-U-86-D40-87A-102-S1	Parallel kit · Mounting accessories
EAMM-U-86-S48-87A-102	Parallel kit · Mounting accessories
EAMM-U-86-S62-87A-102	Parallel kit · Mounting accessories
EAMM-U-86-D50-87A-102	Parallel kit · Mounting accessories
EAMM-U-86-D50-87A-102-S1	Parallel kit · Mounting accessories
EAMM-A-T42-87A	Axial kit · Mounting accessories
EAMM-A-M48-80G	Axial kit · Mounting accessories
EAMM-A-D60-87A-S1	Axial kit · Mounting accessories
EAMM-A-D40-87A-S1	Axial kit · Mounting accessories
EAMM-A-L38-87A-G2	Axial kit · Mounting accessories
EAMM-A-N48-87A	Axial kit · Mounting accessories
EAMM-A-L48-80G-G2	Axial kit · Mounting accessories
EAMM-A-L62-80G-G2	Axial kit · Mounting accessories
EAMM-A-N48-80G-G2	Axial kit · Mounting accessories
EAMM-A-N80-80G-G2	Axial kit · Mounting accessories
EAMM-A-S62-80G-G3	Axial kit · Mounting accessories
EAMM-A-D60-80G-G2	Axial kit · Mounting accessories
EAMM-A-D60-80G-S1-G2	Axial kit · Mounting accessories
EAMM-A-S60-80G	Axial kit · Mounting accessories
EAMM-A-D50-80G	Axial kit · Mounting accessories
EAMM-A-D50-87A	Axial kit · Mounting accessories
EAMM-A-D50-87A-S1	Axial kit · Mounting accessories
EAMM-A-D50-80G-S1	Axial kit · Mounting accessories
EAMM-A-D80-80G	Axial kit · Mounting accessories
EAMM-A-D80-80G-S1	Axial kit · Mounting accessories
EAMM-A-S48-87A-G2	Axial kit · Mounting accessories
EAMM-A-S62-87A-G2	Axial kit · Mounting accessories
EAMM-A-N38-87A	Axial kit · Mounting accessories
EAMM-A-T46-87A	Axial kit · Mounting accessories
EAMM-A-D60-87A	Axial kit · Mounting accessories
EAMM-A-D40-87A	Axial kit · Mounting accessories
EAMD-56-46-20-23X27	Coupling · Mounting accessories
EAMK-A-L62-62A	Coupling housing · Mounting accessories
EAMF-A-62A-80G	Motor flange · Mounting accessories
EAHM-L2-M6-65-L	Screw kit · Mounting accessories
EAMM-A-R38-87A	Axial kit · Mounting accessories
EAMM-A-R48-87A	Axial kit · Mounting accessories
EAMM-A-X48-87A	Axial kit · Mounting accessories
EAMM-A-P8-38A-87A	Axial kit · Mounting accessories
EMGA-80-P-G8-SST-87	Gear unit · Mounting accessories
EMGA-80-P-G12-SST-87	Gear unit · Mounting accessories
EAMM-A-L48-87A-G2	Axial kit · Mounting accessories
