How can I get a price quote for Festo EMMT-EC-40-M-ES-R1SCB?

You can request a fast quote for Festo EMMT-EC-40-M-ES-R1SCB from Yılsa Engineering. Reference part number YLSRFSCRIPJB3I. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Festo EMMT-EC-40-M-ES-R1SCB in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Festo EMMT-EC-40-M-ES-R1SCB genuine and new?

Yes. This Festo product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Festo EMMT-EC-40-M-ES-R1SCB?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

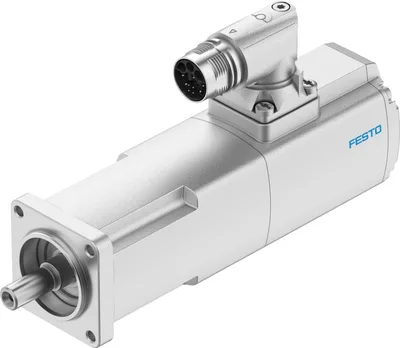

Festo EMMT-EC-40-M-ES-R1SCB

Servo motor. Technology series for demanding positioning tasks. A selection of 6 motor sizes in up to 4 lengths. Brushless, permanently magnetized synchronous servo motor. Digital absolute displacement encoder, single turn or multi-turn. Reliable, highly dynamic, extremely precise. Extremely low cogging torque – supports high synchronisation even at low rotational speeds. One motor connection (OCP: one cable plug) - one connecting cable for supply and encoder, with rotatable plug. Degree of protection IP67 (for motor housing and connection technology) and up to IP65 (on the motor shaft with shaft seal). Optionally with holding brake. Optionally with absolute safety encoder, multi-turn. Fits perfectly into our comprehensive product portfolio of electromechanical actuators, motors, servo drives and control systems

FestoMFR # EMMT-EC-40-M-ES-R1SCBSKU # YLSRFSCRIPJB3I

Ambient temperature-40, 40

Max. installation height4000

Storage temperature-40, 70

Relative air humidity0 - 90%

Conforms to standardIEC 60034

Temperature class as per EN 60034-1F

Have questions?Chat on WhatsApp

About This Product

Festo EMMT-EC-40-M-ES-R1SCB

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Ambient temperature-40, 40

Note on ambient temperatureUp to 80°C with derating of -1.5% per degree Celsius

Max. installation height4000

Note on max. installation heightAs of 1,000 m: only with derating of -1.0% per 100 m

Storage temperature-40, 70

Relative air humidity0 - 90%

Conforms to standardIEC 60034

Temperature class as per EN 60034-1F

Max. winding temperature155

Rating class as per EN 60034-1S1

Motor type to EN 60034-7IM V1, IM V3

Mounting positionAny

Degree of protectionIP40

Note on degree of protectionIP40 for motor shaft without rotary shaft seal, IP65 for motor housing, incl. connection technology, IP65 for motor shaft with rotary shaft seal

Concentricity, coaxiality, axial runout to DIN SPEC 42955N

Balance qualityG 2.5

Detent torque<1.0% of peak torque

Bearing lifetime under nominal conditions20000

Interface code, motor out40P

Electrical connection 1, connection typeHybrid plug

Electrical connection 1, connector systemM17x0.75

Electrical connection 1, number of connections/cores12

Electrical connection 1, connection pattern00997532

Pollution degree2

Note on materialsRoHS compliant

Corrosion resistance class CRC0 - No corrosion stress

LABS (PWIS) conformityVDMA24364 zone III

Vibration resistanceTransport application test with severity level 2 to FN 942017-4 and EN 60068-2-6

Shock resistanceShock test with severity level 2 to FN 942017-5 and EN 60068-2-27

ApprovalRCM, c UL us - Recognised (Oil)

CE mark (see declaration of conformity)To EU EMC Directive, In accordance with EU RoHS Directive

UKCA marking (see declaration of conformity)To UK RoHS instructions, To UK regulations for electrical equipment

Certificate issuing authorityUL E342973

Nominal operating voltage DC48

Type of winding switchStar inside

Number of pole pairs5

Standstill torque0.45

Nominal torque0.44

Peak torque1.32

Nominal rotary speed3000

Max. rotational speed5770

Max. mechanical speed15000

Angular acceleration100000

Nominal power rating of motor138

Continuous stall current5.2

Nominal motor current5.2

Peak current20

Motor constant0.085

Standstill torque constant0.1

Voltage constant, phase-to-phase5.8

Phase-phase winding resistance0.87

Phase-phase winding inductance0.89

Winding longitudinal inductivity Ld (phase)0.34

Winding cross inductivity Lq (phase)0.45

Electric time constant1.02

Thermal time constant21.4

Thermal resistance1.35

Measuring flange200 x 200 x 15 mm, steel

Total mass moment of inertia of output0.076

Product weight800

Permissible axial shaft load30

Permissible radial shaft load150

Rotor position sensorAbsolute encoder, single turn

rotor position sensor, manufacturer designationFesto iC-MHM

rotor position sensor, absolute detectable revolutions1

Rotor position encoder interfaceBiSS-C

Rotor position sensor, encoder measuring principlemagnetic

rotor position sensor, DC operating voltage5

rotor position sensor, DC operating voltage range4.5, 5.5

rotor position sensor, position values per revolution65536

Rotor position transducer resolution16

rotor position sensor, system accuracy of angle measurement-1800, 1800

Brake holding torque0.45

Operating voltage DC for brake24

Brake current consumption0.34

Power consumption, brake8.2

Brake coil resistance70.9

Brake coil inductivity146

Brake separation time28

Brake closing time41

DC brake response delay8

Max. brake no-load speed12000

Max. friction per braking process1500

Number of emergency stops per hour1

Total brake friction1.5

Mass moment of inertia of brake0.0058

Switching cycles holding brake10 million idle actuations (without friction work!)

Mean time to failure (MTTF), subcomponent190 years, rotor position encoder

Accessories 7

Genuine accessories that can be used with the Festo EMMT-EC-40-M-ES-R1SCB motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
NEBM-LX/M17-	Motor cable · Electrical accessories
NEBM-M17G12-EH-5-Q6N-LE12	Motor cable · Electrical accessories
NEBM-M17G12-EH-2.5-Q6N-LE12	Motor cable · Electrical accessories
NEBM-M17G12-EH-7.5-Q6N-LE12	Motor cable · Electrical accessories
NEAM-MF-M17	Mounting flange · Electrical accessories
EASS-RS-T-A-4P-10-26-B7	Radial shaft seal · General accessories
NEBM-M17G12-EH-10-Q6N-LE12	Motor cable · Electrical accessories
