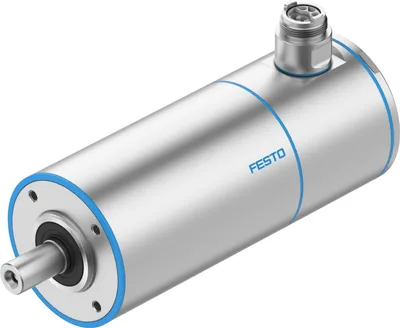

Festo EMMH-AS-68-HA-HS-S1M-T

Servo motor. Hygienic series for the most demanding environmental conditions. One Cable Plug with integrated pressure equalisation hose. Suitable for contact with food. Stainless steel housing made of 1.4404 / 316L with IP69K protection class. Easy-to-clean design for simple maintenance. Highest corrosion resistance for long service life. NSF-H1 Grease certified for hygiene-critical applications. Digital absolute measuring system, multi-turn, without battery. Four sizes, two lengths, optional holding brake. Fits perfectly into our comprehensive product portfolio of electromechanical actuators, motors, servo drives and control systems

FestoMFR # EMMH-AS-68-HA-HS-S1M-TSKU # YLSGTYEYABNNHH

Ambient temperature-30, 40

Max. installation height3000

Storage temperature-20, 70

Relative air humidity0 - 100%

Conforms to standardIEC 60034

Temperature class as per EN 60034-1F

Have questions?Chat on WhatsApp

About This Product

Festo EMMH-AS-68-HA-HS-S1M-T

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Ambient temperature-30, 40

Note on ambient temperatureUp to 80°C with derating of -1.5% per degree Celsius

Max. installation height3000

Note on max. installation heightAs of 1,000 m: only with derating of -1.0% per 100 m

Storage temperature-20, 70

Relative air humidity0 - 100%

Conforms to standardIEC 60034

Temperature class as per EN 60034-1F

Max. winding temperature155

Rating class as per EN 60034-1S1

Temperature monitoringDigital motor temperature transmission via EnDat® 2.2

Motor type to EN 60034-7IM B14, IM V18

Mounting positionAny

Degree of protectionIP69K

Concentricity, coaxiality, axial runout to DIN SPEC 42955N

Balance qualityG 2.5

Detent torque<1.0% of peak torque

Bearing lifetime under nominal conditions20000

Interface code, motor out68C

Electrical connection 1, connection typeHybrid plug

Electrical connection 1, connector systemM21x1

Electrical connection 1, number of connections/cores15

Electrical connection 1, connection pattern00997714

Pollution degree2

Note on materialsRoHS compliant

Corrosion resistance class CRC4 - Very high corrosion stress, (except laser marking)

LABS (PWIS) conformityVDMA24364 zone III

Suitable for use with foodApproved for direct contact with food

Vibration resistanceAs per EN 60068-2-6

Shock resistanceAs per EN 60068-2-29, 15 g/11 ms to EN 60068-2-27

ApprovalRCM, c UL us - Recognised (Oil)

CE mark (see declaration of conformity)To EU EMC Directive, To EU Low Voltage Directive, In accordance with EU RoHS Directive

UKCA marking (see declaration of conformity)To UK RoHS instructions, To UK regulations for electrical equipment

Certificate issuing authorityUL E342973

Nominal operating voltage DC680

Type of winding switchStar inside

Number of pole pairs5

Standstill torque1.9

Nominal torque1.15

Peak torque5.9

Nominal rotary speed3100

Max. rotational speed8350

Max. mechanical speed10000

Angular acceleration100000

Nominal power rating of motor375

Continuous stall current2.4

Nominal motor current1.6

Peak current7.5

Motor constant0.73

Standstill torque constant0.79

Voltage constant, phase-to-phase53.6

Phase-phase winding resistance4.8

Phase-phase winding inductance9.5

Winding longitudinal inductivity Ld (phase)4.3

Winding cross inductivity Lq (phase)4.8

Electric time constant2.2

Thermal time constant55

Thermal resistance1.25

Measuring flange300 x 300 x 30 mm, steel

Mass moment of inertia of rotor0.7

Total mass moment of inertia of output0.7

Product weight3300

Permissible axial shaft load68

Permissible radial shaft load340

Rotor position sensorAbsolute encoder, multi-turn

rotor position sensor, manufacturer designationEQI 1131

rotor position sensor, absolute detectable revolutions4096

Rotor position encoder interfaceEnDat 22

Rotor position sensor, encoder measuring principleInductive

rotor position sensor, DC operating voltage5

rotor position sensor, DC operating voltage range3.6, 14

rotor position sensor, position values per revolution524288

Rotor position transducer resolution19

rotor position sensor, system accuracy of angle measurement-120, 120

Mean time to failure (MTTF), subcomponent190 years, rotor position encoder

Accessories 16

Genuine accessories that can be used with the Festo EMMH-AS-68-HA-HS-S1M-T motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
NEBM-M23/40	Motor cable · Electrical accessories
NEBM-H17G12-FH-2.5-Q9N-R3LEG14	Motor cable · Electrical accessories
NEBM-H17G12-FH-5-Q9N-R3LEG14	Motor cable · Electrical accessories
NEBM-H17G12-FH-10-Q9N-R3LEG14	Motor cable · Electrical accessories
EAMM-A-C42-8-68C-S5	Axial kit · Mounting accessories
EAMM-A-C50-10-68C-S5	Axial kit · Mounting accessories
EAMM-A-C42-6-68C-S5	Axial kit · Mounting accessories
EAMM-U-60-C42-8-68C-91-S5	Parallel kit · Mounting accessories
EAMM-U-60-C50-10-68C-91-S5	Parallel kit · Mounting accessories
EAMM-U-60-C42-6-68C-91-S5	Parallel kit · Mounting accessories
EAMM-A-C50-10-79CB-S5	Axial kit · Mounting accessories
EAMM-U-86-C50-10-88C-102-S5-K	Parallel kit · Mounting accessories
EAMM-U-86-C50-10-108C-102-S5-K	Parallel kit · Mounting accessories
EAMM-U-60-C42-6-68C-91-S5-K	Parallel kit · Mounting accessories
EAMM-U-60-C42-8-68C-91-S5-K	Parallel kit · Mounting accessories
EAMM-U-60-C50-10-68C-91-S5-K	Parallel kit · Mounting accessories
