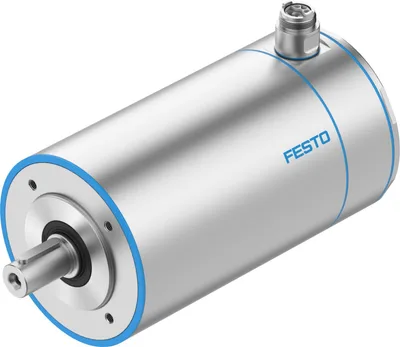

Festo EMMH-AS-108-MKA-HS-S1MB-T

Servo motor. Hygienic series for the most demanding environmental conditions. One Cable Plug with integrated pressure equalisation hose. Suitable for contact with food. Stainless steel housing made of 1.4404 / 316L with IP69K protection class. Easy-to-clean design for simple maintenance. Highest corrosion resistance for long service life. NSF-H1 Grease certified for hygiene-critical applications. Digital absolute measuring system, multi-turn, without battery. Four sizes, two lengths, optional holding brake. Fits perfectly into our comprehensive product portfolio of electromechanical actuators, motors, servo drives and control systems

FestoMFR # EMMH-AS-108-MKA-HS-S1MB-TSKU # YLSPLXGQNZNJNVZ

Ambient temperature-30, 40

Note on ambient temperatureUp to 80°C with derating -2%/°C

Max. installation height3000

Storage temperature-20, 70

Relative air humidity0 - 100%

Conforms to standardIEC 60034

Have questions?Chat on WhatsApp

About This Product

Festo EMMH-AS-108-MKA-HS-S1MB-T

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Ambient temperature-30, 40

Note on ambient temperatureUp to 80°C with derating -2%/°C

Max. installation height3000

Note on max. installation heightAs of 1,000 m: only with derating of -1.0% per 100 m

Storage temperature-20, 70

Relative air humidity0 - 100%

Conforms to standardIEC 60034

Temperature class as per EN 60034-1F

Max. winding temperature155

Rating class as per EN 60034-1S1

Temperature monitoringDigital motor temperature transmission via EnDat® 2.2

Motor type to EN 60034-7IM B14, IM V18

Mounting positionAny

Degree of protectionIP69K

Concentricity, coaxiality, axial runout to DIN SPEC 42955N

Balance qualityG 2.5

Detent torque<1.0% of peak torque

Bearing lifetime under nominal conditions20000

Interface code, motor out108C

Electrical connection 1, connection typeHybrid plug

Electrical connection 1, connector systemM21x1

Electrical connection 1, number of connections/cores15

Electrical connection 1, connection pattern00997714

Pollution degree2

Note on materialsRoHS compliant

Corrosion resistance class CRC4 - Very high corrosion stress, (except laser marking)

LABS (PWIS) conformityVDMA24364 zone III

Suitable for use with foodApproved for direct contact with food

Vibration resistanceAs per EN 60068-2-6

Shock resistanceAs per EN 60068-2-29, 15 g/11 ms to EN 60068-2-27

ApprovalRCM, c UL us - Recognised (Oil)

CE mark (see declaration of conformity)To EU EMC Directive, To EU Low Voltage Directive, In accordance with EU RoHS Directive

UKCA marking (see declaration of conformity)To UK RoHS instructions, To UK regulations for electrical equipment

Certificate issuing authorityUL E342973

Nominal operating voltage DC680

Type of winding switchStar inside

Number of pole pairs5

Standstill torque5.9

Nominal torque3.85

Peak torque19

Nominal rotary speed2000

Max. rotational speed7000

Max. mechanical speed7000

Angular acceleration100000

Nominal power rating of motor810

Continuous stall current6.5

Nominal motor current4.4

Peak current22.8

Motor constant0.89

Standstill torque constant0.92

Voltage constant, phase-to-phase59.5

Phase-phase winding resistance1.03

Phase-phase winding inductance5.3

Winding longitudinal inductivity Ld (phase)2.4

Winding cross inductivity Lq (phase)2.7

Electric time constant5.2

Thermal time constant82

Thermal resistance0.77

Measuring flange300 x 300 x 30 mm, steel

Mass moment of inertia of rotor3.57

Total mass moment of inertia of output4.3

Product weight8900

Permissible axial shaft load137

Permissible radial shaft load685

Rotor position sensorAbsolute encoder, multi-turn

rotor position sensor, manufacturer designationEQI 1331

rotor position sensor, absolute detectable revolutions4096

Rotor position encoder interfaceEnDat 22

Rotor position sensor, encoder measuring principleInductive

rotor position sensor, DC operating voltage5

rotor position sensor, DC operating voltage range3.6, 14

rotor position sensor, position values per revolution524288

Rotor position transducer resolution19

rotor position sensor, system accuracy of angle measurement-65, 65

Brake holding torque11

Operating voltage DC for brake24

Brake current consumption0.57

Power consumption, brake13.6

Brake coil resistance42.1

Brake coil inductivity2600

Brake separation time60

Brake closing time58

DC brake response delay10

Max. brake no-load speed10000

Max. friction per braking process910

Number of emergency stops per hour1

Total brake friction910

Mass moment of inertia of brake0.73

Switching cycles holding brake10 million idle actuations (without friction work!)

Mean time to failure (MTTF), subcomponent190 years, rotor position encoder

Energy efficiencyENEFF (CN) / Class 2

Accessories 13

Genuine accessories that can be used with the Festo EMMH-AS-108-MKA-HS-S1MB-T motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
NEBM-M23/40	Motor cable · Electrical accessories
NEBM-H17G12-FH-2.5-Q9N-R3LEG14	Motor cable · Electrical accessories
NEBM-H17G12-FH-5-Q9N-R3LEG14	Motor cable · Electrical accessories
NEBM-H17G12-FH-10-Q9N-R3LEG14	Motor cable · Electrical accessories
EAMM-A-C50-10-108C-S5	Axial kit · Mounting accessories
EAMM-A-C68-16-108C-S5	Axial kit · Mounting accessories
EAMM-A-C80-19-108C-S5	Axial kit · Mounting accessories
EAMM-U-86-C50-10-108C-102-S5	Parallel kit · Mounting accessories
EAMM-U-110-C68-16-108C-120-S5	Parallel kit · Mounting accessories
EAMM-U-110-C80-19-108C-120-S5	Parallel kit · Mounting accessories
EAMM-A-C50-10-110CA-S5	Axial kit · Mounting accessories
EAMM-U-110-C68-16-108C-120-S5-K	Parallel kit · Mounting accessories
EAMM-U-110-C80-19-108C-120-S5-K	Parallel kit · Mounting accessories
