How can I get a price quote for Festo ELGG-TB-...-35- -?

You can request a fast quote for Festo ELGG-TB-...-35- - from Yılsa Engineering. Reference part number YLS9SXDK8YWPF04. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Festo ELGG-TB-...-35- - in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Festo ELGG-TB-...-35- - genuine and new?

Yes. This Festo product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Festo ELGG-TB-...-35- -?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

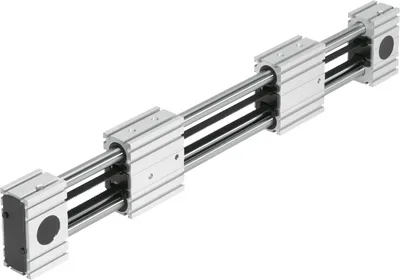

Festo ELGG-TB-...-35- -

Toothed belt axis. Toothed belt axis with two opposing slides. With low-cost plain bearing and precise ball bearing guide. Optional central support improves the rigidity. Motor can be mounted on 4 sides

FestoMFR # ELGG-TB-...-35- -SKU # YLS9SXDK8YWPF04

Effective diameter of drive pinion18.46

Working stroke50, 700

Size35

Toothed-belt stretch0.094

Toothed-belt pitch2

Mounting positionAny

Have questions?Chat on WhatsApp

About This Product

Festo ELGG-TB-...-35- -

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Effective diameter of drive pinion18.46

Working stroke50, 700

Size35

Toothed-belt stretch0.094

Toothed-belt pitch2

Mounting positionAny

GuidePlain-bearing guide, Recirculating ball bearing guide

DesignWith toothed belt

Type of motorStepper motor, Servo motor

Max. acceleration50

Max. speed1, 3

Repetition accuracy±0.1 mm

Duty cycle100%

LABS (PWIS) conformityVDMA24364 zone III

Degree of protectionIP20

Ambient temperature-10, 50

2nd moment of area Iy3770

2nd moment of area Iz4190

Max. drive torque0.46

Max. force Fy50

Max. force Fz50

Max. idle running transfer resistance10.8

Max. feed force Fx50

Frictional torque independent of load0.1

Mass moment of inertia JH per metre of stroke0.0026

Mass moment of inertia JL per kg of working load0.85

Feed constant58

Reference service life2500

Additional moving mass per 10 mm stroke0.31

Basic weight for 0 mm stroke1870

Additional weight per 10 mm stroke49

Material profileWrought aluminium alloy, anodised

Note on materialsRoHS compliant

Material drive coverWrought aluminium alloy, anodised

Material pulleysHigh-alloy stainless steel

Material slideWrought aluminium alloy, anodised

Material toothed belt clamping pieceBeryllium copper

Material toothed beltPolychloroprene with glass filament and nylon coating

Accessories 40

Genuine accessories that can be used with the Festo ELGG-TB-...-35- - motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
EAPM-L4-SLS	Switch lug · Position sensing
EAPM-L4-SHS	Sensor bracket · Position sensing
ABAN-3-1 M3-4-M-P1	Slot nut · Mounting accessories
MUE-50	Profile mounting · Mounting accessories
SIES-8M-PO-24V-K-0,3-M8D	Proximity sensor · Position sensing
SIES-8M-NO-24V-K-7,5-OE	Proximity sensor · Position sensing
SIES-8M-PO-24V-K-7,5-OE	Proximity sensor · Position sensing
SIES-8M-NO-24V-K-0,3-M8D	Proximity sensor · Position sensing
NEBA-M8W3-U-5-N-LE3	Connecting cable · Connecting cables
NEBA-M8W3-U-2.5-N-LE3	Connecting cable · Connecting cables
EAMM-A-R27-57A	Axial kit · Mounting accessories
ZBH-7-B	Centring sleeve · Mounting accessories
NEBA-M8G3-U-2.5-N-LE3	Connecting cable · Connecting cables
NEBA-M8G3-U-2.5-N-M8G3	Connecting cable · Connecting cables
EMMT-ST-57-M-RS	Stepper motor · Motors
NEBA-M8G3-U-5-N-M8G3	Connecting cable · Connecting cables
NEBA-M8G3-U-5-N-LE3	Connecting cable · Connecting cables
SIES-8M-PS-24V-K-7,5-OE	Proximity sensor · Cylinder sensors for direct mounting
SIES-8M-PS-24V-K-0,3-M8D	Proximity sensor · Cylinder sensors for direct mounting
SIES-8M-PS-24V-K-2,5-M8D	Proximity sensor · Cylinder sensors for direct mounting
SIES-8M-PS-24V-K-5,0-M8D	Proximity sensor · Cylinder sensors for direct mounting
SIES-8M-PS-24V-K-10-M8D	Proximity sensor · Cylinder sensors for direct mounting
SIES-8M-PO-24V-K-2,5-M8D	Proximity sensor · Cylinder sensors for direct mounting
SIES-8M-PO-24V-K-5,0-M8D	Proximity sensor · Cylinder sensors for direct mounting
SIES-8M-PO-24V-K-10-M8D	Proximity sensor · Cylinder sensors for direct mounting
SIES-8M-NS-24V-K-7,5-OE	Proximity sensor · Cylinder sensors for direct mounting
SIES-8M-NS-24V-K-0,3-M8D	Proximity sensor · Cylinder sensors for direct mounting
SIES-8M-NS-24V-K-2,5-M8D	Proximity sensor · Cylinder sensors for direct mounting
SIES-8M-NS-24V-K-5,0-M8D	Proximity sensor · Cylinder sensors for direct mounting
SIES-8M-NS-24V-K-10-M8D	Proximity sensor · Cylinder sensors for direct mounting
SIES-8M-NO-24V-K-2,5-M8D	Proximity sensor · Cylinder sensors for direct mounting
SIES-8M-NO-24V-K-5,0-M8D	Proximity sensor · Cylinder sensors for direct mounting
SIES-8M-NO-24V-K-10-M8D	Proximity sensor · Cylinder sensors for direct mounting
EAMD-19-15-9-8X10	Coupling · Mounting accessories
EAMB-16-7-8X15-8X10	Drive shaft adapter · Mounting accessories
EAMF-A-38A-55A	Motor flange · Mounting accessories
EAMF-A-48B-55A	Motor flange · Mounting accessories
EAMF-A-38A-57A	Motor flange · Mounting accessories
EAMD-16-15-6.35-8X10	Coupling · Mounting accessories
EAMM-A-R27-40G	Axial kit · Mounting accessories
