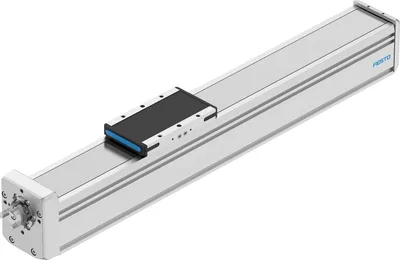

Festo ELGD-BS-KF-80- -

Ball screw axis. For applications requiring precision. High reliability and long service life. For high loads. Excellent rigidity and load capacity of the guide for greater load in the same installation space. Fits perfectly into our comprehensive product portfolio of electromechanical actuators, motors, servo drives and control systems. Sustainable thanks to extended life cycle and easier repairs

FestoMFR # ELGD-BS-KF-80- -SKU # YLSET5TM9HQKCOV

Working stroke50, 2000

Size80

Stroke reserve0

Ball screw reversing backlash±0.02 mm

Spindle diameter16

Spindle pitch5, 20

Have questions?Chat on WhatsApp

About This Product

Festo ELGD-BS-KF-80- -

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Working stroke50, 2000

Size80

Stroke reserve0

Ball screw reversing backlash±0.02 mm

Spindle diameter16

Spindle pitch5, 20

Mounting positionAny

GuideRecirculating ball bearing guide

DesignWith ball screw

Type of motorStepper motor, Servo motor

Spindle typeBall screw

Symbol00991211

Functional principle of measuring systemIncremental

Position detectionFor inductive sensors

Max. acceleration15

Max. rotational speed1515, 5333

Max. speed0.13, 1.67

Repetition accuracy±0.01 mm

Duty cycle100%

LABS (PWIS) conformityVDMA24364-C1-L

Suitability for the production of Li-ion batteriesSuitable for battery production with reduced Cu/Zn/Ni values (F1a)

Cleanroom suitability, measured according to ISO 14644-14Class 4 according to ISO 14644-1 (with vacuum extraction), Class 7 according to ISO 14644-1

Storage temperature-20, 60

Suitable for use with foodSee supplementary material information

Degree of protectionIP40

Ambient temperature0, 60

Impact energy in end positions0.002

Note on the impact energy in the end positionsAt maximum homing speed of 0.01 m/s

2nd moment of area Iy1213000

2nd moment of area Iz2052000

Idle torque at vmax0.172, 0.218

Idle torque at vmin0.065, 0.075

Max. force Fy3906, 8236

Max. force Fz3913, 8256

Max. force Fy total axis2500, 4800

Max. force Fz total axis2500, 4000

Fy at theoretical life value of 100 km (only guide consideration)17576, 35153

Fz at theoretical life value of 100 km (only guide consideration)17576, 35153

Max. moment Mx95, 180

Max. moment My42, 390

Max. moment Mz42, 390

Max. moment Mx total axis100, 160

Max. moment My total axis42, 335

Max. moment Mz total axis42, 275

Mx at theoretical life value of 100 km (only guide consideration)422, 844

My at theoretical life value of 100 km (only guide consideration)162, 1356

Mz at theoretical life value of 100 km (only guide consideration)162, 1356

Distance between slide surface and guide centre62

Max. radial force at drive shaft500

Max. feed force Fx2650

Torsional mass moment of inertia It405000

Mass moment of inertia JH per metre of stroke0.39016

Mass moment of inertia JL per kg of working load0.00633, 0.101

Mass moment of inertia JO0.10619, 0.13622

Feed constant5, 20

Reference service life5000

Maintenance intervalLifetime lubrication

Moving mass1014, 1708

Product weight3597, 22533

Basic weight for 0 mm stroke3147, 4533

Additional weight per 10 mm stroke90

Dynamic deflection (moving load)0.05% of the axis length, max. 0.5 mm

Static deflection (load in standstill)0.1% of the axis length

Type of mountingMounting for front end use, Direct mounting via thread

Interface code, actuatorT46

Material end capAluminium gravity die-cast, painted

Material profileAnodised wrought aluminium alloy

Note on materialsRoHS compliant

Material cover tapeHigh-alloy stainless steel

Material drive coverAluminium gravity die-cast, painted

Material guide slideSteel

Material guide railSteel

Material slideWrought aluminium alloy

Material ball screw nutSteel

Material spindleSteel

Accessories 70

Genuine accessories that can be used with the Festo ELGD-BS-KF-80- - motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
SMBK-8	Clip · Mounting accessories
ABP-5-S1	Slot cover · Mounting accessories
EAMM-U-87-T46-60P-114	Parallel kit · Mounting accessories
EAMM-A-T46-60P	Axial kit · Mounting accessories
EAMM-A-T46-57A	Axial kit · Mounting accessories
EAHF-E24-60-P-S	Profile mounting · Mounting accessories
EAHF-E24-60-P-D6	Profile mounting · Mounting accessories
EAHF-E24-60-P	Profile mounting · Mounting accessories
SIES-8M-PO-24V-K-7,5-OE	Proximity sensor · Position sensing
SIES-8M-PO-24V-K-0,3-M8D	Proximity sensor · Position sensing
SIES-8M-NO-24V-K-7,5-OE	Proximity sensor · Position sensing
SIES-8M-NO-24V-K-0,3-M8D	Proximity sensor · Position sensing
EAPM-E24-60-SLS	Switch lug · Position sensing
EMMT-AS-60-	Servo motor · Motors
EAMM-A-T46-84AA	Axial kit · Mounting accessories
EAMM-A-T46-82AA	Axial kit · Mounting accessories
EAMM-U-87-T46-82AA-147	Parallel kit · Mounting accessories
EAMM-U-87-T46-84AA-147	Parallel kit · Mounting accessories
EAMM-A-T46-87A	Axial kit · Mounting accessories
EAMM-A-T46-80P	Axial kit · Mounting accessories
EAMM-A-T46-100A	Axial kit · Mounting accessories
EAMM-U-87-T46-87A-114	Parallel kit · Mounting accessories
EAMM-U-87-T46-80P-114	Parallel kit · Mounting accessories
NEBA-M8G3-U-2.5-N-LE3	Connecting cable · Connecting cables
NEBA-M8G3-U-5-N-LE3	Connecting cable · Connecting cables
NEBA-M8G3-U-10-N-LE3	Connecting cable · Connecting cables
NEBA-M8W3-U-2.5-N-LE3	Connecting cable · Connecting cables
NEBA-M8W3-U-5-N-LE3	Connecting cable · Connecting cables
NEBA-M8W3-U-10-N-LE3	Connecting cable · Connecting cables
NEBA-M8W3P-U-2.5-N-LE3	Connecting cable · Connecting cables
NEBA-M8W3P-U-5-N-LE3	Connecting cable · Connecting cables
NEBA-M8W3N-U-2.5-N-LE3	Connecting cable · Connecting cables
NEBA-M8W3N-U-5-N-LE3	Connecting cable · Connecting cables
NEBA-M8G3-U-0.5-N-M12G3	Connecting cable · Connecting cables
NEBA-M8G3-U-1-N-M12G3	Connecting cable · Connecting cables
NEBA-M8G3-U-0.5-N-M8G3	Connecting cable · Connecting cables
NEBA-M8G3-U-1-N-M8G3	Connecting cable · Connecting cables
NEBA-M8G3-U-1.5-N-M8G3	Connecting cable · Connecting cables
NEBA-M8G3-U-2.5-N-M8G3	Connecting cable · Connecting cables
NEBA-M8G3-U-5-N-M8G3	Connecting cable · Connecting cables
NEBA-M8G3-U-10-N-M8G3	Connecting cable · Connecting cables
EAMM-A-T46-80PA	Axial kit · Mounting accessories
EAMM-A-T46-70A	Axial kit · Mounting accessories
EAMM-A-T46-70AA	Axial kit · Mounting accessories
EAMM-A-T46-80PB	Axial kit · Mounting accessories
EAMM-A-T46-85AA	Axial kit · Mounting accessories
EAMM-U-87-T46-80PB-114	Parallel kit · Mounting accessories
EAMM-U-87-T46-85AA-114	Parallel kit · Mounting accessories
EAMM-U-87-T46-60P-147	Parallel kit · Mounting accessories
EAMM-U-87-T46-60R-147	Parallel kit · Mounting accessories
EAMM-U-87-T46-60RA-147	Parallel kit · Mounting accessories
EAMM-U-87-T46-70A-147	Parallel kit · Mounting accessories
EAMM-U-87-T46-70AA-147	Parallel kit · Mounting accessories
EAMM-U-87-T46-80P-147	Parallel kit · Mounting accessories
EAMM-U-87-T46-80PB-147	Parallel kit · Mounting accessories
EAMM-U-87-T46-87A-147	Parallel kit · Mounting accessories
EAMM-U-87-T46-60R-114	Parallel kit · Mounting accessories
EAMM-U-87-T46-60RA-114	Parallel kit · Mounting accessories
EAMM-A-T46-60R	Axial kit · Mounting accessories
EAHF-E24-60-P-B4	Profile mounting · Mounting accessories
EAHF-E24-60-P-B2	Profile mounting · Mounting accessories
EAHM-E24-AP-80	Mounting kit · Mounting accessories
EHAM-AK-E24-80-E24-80-MR-S	Angle kit · Mounting accessories
EHAM-AK-E24-80-E24-60-ML-L	Angle kit · Mounting accessories
EHAM-AK-E24-80-E24-60-MR-L	Angle kit · Mounting accessories
EHAM-AK-E24-80-E24-80-ML-S	Angle kit · Mounting accessories
EMMT-ST-57-M-RS	Stepper motor · Motors
EMMT-ST-87-M-RS	Stepper motor · Motors
EAHF-E24-60-P-D7	Profile mounting · Mounting accessories
EMMT-AS-80-	Servo motor · Motors
