How can I get a price quote for Festo ELFD-KF-80- -?

You can request a fast quote for Festo ELFD-KF-80- - from Yılsa Engineering. Reference part number YLSX5FTPQXMUUNF. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Festo ELFD-KF-80- - in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Festo ELFD-KF-80- - genuine and new?

Yes. This Festo product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Festo ELFD-KF-80- -?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

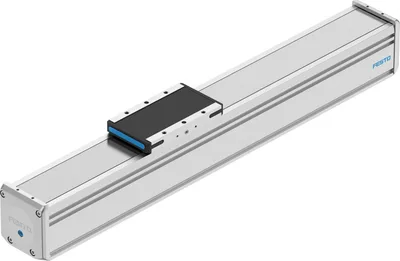

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

Festo ELFD-KF-80- -

Guide axis. For ball screw/toothed belt axes with recirculating ball bearing guide ELGD-BS-KF/ELGD-TB-KF (drive axes). Driveless linear guide unit with guide and freely movable slide unit. For supporting forces and torques in multi-axis applications. High torsional resistance. Reduced vibrations with dynamic loads

FestoMFR # ELFD-KF-80- -SKU # YLSX5FTPQXMUUNF

Working stroke50, 5000

Size80

Stroke reserve4.5

Mounting positionAny

GuideRecirculating ball bearing guide

DesignGuidance

Have questions?Chat on WhatsApp

About This Product

Festo ELFD-KF-80- -

Genuine, certified Festo product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Working stroke50, 5000

Size80

Stroke reserve4.5

Mounting positionAny

GuideRecirculating ball bearing guide

DesignGuidance

Symbol00992984

Max. acceleration50, 100

Max. speed3, 10

Duty cycle100%

Corrosion resistance class CRC0 - No corrosion stress

LABS (PWIS) conformityVDMA24364-C1-L

Suitability for the production of Li-ion batteriesSuitable for battery production with reduced Cu/Zn/Ni values (F1a)

Cleanroom suitability, measured according to ISO 14644-14Class 4 according to ISO 14644-1 (with vacuum extraction), Class 6 according to ISO 14644-1

Storage temperature-20, 60

Degree of protectionIP40

Ambient temperature0, 60

Impact energy in end positions2.5E-4

2nd moment of area Iy1213000

2nd moment of area Iz2052000

Max. force Fy4200, 8433

Max. force Fz4200, 8400

Max. moment Mx106, 200

Max. moment My42, 390

Max. moment Mz42, 390

Max. force Fy total axis2800, 5500

Max. force Fz total axis3500, 5600

Max. moment Mx total axis106, 200

Max. moment My total axis80, 356

Max. moment Mz total axis79, 383

Torsional mass moment of inertia It405000

Displacement force6

Reference service life5000

Maintenance intervalLifetime lubrication

Fy at theoretical life value of 100 km (only guide consideration)17576, 35153

Fz at theoretical life value of 100 km (only guide consideration)17576, 35153

Mx at theoretical life value of 100 km (only guide consideration)422, 844

My at theoretical life value of 100 km (only guide consideration)162, 1356

Mz at theoretical life value of 100 km (only guide consideration)162, 1356

Moving mass912, 1615

Product weight2725, 68245

Basic weight for 0 mm stroke2345, 3645

Additional weight per 10 mm stroke76

Material end capAluminium gravity die-cast, painted

Material profileAnodised wrought aluminium alloy

Note on materialsRoHS compliant

Material cover tapeHigh-alloy stainless steel

Material coverAluminium gravity die-cast, painted

Material guide slideSteel

Material guide railSteel

Material slideWrought aluminium alloy

Accessories 34

Genuine accessories that can be used with the Festo ELFD-KF-80- - motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.

Part no	Description	Compatible motors
EAHF-E24-60-P-D7	Profile mounting · Mounting accessories
EAHM-E24-AK-60	Angle kit · Mounting accessories
EAHM-E24-AK-80	Angle kit · Mounting accessories
SIEN-M8B-NS-K-L	Proximity sensor · Cylinder sensors for direct mounting
SIEN-M8B-NS-S-L	Proximity sensor · Cylinder sensors for direct mounting
SIEN-M8B-PS-K-L	Proximity sensor · Cylinder sensors for direct mounting
SIEN-M8B-PS-S-L	Proximity sensor · Cylinder sensors for direct mounting
SIEN-M8B-NO-K-L	Proximity sensor · Cylinder sensors for direct mounting
SIEN-M8B-NO-S-L	Proximity sensor · Cylinder sensors for direct mounting
SIEN-M8B-PO-K-L	Proximity sensor · Cylinder sensors for direct mounting
SIEN-M8B-PO-S-L	Proximity sensor · Cylinder sensors for direct mounting
SMBK-8	Clip · General accessories
SIES-8M-PS-24V-K-7,5-OE	Proximity sensor · Cylinder sensors for direct mounting
SIES-8M-PS-24V-K-0,3-M8D	Proximity sensor · Cylinder sensors for direct mounting
SIES-8M-PO-24V-K-7,5-OE	Proximity sensor · Cylinder sensors for direct mounting
SIES-8M-PO-24V-K-0,3-M8D	Proximity sensor · Cylinder sensors for direct mounting
SIES-8M-NS-24V-K-7,5-OE	Proximity sensor · Cylinder sensors for direct mounting
SIES-8M-NS-24V-K-0,3-M8D	Proximity sensor · Cylinder sensors for direct mounting
SIES-8M-NO-24V-K-7,5-OE	Proximity sensor · Cylinder sensors for direct mounting
SIES-8M-NO-24V-K-0,3-M8D	Proximity sensor · Cylinder sensors for direct mounting
ABP-5-S1	Slot cover · General accessories
EAPM-E24-60-SLE	Switch lug · Mounting accessories
EAPM-E24-60-SLS	Switch lug · Mounting accessories
EAPM-E24-60-SHO	Sensor bracket · Mounting accessories
EAPM-E24-60-SHE	Sensor bracket · Mounting accessories
EAHF-E24-60-P-S	Profile mounting · Mounting accessories
EAHF-E24-60-P-D4	Profile mounting · Mounting accessories
EAHF-E24-60-P-D6	Profile mounting · Mounting accessories
EAHF-E24-60-P-D5	Profile mounting · Mounting accessories
EAHF-E24-60-P	Profile mounting · Mounting accessories
EAHF-E24-60-P-B4	Profile mounting · Mounting accessories
EAHF-E24-60-P-B2	Profile mounting · Mounting accessories
EAHM-E24-AP-60	Mounting kit · Mounting accessories
EAHM-E24-AP-80	Mounting kit · Mounting accessories
